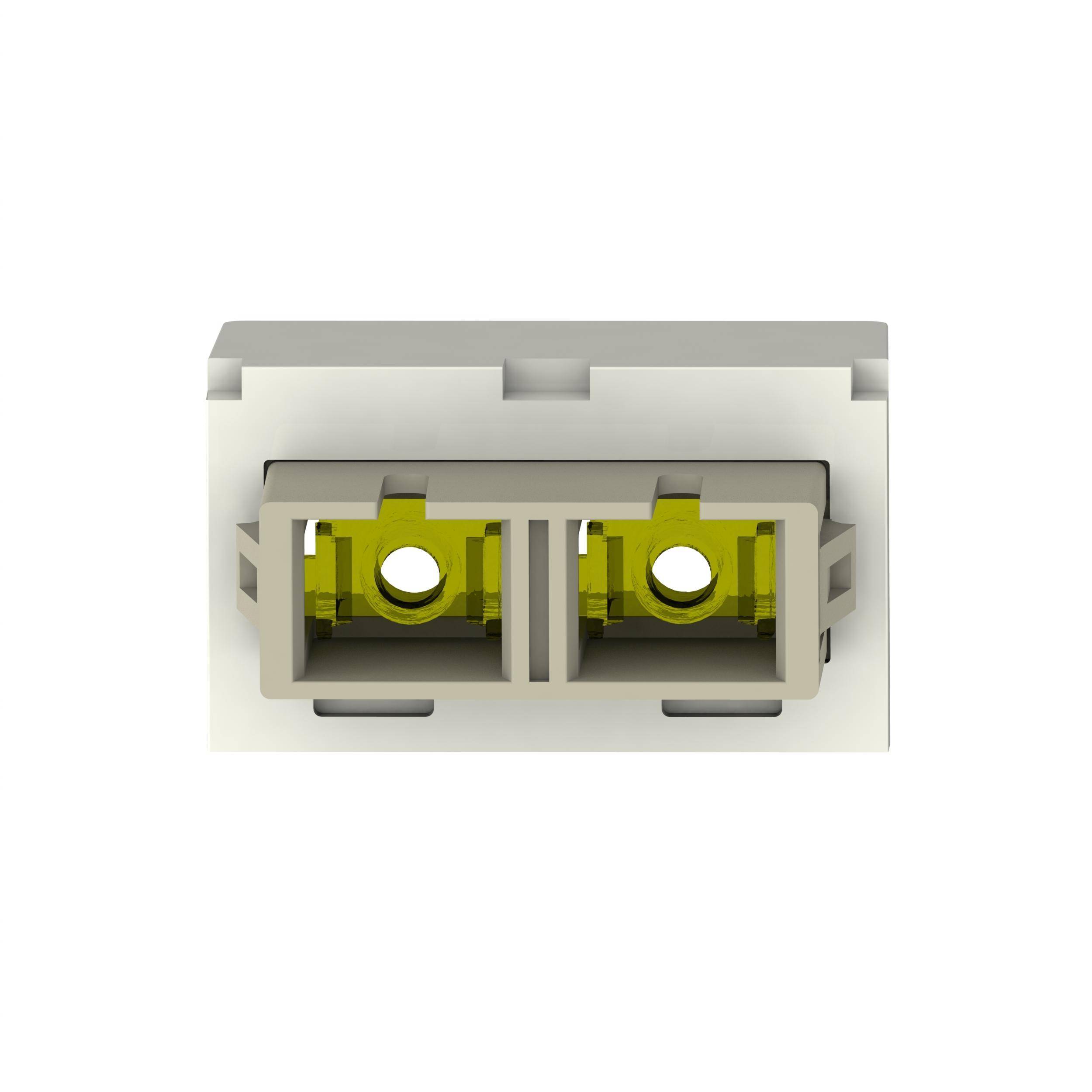

Panduit® Mini-Com® CMDEISCZIW Fiber Optic Adapter Module With Adapter, Zirconia Ceramic Split Sleeve, SC Duplex Connector
Panduit® Mini-Com® CMDEISCZIW Fiber Optic Adapter Module With Adapter, Zirconia Ceramic Split Sleeve, SC Duplex Connector
Panduit® Mini-Com® CMDEISCZIW Fiber Optic Adapter Module With Adapter, Zirconia Ceramic Split Sleeve, SC Duplex Connector
Panduit® Mini-Com® CMDEISCZIW Fiber Optic Adapter Module With Adapter, Zirconia Ceramic Split Sleeve, SC Duplex Connector
Share Share Print Print
Panduit

Panduit® Mini-Com® CMDEISCZIW Fiber Optic Adapter Module With Adapter, Zirconia Ceramic Split Sleeve, SC Duplex Connector

Short Description

SC fiber optic adapters with integrated panel retention clips are TIA/EIA-604 FOCIS-3 compliant. Each SC simplex adapter shall connect one SC connector pair in one Mini-Com® space. Each SC duplex adapter shall connect two SC connector pairs in two Mini-Com® spaces. SC adapters and adapter Mini-Com® shall include phosphor bronze split sleeves for multi-mode applications or zirconia ceramic split sleeves for singlemode applications.

Panduit® Mini-Com® Fiber Optic Adapter Module, SC Duplex Connector, For Use With: Mini-Com® Modular Patch Panels, Faceplates, Surface Mount Boxes, Plastic, Off White
MFG #: CMDEISCZIW

EECO #: PNCMDEISCZIW

Brand: Panduit
UPC #: 074983845279
Attributes
Features
Documents
Product Information
Attributes
Color
Off-White
UNSPSC
43223301
Material
Plastic
Application
For LANs, public networks, storage area networks and fiber to the desk applications
Connector Type
SC Duplex
Suitable For Use With
Mini-Com® Modular Patch Panels, Faceplates, Surface Mount Boxes
Features
  • Integrated panel retention clips no metal clips to become bent, damaged or lost, clips automatically adjust for FOCIS-3 compliant panel thickness variations for improved mounting
  • High glass transition temperature latch material maintains latch integrity/geometry in high temperature environments for improved reliability
  • Improved adapter protective cap design maximum protection from contamination, protective cap fully surrounds split sleeve opening
  • Short flange design improved modularity and higher density usage
  • Q.C. number and split sleeve material laser marked on every adapter assures 100% traceability, quick and easy identification of split sleeve material
IDW_DOCUMENT_005855d3e758e858e91f3ca09a6c14ee1dd94932c27d94a18cbb8c9b4d3f5a4f
Panduit_CMDBUSCZEI_Installation_Manual
Panduit_CMDEISCZBL_Full_Engineering_Drawing
Panduit_CMSBUSCZBU_Specification_Sheet
