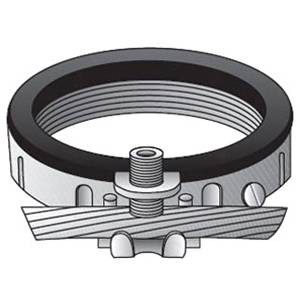

4", Emerson Electric Co. BLG-4124 Copper Plus™, Lay-In-Lug™ Conduit Grounding Bushing, 6 AWG Solid/Stranded to 4/0 AWG Stranded Copper/Aluminum
Share Share Print Print
O-Z Gedney

4", Emerson Electric Co. BLG-4124 Copper Plus™, Lay-In-Lug™ Conduit Grounding Bushing, 6 AWG Solid/Stranded to 4/0 AWG Stranded Copper/Aluminum

Short Description

4", 6 AWG Solid/Stranded to 4/0 AWG Stranded Copper/Aluminum, Zinc Plated Malleable Iron Body, Stainless Steel Screw, Phenolic Insulated Throat, Lay-In Lug, Threaded, Set Screw, Conduit Grounding Bushing

Conduit Grounding Bushing; Type Threaded, Set Screw; Trade Size 4 Inch; Wire Size 6 AWG Solid/Stranded to 4/0 AWG Stranded; Lug Type Lay-In, Tin Plated Copper Saddle; Conductor Material Copper/Aluminum; Throat Type Phenolic Insulated; Diameter 5 Inch; Height 1-1/8 Inch; Material Zinc Plated Malleable Iron (Body), Stainless Steel (Screw); Approval UL 467/514B, CSA C22.2; Used On Rigid/IMC Conduit; Applicable Standard W-F-408E, NEMA FB-1

MFG #: BLG-4124

EECO #: OZBLG4124

Brand: O-Z Gedney
UPC #: 783126042696
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39131700
Used On
Rigid/IMC Conduit
Approval
UL 467/514B, CSA C22.2
Material
Zinc Plated Malleable Iron (Body), Stainless Steel (Screw)
Wire Size
6 AWG Solid/Stranded to 4/0 AWG Stranded
Trade Size
4 Inch
Throat Type
Phenolic Insulated
Conductor Material
Copper/Aluminum
Type
Threaded, Set Screw
Height
1-1/8 Inch
Diameter
5 Inch
Lug Type
Lay-In, Tin Plated Copper Saddle
Features
  • Allows Easy Insertion of Grounding Conductor for Thru or End Connection
  • Low Grounding Connector Profile
  • Spring Action Design Maintains Positive Firm Contact on Grounding Conductor
  • Set Screw Provides Fixed Alignment and Positive Ground Continuity
  • Phenolic Insulation, with 150 Deg C UL Rating, Molded on Over Metallic Conduit Stop will Not Shatter or Shrink at Sub-Zero Temperatures
OZGDNYE00201_DA2
Qty Unit price
Ea
1 $82.77

Slqt
1 $82.77

Stpk
1 $413.85

Unit
1 $82.77
