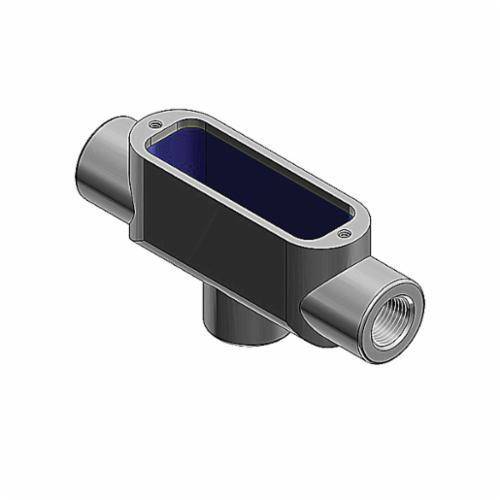

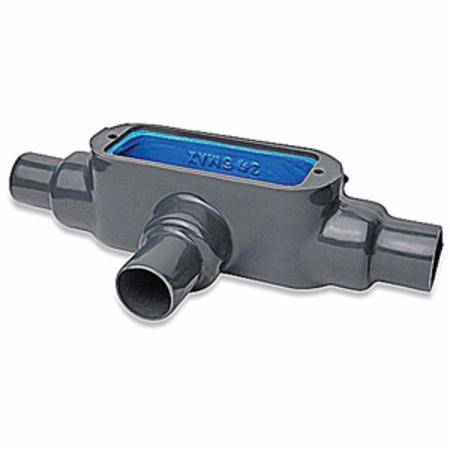

Ocal® OCAL-BLUE® TB28-4X-G Type TB Conduit Body, 3/4 in Hub, Form 8 Form, 9 cu-in Capacity, Iron, PVC Coated

Short Description

With outstanding performance in corrosive environments, Ocal® PVC coated conduit and fittings extend the life of your electrical system for many years beyond the lifespan of standard rigid conduit systems. The Ocal® UL verified 4X conduit body, including covers with a leakproof O-ring seal, meets the latest NEMA standard for both corrosion and damage from liquids.

Ocal® OCAL-BLUE® Conduit Body, Type TB, 3/4 in Hub, 3 Hubs, 9 cu-in Capacity, Form 8 Form, NEMA 4X Enclosure, Thread Connection, Iron, PVC Coated, Dark Gray, 6-9/32 in L x 2-7/8 in W x 1-3/16 in H Dimensions

MFG #: TB28-4X-G

EECO #: OCTB284XG

Brand: Ocal
UPC #: 704508025908
Attributes
Features
Documents
Product Information
Attributes
Color
Dark Gray
Finish
PVC Coated
UNSPSC
39131708
Used On
Conduit
Approval
UL, CSA
Hub Size
3/4
Material
Iron
Form Type
Form 8
Application
For pull outlets for conductors being installed
Hub Location
Tee Back
Installation
Screw, Threaded
Access Opening
Tee Back
Number of Hubs
3
Connection Type
Thread
Enclosure
NEMA 4X
Type
Type TB
Style
TB
Capacity
9
Cover Type
PVC Coated Cast Iron, 2 Mil Blue Urethane Coated Interior, 40 Mil PVC Coated Exterior
Dimensions
6-9/32 in L x 2-7/8 in W x 1-3/16 in H
Features
  • Excellent protection in wash down areas, as well as harsh outdoor environments exposed to moisture, rain, ice or snow
  • Double coated superior corrosion protection, bodies and covers coated inside and out with 0.002 in blue urethane, then exterior coated with a minimum of 0.04 in PVC
  • PVC coated cast iron conduit body comes with mated cast iron cover, injection molded with an integral O-ring seal and stainless steel encapsulated screws
  • Connect conduit sections
  • Provide taps for branch conduit runs
  • Make 90 deg bends in conduit runs
  • Provide for access to conductors for maintenance and future system changes
  • UL listed type 4X and NEMA 4X rating for excellent protection in wash down areas, as well as harsh outdoor environments exposed to moisture, rain, ice or snow
THOBETE43965_1_2
THOBETE68451_E400_E401_E407
Ocal_LL57_LG_Specification_Sheet
Qty Unit price
Ea
1 $190.40

Slqt
1 $190.40

Stpk
1 $190.40

Unit
1 $190.40
