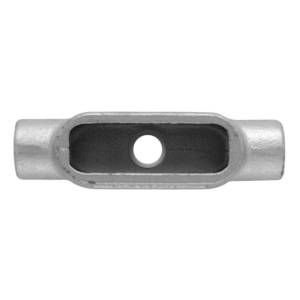

Ocal® OCAL-BLUE® TB27-G Type TB Conduit Body, 3/4 in Hub, Form 7 Form, 9.1 cu-in Capacity, Iron, PVC Coated
Ocal® OCAL-BLUE® TB27-G Type TB Conduit Body, 3/4 in Hub, Form 7 Form, 9.1 cu-in Capacity, Iron, PVC Coated
Ocal® OCAL-BLUE® TB27-G Type TB Conduit Body, 3/4 in Hub, Form 7 Form, 9.1 cu-in Capacity, Iron, PVC Coated
Ocal® OCAL-BLUE® TB27-G Type TB Conduit Body, 3/4 in Hub, Form 7 Form, 9.1 cu-in Capacity, Iron, PVC Coated
Ocal® OCAL-BLUE® TB27-G Type TB Conduit Body, 3/4 in Hub, Form 7 Form, 9.1 cu-in Capacity, Iron, PVC Coated
Ocal® OCAL-BLUE® TB27-G Type TB Conduit Body, 3/4 in Hub, Form 7 Form, 9.1 cu-in Capacity, Iron, PVC Coated
Share Share Print Print
ABB

Ocal® OCAL-BLUE® TB27-G Type TB Conduit Body, 3/4 in Hub, Form 7 Form, 9.1 cu-in Capacity, Iron, PVC Coated

Short Description

With outstanding performance in corrosive environments, Ocal® PVC coated conduit and fittings extend the life of your electrical system for many years beyond the lifespan of standard rigid conduit systems. The Ocal® UL verified 4X conduit body, including covers with a leakproof O-ring seal, meets the latest NEMA standard for both corrosion and damage from liquids.

Ocal® OCAL-BLUE® Conduit Body, Type TB, 3/4 in Hub, 3 Hubs, 9.1 cu-in Capacity, Form 7 Form, Thread Connection, Iron, PVC Coated, Dark Gray, 6.19 in L x 2.31 in W x 1.81 in H Dimensions

MFG #: TB27-G

EECO #: OCTB27G

Brand: Ocal
UPC #: 704508411039
Attributes
Features
Documents
Product Information
Attributes
Color
Dark Gray
Finish
PVC Coated
UNSPSC
39131708
Approval
UL
Hub Size
3/4
Material
Iron
Form Type
Form 7
Application
For pull outlets for conductors being installed
Hub Location
Tee Back
Installation
Threaded
Access Opening
Tee Back
Number of Hubs
3
Connection Type
Thread
Type
Type TB
Style
TB
Capacity
9.1
Cover Type
Dark Gray 4 Mil PVC Coated Cast Iron Exterior
Dimensions
6.19 in L x 2.31 in W x 1.81 in H
Features
  • The conduit body and cover are double coated with a nominal 0.002 in blue urethane on both the interior and exterior, before PVC coating is applied
  • A minimum of 0.04 in PVC coating is bonded to the exterior
  • Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover
  • Ocal® Pressure sealing sleeves on all threaded hubs
  • Ocal® conduit bodies are shipped with a cover and encapsulated stainless steel screws
  • Bodies are designed with a flat back, allowing more cubic inch capacity, flat back also keeps the body more stable during installation, requiring fewer conduit straps
  • Connect conduit sections
  • Provide taps for branch conduit runs
  • Make 90 deg bends in conduit runs
  • Provide for access to conductors for maintenance and future system changes
