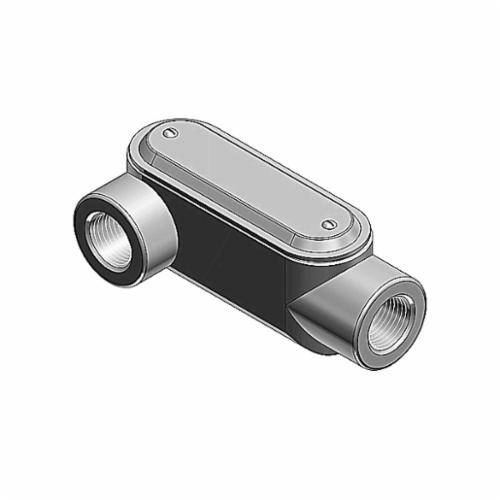

Ocal® OCAL-BLUE® LR107-G Type LR Conduit Body With Cover, 4 in Hub, Form 7 Form, 243 cu-in Capacity, Iron, PVC Coated
Share Share Print Print
ABB

Ocal® OCAL-BLUE® LR107-G Type LR Conduit Body With Cover, 4 in Hub, Form 7 Form, 243 cu-in Capacity, Iron, PVC Coated

Short Description

With outstanding performance in corrosive environments, Ocal® PVC coated conduit and fittings extend the life of your electrical system for many years beyond the lifespan of standard rigid conduit systems. T&B® has removed certain "Only Ocal®" statements from its literature and advertising as part of the settlement of a lawsuit.

Ocal® OCAL-BLUE® Conduit Body, Type LR, 4 in Hub, 2 Hubs, 243 cu-in Capacity, Form 7 Form, Thread Connection, Surface Mounting, Iron, PVC Coated, Dark Gray, 12.85 in L x 7.03 in W x 5.4 in H Dimensions
MFG #: LR107-G

EECO #: OCLR107G

Brand: Ocal
UPC #: 704508393670
Attributes
Features
Documents
Product Information
Attributes
Color
Dark Gray
Finish
PVC Coated
UNSPSC
39131708
Hub Size
4
Material
Iron
Application
For pull outlets for conductors being installed
Mounting Type
Surface
Number of Hubs
2
Connection Type
Thread
Type
Type LR
Capacity
243
Dimensions
12.85 in L x 7.03 in W x 5.4 in H
Features
  • The conduit body and cover are double coated with a nominal 0.002 in blue urethane on both the interior and exterior, before PVC coating is applied
  • A minimum of 0.04 in PVC coating is bonded to the exterior
  • Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover
  • Ocal® Pressure sealing sleeves on all threaded hubs
  • Ocal® conduit bodies are shipped with a cover and encapsulated stainless steel screws
  • Bodies are designed with a flat back, allowing more cubic inch capacity
  • The flat back also keeps the body more stable during installation, requiring fewer conduit straps
  • Provide openings for making splices and taps in conductors
  • Connect conduit sections
  • Provide taps for branch conduit runs
  • Make 90 deg bends in conduit runs
  • Provide for access to conductors for maintenance and future system changes
