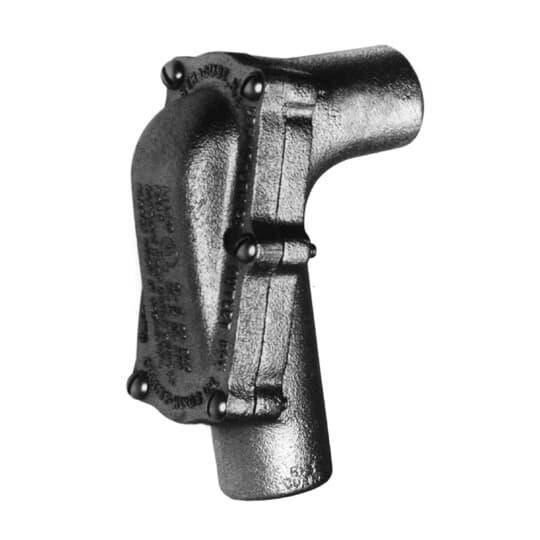

Ocal® OCAL-BLUE™ LBH100-G Double Coat Pulling Elbow, 4 in Trade, 90 deg, Iron, PVC Coated
Share Share Print Print
ABB

Ocal® OCAL-BLUE™ LBH100-G Double Coat Pulling Elbow, 4 in Trade, 90 deg, Iron, PVC Coated

Short Description

LBD and LBH bodies are installed at 90 deg bends in rigid conduit to act as pull outlets for conductors that are stiff due to large size or type of insulation and to make 90 deg bends in conduit system while allowing straight wire pulls in either direction.

Ocal® OCAL-BLUE™ Pulling Elbow, Double Coat, Series: LBH, 4 in, 90 deg, For Use With: Rigid Conduit, Iron, Gray, PVC Coated
MFG #: LBH100-G

EECO #: OCLBH100G

Brand: Ocal
UPC #: 704508391737
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
PVC Coated
UNSPSC
39131717
Material
Iron
Trade Size
4
Application
For hazardous locations
Type
Double Coat
Angle
90
Series
LBH
Suitable For Use With
Rigid Conduit
Features
  • Pressure sealing sleeves seal connections
  • Coated with a nominal 0.002 in blue urethane on both interior and exterior
  • Nominal 0.04 in PVC coating bonded to exterior
  • Installed at 90 deg bends in rigid conduit to act as pull outlets for conductors
Ocal_LBD3300_W_Specification_Sheet
