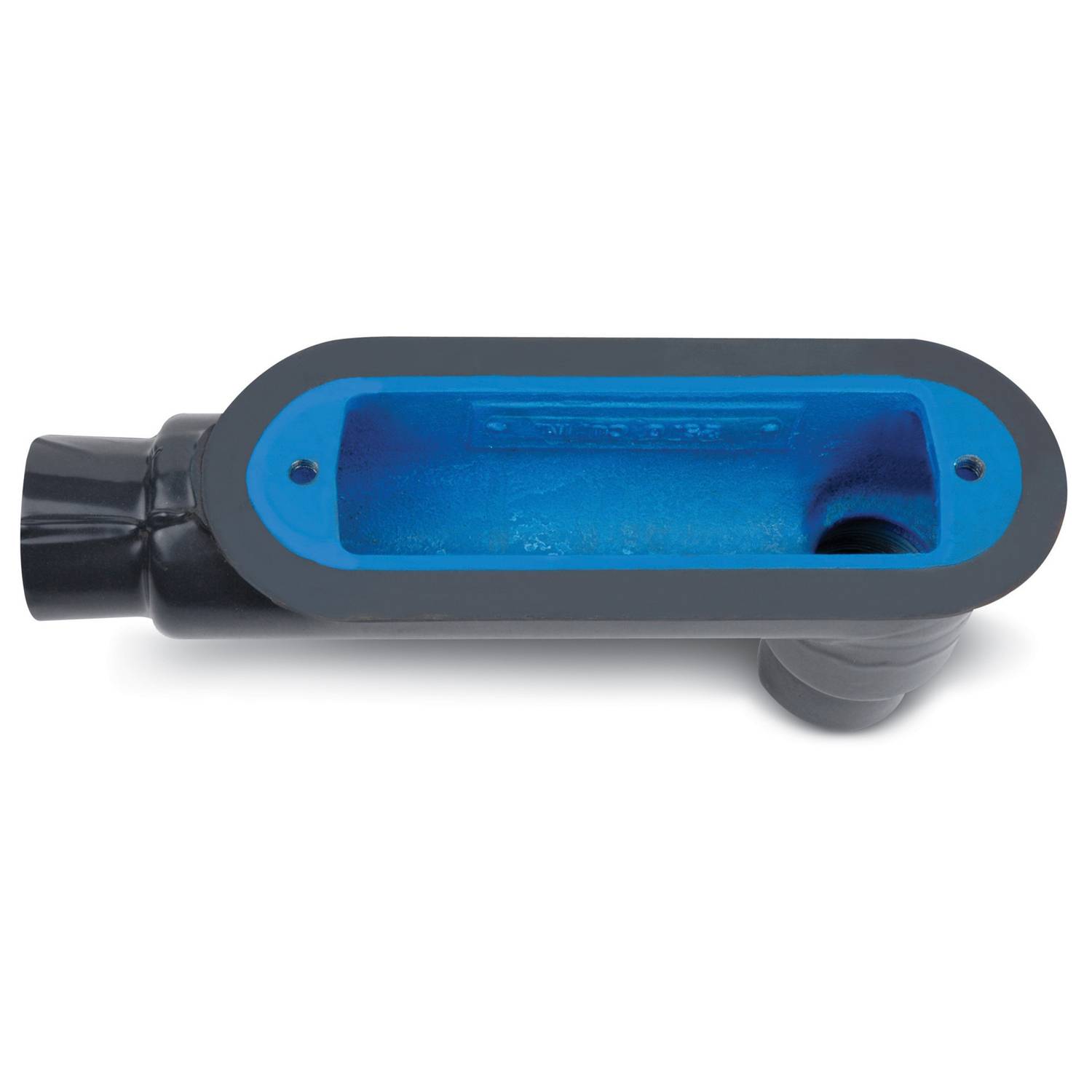

Ocal® OCAL-BLUE® BLB5-G Type LB Conduit Body With Cover and Gasket, 1-1/2 in Hub, Mogul Form, Iron, Electro Galvanized
Share Share Print Print
ABB

Ocal® OCAL-BLUE® BLB5-G Type LB Conduit Body With Cover and Gasket, 1-1/2 in Hub, Mogul Form, Iron, Electro Galvanized

Short Description

With outstanding performance in corrosive environments, Ocal® PVC coated conduit and fittings extend the life of your electrical system for many years beyond the lifespan of standard rigid conduit systems. T&B® has removed certain "Only Ocal®" statements from its literature and advertising as part of the settlement of a lawsuit.

Ocal® OCAL-BLUE® Conduit Body, Type LB, Series: BLB, 1-1/2 in Hub, 2 Hubs, Mogul Form, Thread Connection, Iron, Electro Galvanized, Dark Gray, 12.58 in L x 3 in W x 2.56 in H Dimensions

MFG #: BLB5-G

EECO #: OCBLB5G

Brand: Ocal
UPC #: 704508355999
Attributes
Features
Documents
Product Information
Attributes
Color
Dark Gray
Finish
Electro-Galvanized
UNSPSC
39131708
Hub Size
1-1/2
Material
Iron
Application
For pull outlets for conductors that are stiff, due to large size or type of insulation
Number of Hubs
2
Connection Type
Thread
Type
Type LB
Series
BLB
Dimensions
12.58 in L x 3 in W x 2.56 in H
Features
  • The conduit body and cover are double coated with a nominal 0.002 in blue urethane on both the interior and exterior, before PVC coating is applied
  • Nominal 0.04 in PVC coating bonded to exterior
  • Long openings
  • Provision for easy bends
  • Tapered tapped hubs with integral bushings
  • Pressure sealing sleeves protect connections
  • Shipped complete with mogul conduit body, cover and stainless steel cover screws
  • Provide the longer openings needed when pulling large conductors
  • Prevent sharp bends and kinks in large conductors which protects insulation during installation
  • Provide ample openings for splices and taps
  • Provide access to wiring for maintenance and future system changes
