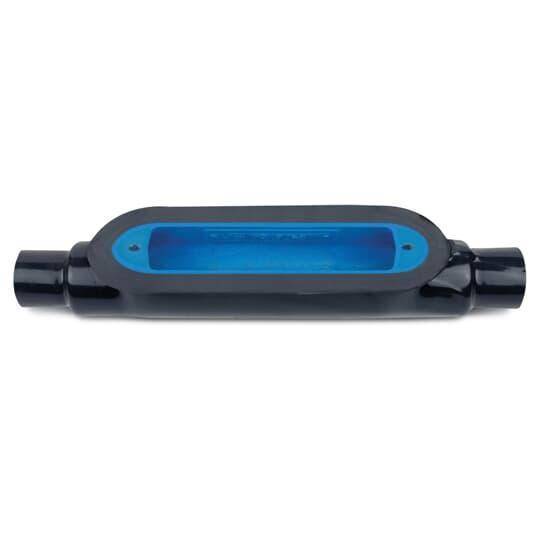

Ocal® OCAL-BLUE® BC4-G BC Series Double Coated Straight Feed-Through Conduit Body With Cover and Gasket, 1-1/4 in Hub, Mogul Form, Iron
Share Share Print Print
ABB

Ocal® OCAL-BLUE® BC4-G BC Series Double Coated Straight Feed-Through Conduit Body With Cover and Gasket, 1-1/4 in Hub, Mogul Form, Iron

Short Description

With outstanding performance in corrosive environments, Ocal® PVC coated conduit and fittings extend the life of your electrical system for many years beyond the lifespan of standard rigid conduit systems. T&B® has removed certain "Only Ocal®" statements from its literature and advertising as part of the settlement of a lawsuit.

Ocal® OCAL-BLUE® Conduit Body, Double Coated Straight Feed-Through, Series: BC Series, 1-1/4 in Hub, Mogul Form, Iron, Electro Galvanized/PVC Coated, Dark Gray, 9.56 in L x 2.25 in W x 2.31 in H Dimensions
MFG #: BC4-G

EECO #: OCBC4G

Brand: Ocal
UPC #: 704508355166
Attributes
Features
Documents
Product Information
Attributes
Color
Dark Gray
Finish
Electro-Galvanized/PVC Coated
UNSPSC
39131708
Hub Size
1-1/4
Material
Iron
Application
For used to act as pull outlets for conductors that are stiff, due to large size or type of insulation
Type
Double Coated Straight Feed-Through
Series
BC Series
Includes
Cover
Dimensions
9.56 in L x 2.25 in W x 2.31 in H
Features
  • The conduit body and cover are double coated with a nominal 0.002 in blue urethane on both the interior and exterior, before PVC coating is applied
  • Nominal 0.04 in PVC coating bonded to exterior
  • Long openings
  • Provision for easy bends
  • Tapered tapped hubs with integral bushings
  • Pressure sealing sleeves protect connections
  • Shipped complete with mogul conduit body, cover and stainless steel cover screws
  • Provide the longer openings needed when pulling large conductors
  • Prevent sharp bends and kinks in large conductors which protects insulation during installation
  • Provide ample openings for splices and taps
  • Provide access to wiring for maintenance and future system changes
Ocal_LBD3300_W_Specification_Sheet
