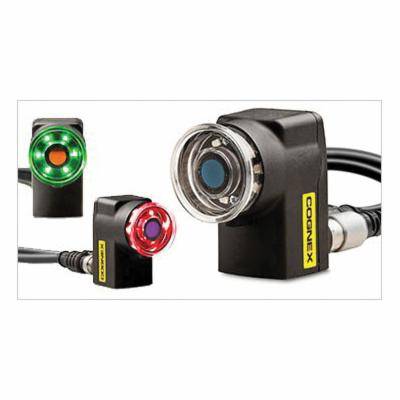

Cognex C4G7-24G-E00 Vision Sensor, 5.8 mm Standard Optic Lens
Share Share Print Print
Cognex

Cognex C4G7-24G-E00 Vision Sensor, 5.8 mm Standard Optic Lens

Short Description

Enhance your vision capabilities with the Cognex C4G7-24G-E00 Vision Sensor, featuring a 5.8 mm Standard Optic Lens for precise imaging in various environments.Enhanced by AI

Cognex Vision Sensor, 5.8 mm Standard Optic Lens, 10/100 Ethernet Connection, IP67 Enclosure, 32 to 122 deg F, 1.61 in W x 2.72 in D x 2.64 in H Size

MFG #: C4G7-24G-E00

EECO #: NVC4G724GE00

Brand: Cognex
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
41112200
Enclosure Type
IP67
Connection Type
10/100 Ethernet
Temperature Rating
32 to 122
Size
1.61 in W x 2.72 in D x 2.64 in H
Includes
Quick Start Guide, Checker software CD and Mounting Screws and Lens Kit
Features
  • Input on > 10 VDC (> 6 mA), input off < 2 VDC (< 1.5 mA), protection opto-isolated, polarity independent external trigger input
  • Output solid state switch, rating 100 mA, 24 VDC, maximum voltage drop 3.5 VDC at 100 mA, maximum load 100 mA, protection opto-isolated, protected from short circuit, overcurrent, and reverse polarity output
  • Jobs supported 32, input on > 10 VDC (> 6 mA), input off < 2 VDC (< 1.5 mA), protection opto-isolated, polarity independent job control input
  • Voltage 24 VDC (22 to 26 VDC), current 250 mA maximum power rating
  • Operating humidity 0 to 90%, non-condensing, operating altitude 4000 m maximum, shock 80Gs for 5 ms on each axis (per IEC 68-2-2), vibration 10Gs (10-500Hz) per IEC 68-2-6
  • EIP w/AOP, PROFINET, TCP/IP, UDP/IP, FTP Image PLC communication
  • Internal part trigger, external part trigger and free running modes of operation
  • Operating systems XP™, Vista™, Microsoft® windows 7® 32 and 64 bit, RAM 128 MB RAM, interface Ethernet 10/100, screen resolution 1024 x 768 (96 DPI) or 1280 x 1024 (120 DPI) display minimum PC requirements
Qty Unit price
Ea
1 $1,271.25
