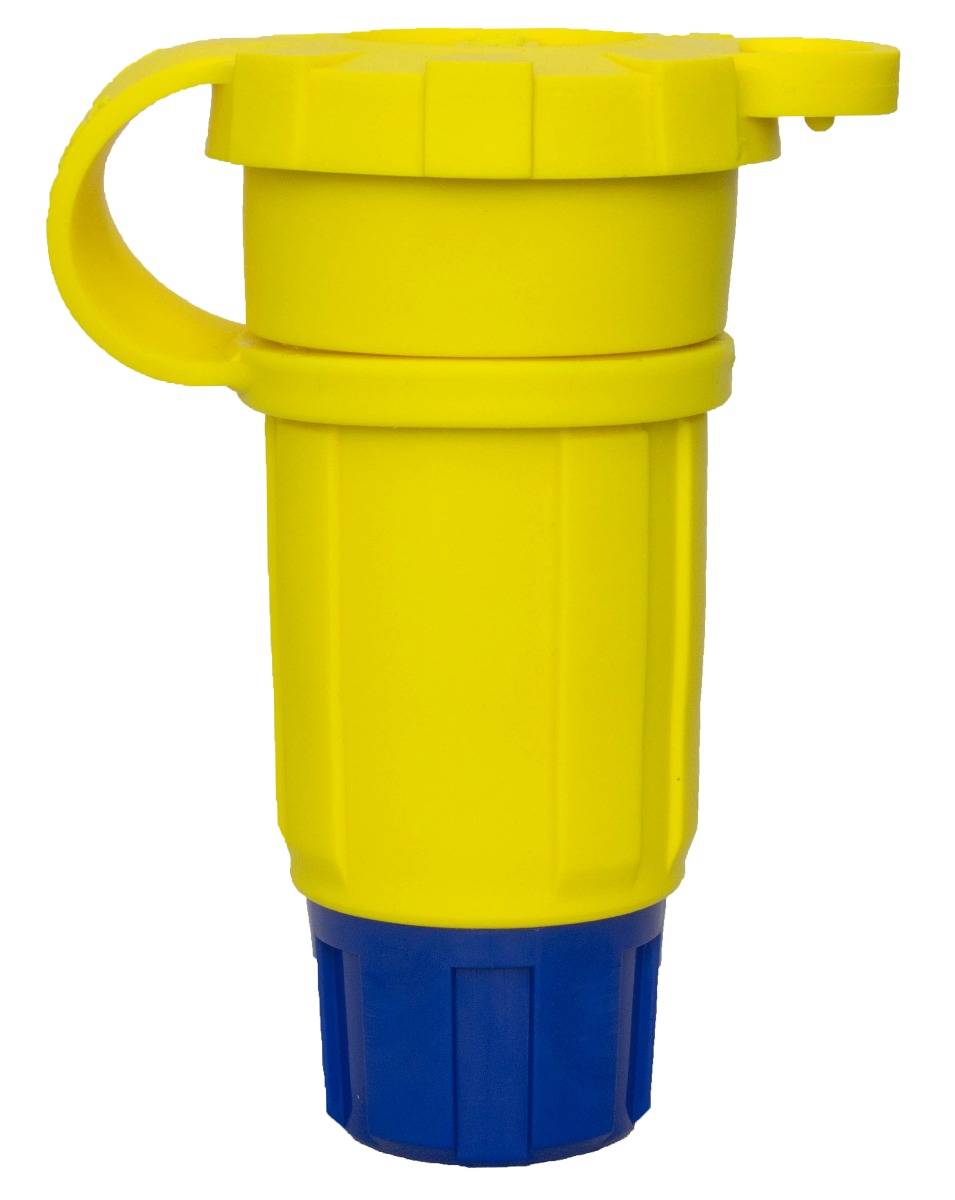

Ericson® Perma-Tite® 1612-CW6P 1-Phase Grounding Watertight Straight Blade Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Brilliant Blue/Radiant Yellow

Short Description

Perma-Tite® 2 plugs and connectors are engineered and manufactured to the highest quality standards to provide the ultimate in electrical service and protection. They are designed and proven to do their best under the worst conditions in a broad array of the most severe food processing, industrial, marine, construction and petrochemical work environments. Ericson® manufacturing company engineers and produces a comprehensive range of plugs and connectors for demanding industrial and construction environments. From the inVention of the first dead front, back-wired electrical plug in 1929 and patent in 1936 to present day innovations such as Perma-Tite® 2 devices that are designed to meet or exceed UL and IEC watertight standards.

Ericson® Perma-Tite® Straight Blade Connector, 1-Phase Grounding Watertight, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20 NEMA Rating, Industrial Grade, NEMA 4/4X/6/6P/IP67 Enclosure, Elastomer, Brilliant Blue/Radiant Yellow, 1.81 in Dia x 4.01 in L

MFG #: 1612-CW6P

EECO #: NV1612CW6P

Brand: Ericson
UPC #: 782862824832
Attributes
Features
Documents
Product Information
Attributes
Color
Brilliant Blue/Radiant Yellow
UNSPSC
39121406
Material
Elastomer
Application
Food Processing, Pulp and Paper Mills, Refineries, Petrochemical Facilities, Ship Yards, Utilities and Marine Applications
Voltage Rating
125
Number of Wires
3
Enclosure
NEMA 4/4X/6/6P/IP67
Type
1-Phase Grounding Watertight
Grade
Industrial
Dimensions
1.81 in Dia x 4.01 in L
Amperage Rating
20
Features
  • Transparent backplate for easy inspection of individual wiring chamber
  • Captive assembly and terminal screws reduce the risk of losing small parts
  • No-slip elastomeric housing with finger-grips, solid brass blade, polybutylene terephthalate body
  • High visibility Ericson® dual color safety system
  • NEMA configurations and a variety of specialty non-NEMA devices - 15 A, 20 A, 30 A and 50 A models
  • Tongue and groove sealing system provides environmental protection of NEMA Type 4, 4X, 6, 6P and IP67
  • Devices resist high-pressure hose down of 1000 psi
  • Connector bodies made with PBT chosen for its high resistance to moisture absorption, high voltage arcing and carbon tracking
  • Keyed body and cover for easy alignment/assembly
  • Color coded sealing bushings are provided to fit a variety of cord diameters
  • Removable or replaceable self-retained sealing cap provided with connector to keep out contaminants when not in use
  • Transparent backplate makes for quick visual wiring checks
  • Ericson® new brilliant blue and radiant yellow high visibility dual color safety system symbolizes that legendary Ericson® quality
  • Impact, corrosion, crushing and chemical-resistant, watertight
  • Perma-Grip™ plugs and connectors all engineered with dead-front, back-wired design
  • Corrosion-resistant nickel plated solid brass blade
  • Plug and connector bodies made with PBT chosen for its high resistance to moisture absorption
  • High voltage arcing and carbon tracking
  • High visibility Ericson® safety yellow and blue colors
  • Standard voltages from 120 VAC through 600 VAC
