Ericson® Perma-Tite® 1512-PW6P 1-Phase Grounding Straight Blade Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Brilliant Blue/Radiant Yellow
Ericson® Perma-Tite® 1512-PW6P 1-Phase Grounding Straight Blade Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Brilliant Blue/Radiant Yellow
Ericson® Perma-Tite® 1512-PW6P 1-Phase Grounding Straight Blade Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Brilliant Blue/Radiant Yellow
Ericson® Perma-Tite® 1512-PW6P 1-Phase Grounding Straight Blade Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Brilliant Blue/Radiant Yellow
Share Share Print Print
Ericson

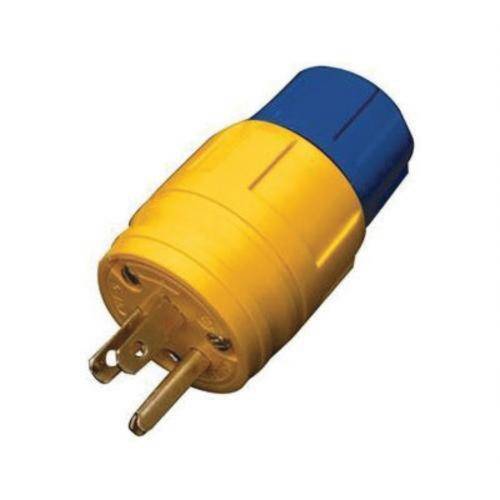

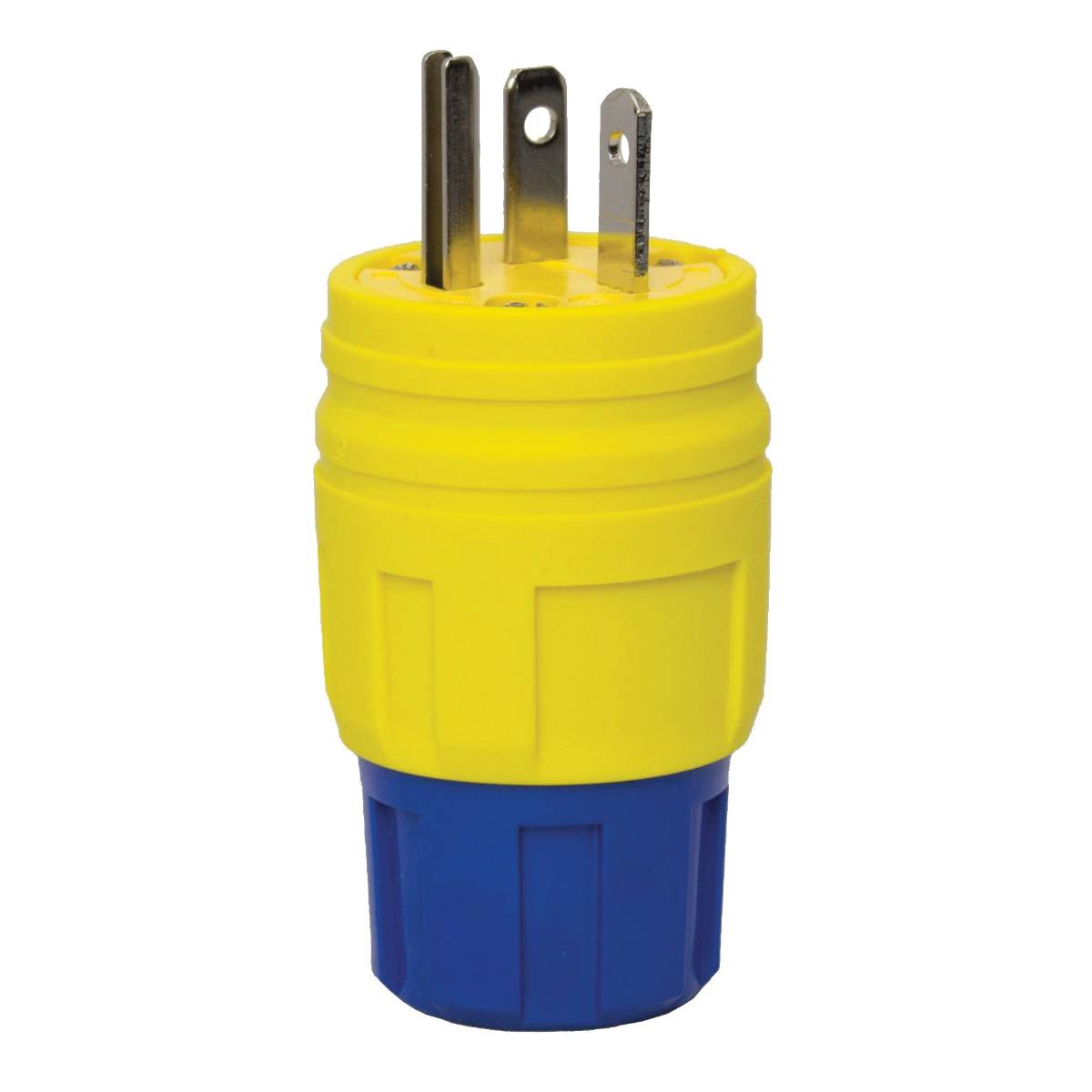

Ericson® Perma-Tite® 1512-PW6P 1-Phase Grounding Straight Blade Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Brilliant Blue/Radiant Yellow

Short Description

Experience superior performance and safety with the Ericson® Perma-Tite® 1512-PW6P 1-Phase Grounding Straight Blade Plug. Designed for industrial use, this durable plug features a brilliant blue and radiant yellow design, ensuring visibility and reliability in any environment.Enhanced by AI

Ericson® Perma-Tite® Straight Blade Plug, 1-Phase Grounding, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20 NEMA Rating, Industrial Grade, IP67/NEMA 4/4X/6/6P Enclosure, Threaded Terminal, Polybutylene Terephthalate, Brilliant Blue/Radiant Yellow, 1.63 in Dia x 2.68 in L

MFG #: 1512-PW6P

EECO #: NV1512PW6P

Brand: Ericson
UPC #: 782862824825
Attributes
Features
Documents
Product Information
Attributes
Color
Brilliant Blue/Radiant Yellow
UNSPSC
39121402
Material
Polybutylene Terephthalate
Application
Food Processing, Pulp and Paper Mills, Refineries, Petrochemical Facilities, Ship Yards, Utilities and Marine Applications
Terminal Type
Threaded
Voltage Rating
125
Number of Wires
3
Enclosure
IP67/NEMA 4/4X/6/6P
Type
1-Phase Grounding
Grade
Industrial
Dimensions
1.63 in Dia x 2.68 in L
Amperage Rating
20
Features
  • Tongue and groove sealing system provides environmental protection of NEMA Type 4, 4X, 6, 6P and IP67
  • Removable or replaceable self-retained sealing cap provided with connector to keep out contaminants when not in use
  • Transparent backplate makes for quick visual wiring checks
  • Transparent backplate for easy inspection of individual wiring chamber
  • Standard voltages from 120 VAC through 600 VAC
  • Perma-Tite® 2 plugs and connectors are engineered and manufactured to the highest quality standards to provide the ultimate in electrical service and protection
  • They are designed and proven to do their best under the worst conditions in a broad array of the most severe food processing, industrial, marine, construction and petro-chemical work environments
  • From the invention of the first dead-front, back-wired electrical plug-in 1929 and patent in 1936 to present day innovations such as Perma-Tite® 2 devices that are designed to meet or exceed UL and IEC watertight standards
  • Nickel plated blade
  • Solid brass blade
  • Devices resist high-pressure hose down of 1000 psi
  • Plug and connector bodies made with PBT chosen for its high resistance to moisture absorption
  • High voltage arcing and carbon tracking
  • Keyed body and cover for easy alignment/assembly
  • Color coded sealing bushings are provided to fit a variety of cord diameters
  • Captive assembly and terminal screws reduce the risk of losing small parts
  • Ericson® new brilliant blue and radiant yellow high visibility dual color safety system symbolizes that legendary Ericson® quality
  • Corrosion-resistant nickel plated blades, impact, corrosion, crushing and chemical-resistant
  • High visibility Ericson® safety yellow and blue colors
  • Perma-Grip™ plugs and connectors all engineered with dead-front, back-wired design
