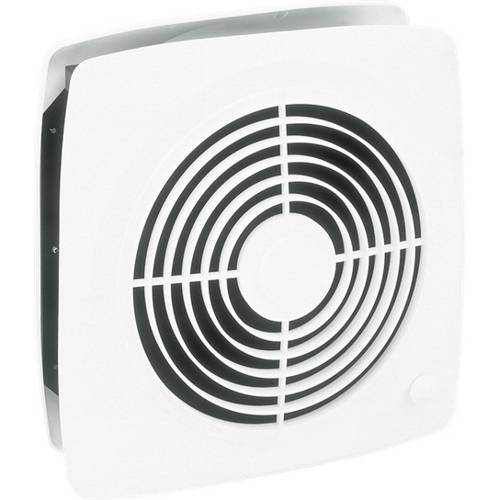

NuTone® 511 Room to Room Utility Ventilation Fan, 180 cfm, 120 VAC, 0.9 A, Domestic
Share Share Print Print
Broan-NuTone

NuTone® 511 Room to Room Utility Ventilation Fan, 180 cfm, 120 VAC, 0.9 A, Domestic

Short Description

Enhance your home's air circulation with the NuTone® 511 Room to Room Utility Ventilation Fan, delivering powerful ventilation at 180 cfm. Ideal for improving indoor air quality, this fan is designed for easy wall mounting and features a sleek polymer grille. Breathe easier and create a more comfortable living space today!Enhanced by AI

NuTone® Utility Ventilation Fan, Room to Room, 180 cfm, 120 VAC, 0.9 A, 60 Hz, 13-1/2 in Grille Length, 13-1/2 in Grille Width, Polymer Grille, 11-1/2 in Housing Length, 11-1/2 in Housing Width, 11-1/2 in Housing Height, Steel Housing, Wall Mount, No, White, Domestic

MFG #: 511

EECO #: NU511

Brand: Broan-NuTone
UPC #: 026715022922
Attributes
Features
Documents
Product Information
Attributes
Color
White
UNSPSC
40101604
Application
For removing humidity from laundry rooms, tobacco smoke from rec rooms, fumes from workshops or cooking fumes from kitchens
Mounting Type
Wall
Voltage Rating
120
Frequency Rating
60
Housing Material
Steel
Type
Room to Room
Warranty
1 Year
Flow Rate
180
Housing Width
11-1/2
Amperage Rating
0.9
Features
  • Easily installs in interior walls to move heated or cooled air from one room to another, spreads heat from fireplaces, cool air from air conditioners to adjoining rooms
  • Two attractive white polymeric grilles can be painted to match decor
  • White polymeric grilles can be painted to match any decor
  • Permanently lubricated, thermally protected, plug-in motor
  • 25 ga steel housing finished with rugged black electrically bonded epoxy paint
  • Ventilator shall be steel housing finished with electrically bonded epoxy paint
  • High strength, reinforced polymeric fan blade
  • Motor assembly offers fast, easy "twist-lock" installation
  • Requires 11-5/8 in square hole through both interior walls
  • Solid state speed control for fan speed and sound level selection
  • Housing can be fastened to walls in several ways allows flexibility to meet almost any mounting situation
  • Adjustable housing fits walls from 3 to 5-1/2 in THK
  • Motor assembly shall be removable and permanently lubricated
  • 1575 rpm speed, 4.5 Sones sound
  • Eliminate humidity from laundry rooms, tobacco smoke from recreation rooms and workshops or cooking fumes from kitchens with Broan®’s high efficiency utility ventilators
