Micron B750BTZ13RBF Encapsulated Control Transformer
Micron B750BTZ13RBF Encapsulated Control Transformer
Micron B750BTZ13RBF Encapsulated Control Transformer
Micron B750BTZ13RBF Encapsulated Control Transformer
Share Share Print Print
Micron

Micron B750BTZ13RBF Encapsulated Control Transformer

Short Description

750 VA, 230 x 460 VAC Primary, 115 VAC Secondary, 50/60 Hz, 6.52 A, Lead-Free, Screw Terminal, Encapsulated Control Transformer

Encapsulated Control Transformer; Primary Voltage 230 x 460 Volt AC; Secondary Voltage 115 Volt AC; Frequency Rating 50/60 Hertz; Power Rating 750 Volt Amp; Insulation Class 130; Terminal Type Screw; Size 5.25 Inch Width x 7.61 Inch Depth; Approval UL, UL (Canada and US), CUL; Lead-Free; RoHS Compliant; Current Rating 6.52 Amp

MFG #: B750BTZ13RBF

EECO #: MNB750BTZ13RBF

Brand: Micron
UPC #: 784550482546
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121027
Approval
UL, UL (Canada and US), CUL
Power Rating
750 Volt Amp
Terminal Type
Screw
Frequency Rating
50/60 Hertz
Insulation Class
130
Size
5.25 Inch Width x 7.61 Inch Depth
Primary Voltage
230 x 460 Volt AC
Secondary Voltage
115 Volt AC
Features
  • Fully Encapsulated Coil
  • Tough Environment-Proof Construction
  • Eases Wire Routing Around the Transformer
  • Fusion-Welded Coil Terminations Instead of Solder Joints Eliminates Cold Solder Joint Breakage, Improves Conductivity
  • Face-On Terminal Labels with Large Schematic Indicators Terminal Designations Clearly Visible to the Installer and Technician
  • Indicators Aligned with Terminal Screws for Clarity
  • SEMS Screw Terminal Strips as an Integral Part of the Coil Bobbin
  • Allows Bare Wire and Terminal Connection Methods
  • Easily Adaptable to Slot, Phillips and Hex Driver Tools
  • Robust Physical Support Instead of Floating Terminal Strips
  • Integral Accessory Mounting Plate on Transformer Top
  • Allows Field Modification to Block-Style Primary Fusing
  • Reduces SKU Count for Fused/Non-Fused Applications
  • Provides Mounting Platform for Additional Items (DIN Rail)
  • Lead-Free
  • RoHS Compliant

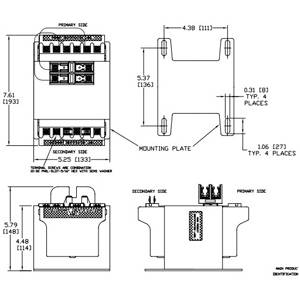

MICRON_B750BTZ13RBF_CAD
MICRONE00018_7_8
Qty Unit price
Ea
1 $184.73

Slqt
1 $184.73

Stpk
1 $184.73

Unit
1 $184.73
