Micron B150-2003-8F Encapsulated Control Transformer
Micron B150-2003-8F Encapsulated Control Transformer
Micron B150-2003-8F Encapsulated Control Transformer
Micron B150-2003-8F Encapsulated Control Transformer
Share Share Print Print
Micron

Micron B150-2003-8F Encapsulated Control Transformer

Short Description

150 VA, 208/230/460 VAC Primary, 24/115 VAC Secondary, 50/60 Hz, 6.25/1.3 A, Lead-Free, Screw Terminal, Encapsulated Control Transformer

Encapsulated Control Transformer; Primary Voltage 208/230/460 Volt AC; Secondary Voltage 24/115 Volt AC; Frequency Rating 50/60 Hertz; Power Rating 150 Volt Amp; Insulation Class 150; Terminal Type Screw; Size 3.75 Inch Width x 5.03 Inch Depth; Approval UL, UL (Canada and US), CUL; Lead-Free; RoHS Compliant; Current Rating 6.25/1.3 Amp

MFG #: B150-2003-8F

EECO #: MNB15020038F

Brand: Micron
UPC #: 784550071153
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121027
Approval
UL, UL (Canada and US), CUL
Power Rating
150 Volt Amp
Terminal Type
Screw
Frequency Rating
50/60 Hertz
Insulation Class
150
Size
3.75 Inch Width x 5.03 Inch Depth
Primary Voltage
208/230/460 Volt AC
Secondary Voltage
24/115 Volt AC
Features
  • Fully Encapsulated Coil
  • Tough Environment-Proof Construction
  • Eases Wire Routing Around the Transformer
  • Fusion-Welded Coil Terminations Instead of Solder Joints Eliminates Cold Solder Joint Breakage, Improves Conductivity
  • Face-On Terminal Labels with Large Schematic Indicators Terminal Designations Clearly Visible to the Installer and Technician
  • Indicators Aligned with Terminal Screws for Clarity
  • SEMS Screw Terminal Strips as an Integral Part of the Coil Bobbin
  • Allows Bare Wire and Terminal Connection Methods
  • Easily Adaptable to Slot, Phillips and Hex Driver Tools
  • Robust Physical Support Instead of Floating Terminal Strips
  • Integral Accessory Mounting Plate on Transformer Top
  • Allows Field Modification to Block-Style Primary Fusing
  • Reduces SKU Count for Fused/Non-Fused Applications
  • Provides Mounting Platform for Additional Items (DIN Rail)
  • Lead-Free
  • RoHS Compliant

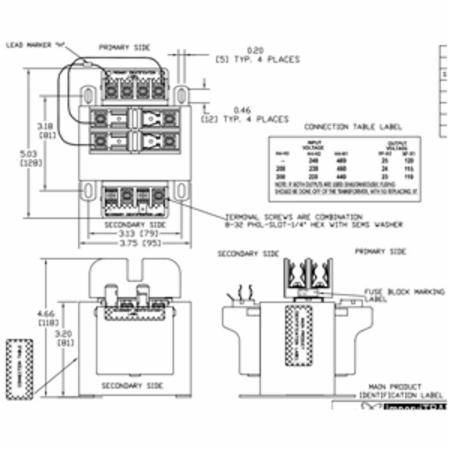

MICRON_B150_2003_8F_CAD
MICRONE00018_7_9
Qty Unit price
Ea
1 $86.24

Slqt
1 $86.24

Stpk
1 $86.24

Unit
1 $86.24
