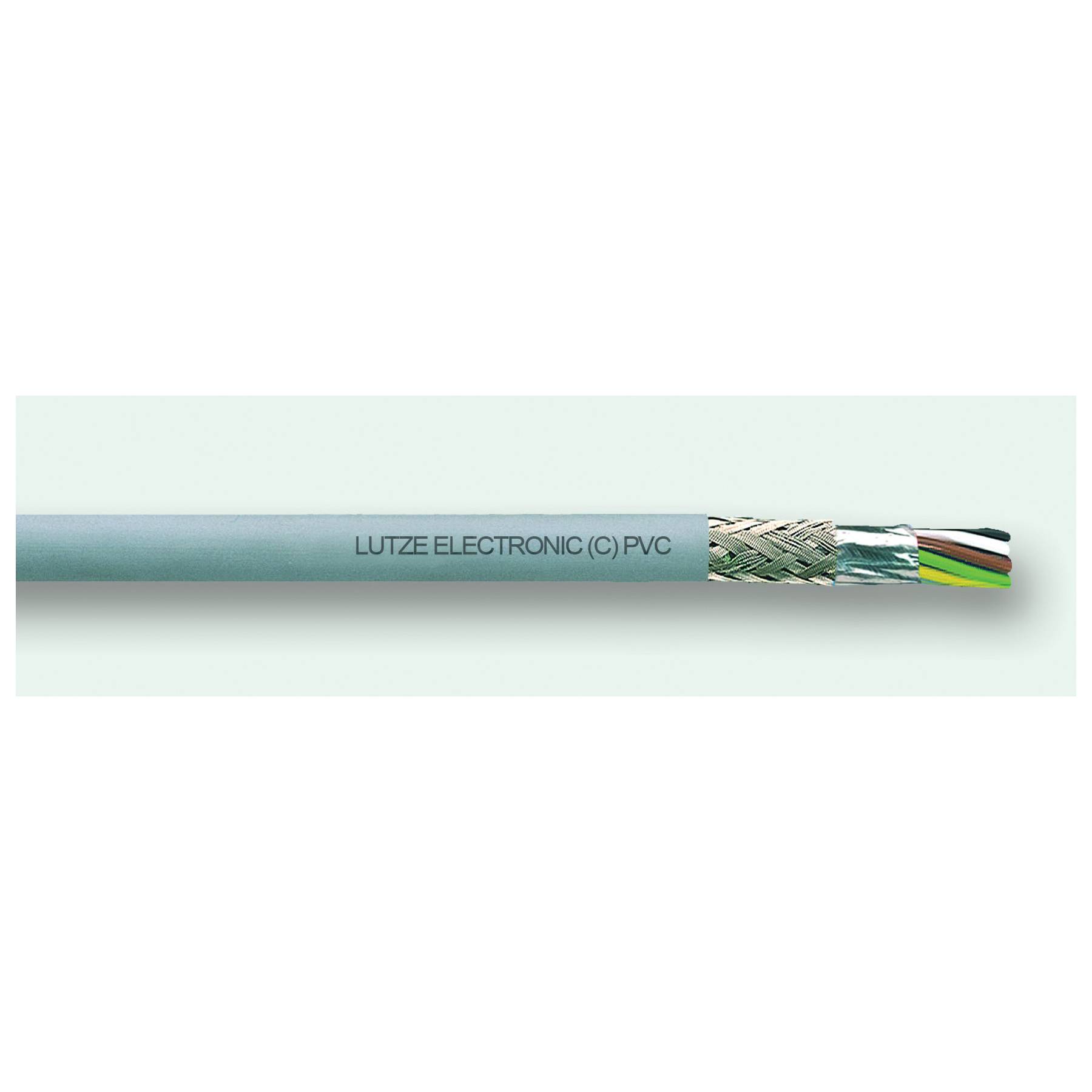

LUTZE A3132204 Shielded Flexible Electronic Cable, 300 V, (4) 22 AWG Stranded Tinned Copper Conductor
Share Share Print Print
Lutze

LUTZE A3132204 Shielded Flexible Electronic Cable, 300 V, (4) 22 AWG Stranded Tinned Copper Conductor

Short Description

Experience superior performance and reliability with the LUTZE A3132204 Shielded Flexible Electronic Cable. Designed for optimal flexibility and durability, this cable features four 22 AWG stranded tinned copper conductors, making it perfect for a variety of electronic applications. With a voltage rating of 300 V and a temperature range of -40 to 105 degrees Celsius, it's built to withstand demanding environments.Enhanced by AI

LUTZE Flexible Electronic Cable, Shielded, Series: A313, 300 V, 4 Conductors, Stranded Tinned Copper Conductor, 22 AWG Conductor, 0.218 in OD, 19/34 Strands, SR-PVC Insulation, PVC Jacket, Gray Jacket, -40 to 105 deg C Fixed

MFG #: A3132204

EECO #: LZA3132204

Brand: Lutze
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
26121600
Application
For stationary applications, machine tools, machine and plant construction, HVAC technology, assembly and production lines, process instrumentation and controls, computer peripherals, low voltage interconnect and other industrial applications including installation in cable trays
Jacket Color
Gray
Conductor Size
22
Voltage Rating
300
Jacket Material
PVC
Temperature Rating
-40 to 105 deg C Fixed
Insulation Material
SR-PVC
Number of Conductors
4
Type
Shielded
Series
A313
Warranty
5 years
Conductor Type
Stranded Tinned Copper
Outside Diameter
0.218
Features
  • Dual-shielded multi-conductor industrial grade PLTC electronic cable
  • Flexible for easy installation
  • Easy strip design
  • Color coded conductors
  • Specially formulated jacket for oil resistance
  • Premium durability
  • Extended temperature range
  • Sunlight-resistant
  • Gas/vaportight sheath per UL 13
  • Talc and silicone-free
LUTZE_A3131602_Catalog
LUTZE_A3132204_Specification_Sheet
