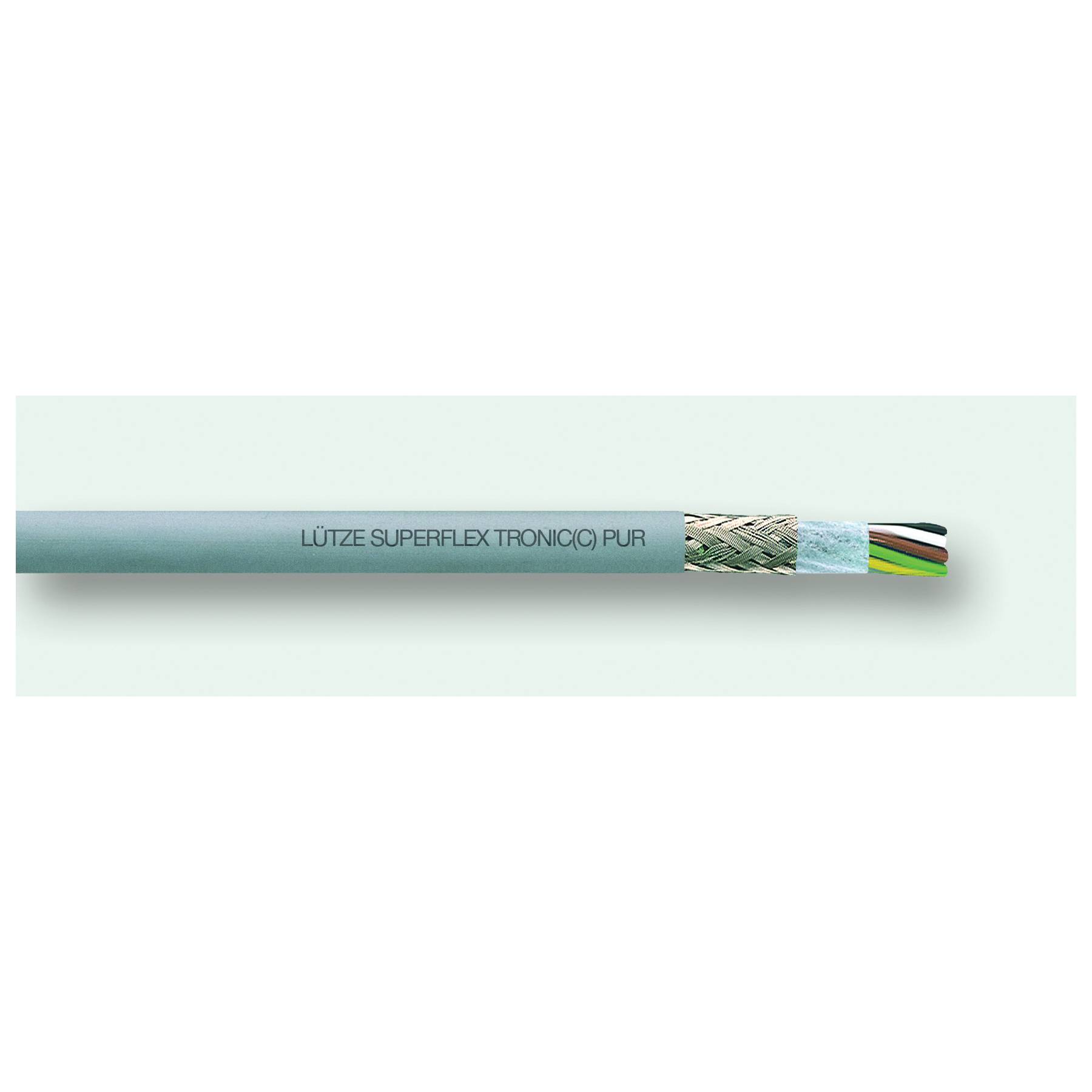

LUTZE SUPERFLEX® 117113 TRONIC Shielded Electronic Cable, 300 V, (10) 22 AWG Stranded Bare Copper Conductor

Short Description

Experience exceptional flexibility and reliability with the LUTZE SUPERFLEX® 117113 TRONIC Shielded Electronic Cable. Designed for high performance, this 300 V cable features 10 stranded bare copper conductors, ensuring optimal conductivity and durability in various environments.Enhanced by AI

LUTZE SUPERFLEX® Electronic Cable, Shielded, Series: TRONIC, 300 V, 10 Conductors, Stranded Bare Copper Conductor, 22 AWG Conductor, 0.287 in OD, 1000 MOhm Resistance, TPE Insulation, PUR Jacket, Gray Jacket, -25 to 80 deg C Moving/-40 to 80 deg C Fixed

MFG #: 117113

EECO #: LZ117113

Brand: Superflex
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
26121600
Application
For continuous motion applications, robots, handling equipment, machine tools, drag chains and applications with extremely rough operating conditions, the most demanding flexing applications such as drag chains and linear flexing, In dry and damp rooms, machine and device construction, transport, conveyor technology, heating, climate technology, industrial environments with high EMI potential in machine, plant and device construction
Jacket Color
Gray
Conductor Size
22
Voltage Rating
300
Jacket Material
PUR
Temperature Rating
-25 to 80 deg C Moving/-40 to 80 deg C Fixed
Insulation Material
TPE
Number of Conductors
10
Type
Shielded
Series
TRONIC
Warranty
5 years
Resistance
1000
Conductor Type
Stranded Bare Copper
Outside Diameter
0.287
Features
  • Compatible with all major drag chain brands
  • Superfine stranded per Class 6 for continuous moving applications
  • PUR jacket and TPE conductor insulation for use in extremely harsh operating conditions
  • Highest level of resistance against cooling fluids, greases and oils
  • Low adhesion, abrasion, high wear and tear resistance
  • Hydrolysis, microbe and rot-resistant
  • Dry, damp and wet conditions
  • UV-resistant
  • Talc and silicone-free
  • High active and passive interference resistance (EMC)
  • Braided shield optimized for continuous flexing applications
  • Low capacitance, very good electrical properties
  • Flame retardant, self-extinguishing
  • Halogen-free, no corrosive gases
  • Very good flexing strength
  • Good resistance to wear and salt water
  • Excellent coolant and lubricant resistance
  • Largely-resistant to oils, greases, alcohol-free benzenes and kerosene
