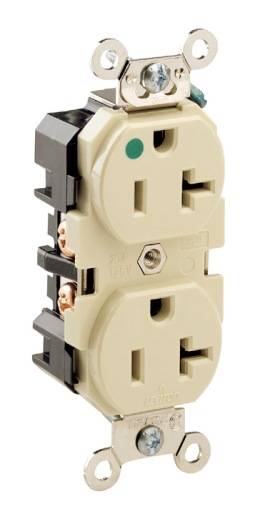

Leviton® 8300-I 1-Phase Duplex Extra Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory

Short Description

All Leviton® hospital grade receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high abuse tolerance, including health care facilities, manufacturing plants and schools.

Leviton® Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Ivory, 46 in H x 1.53 in W x 1.11 in D Dimensions

MFG #: 8300-I

EECO #: LV8300I

Brand: Leviton
UPC #: 078477818626
Attributes
Features
Documents
Product Information
Attributes
Color
Ivory
UNSPSC
39121406
Material
Thermoplastic
Terminal Type
Back/Side Wire
Voltage Rating
125
Number of Wires
3
Temperature Rating
-40 to 60
Type
1-Phase Duplex Extra Heavy Duty
Grade
Commercial
Warranty
10 years Limited
Dimensions
46 in H x 1.53 in W x 1.11 in D
Horsepower
1
Amperage Rating
20
Features
  • Impact resistant thermoplastic nylon cover and body
  • Four corner latches securely fasten face
  • Extra heavy duty triple-wipe, brass "T" contacts for superior contact and conductivity
  • High performance brass #10-32 terminal screws to reduce conductor oxidation
  • Back and side wire ground termination brass strap version
  • Back and side wiring options
  • Break-OFF tabs allow easy 2-circuit conversion
  • Apron barrier to prevent accidental contact between terminal screw heads and metal box
  • Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
  • Power Indication™ provides permanent "green dot" lens with 100000 hr LED status indicator
