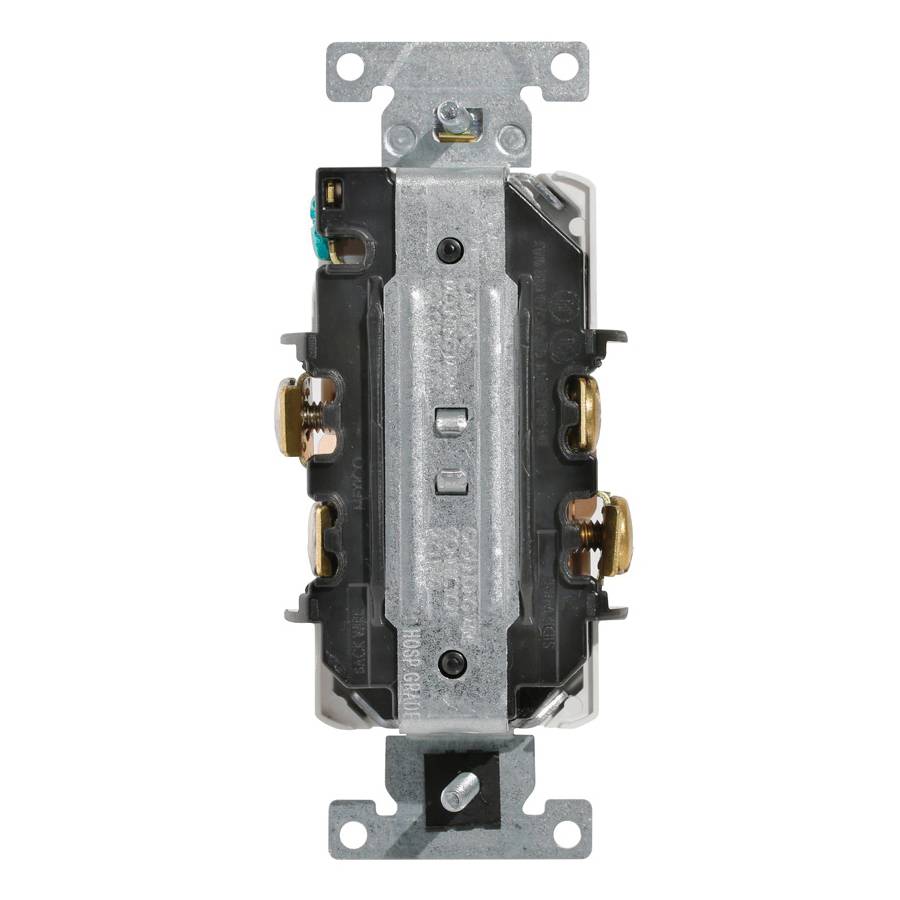

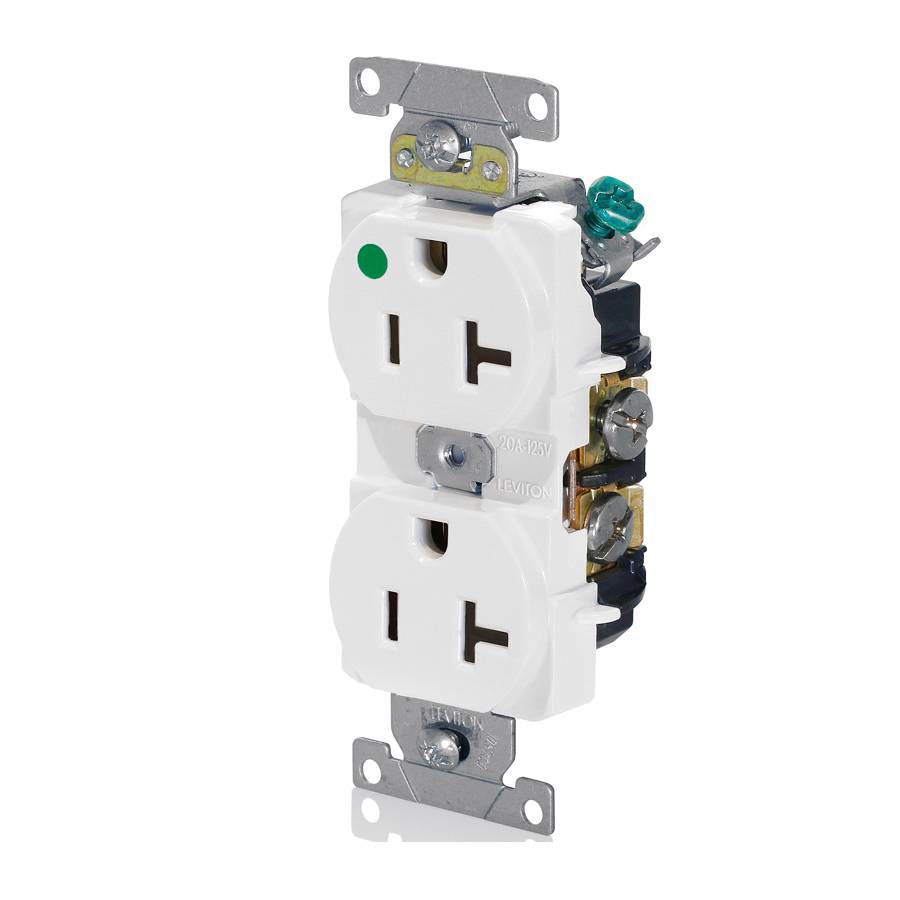

Leviton® 8300-HI 8300-H Duplex Heavy Duty Smooth Face Self-Grounding Standard Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory

Short Description

Upgrade your electrical connections with the Leviton® 8300-H Duplex Heavy Duty Receptacle. Designed for reliability and safety, this self-grounding receptacle is perfect for both residential and commercial use, offering robust performance in a sleek ivory finish.Enhanced by AI

Leviton® Straight Blade Receptacle, Duplex Heavy Duty Smooth Face Self-Grounding Standard, Series: 8300-H, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital Grade, -40 to 60 deg C, Back/Side Wire Terminal, PBT Polyester Blend/Thermoplastic, Ivory, 4.06 in H x 1.51 in W x 1.18 in D Dimensions

MFG #: 8300-HI

EECO #: LV8300HI

Brand: Leviton
UPC #: 078477818909
Attributes
Features
Documents
Product Information
Attributes
Color
Ivory
UNSPSC
39121406
Material
PBT Polyester Blend/Thermoplastic
Application
Commercial Buildings, Transportation Facilities, Municipal Buildings, Educational Facilities and Hospitals/Medical Buildings
Terminal Type
Back/Side Wire
Voltage Rating
125
Number of Wires
3
Temperature Rating
-40 to 60
Type
Duplex Heavy Duty Smooth Face Self-Grounding Standard
Grade
Hospital
Series
8300-H
Warranty
10 years Limited
Dimensions
4.06 in H x 1.51 in W x 1.18 in D
Horsepower
1
Amperage Rating
20
Features
  • Brass self-grounding clip is permanently staked on for secure and reliable performance
  • Wide receptacle face shelf provides exceptional support to the wallplate or box cover
  • Body and face made of impact-resistant advanced engineering polymer for extreme durability
  • Universal strap design provides ample support for electrical box installations and includes multiple break-off tabs to eliminate interference with virtually any cover or wall plate
  • Ground terminal clamp allows for both back and side wiring
  • Oversized brass terminal screw heads provide superior clamping force and electrical conductivity
  • External wiring clamps allow for back or side wiring and provide visual verification of termination and a faster, easier installation
  • Molded in ribs prevent terminal screws from making contact with wall box
