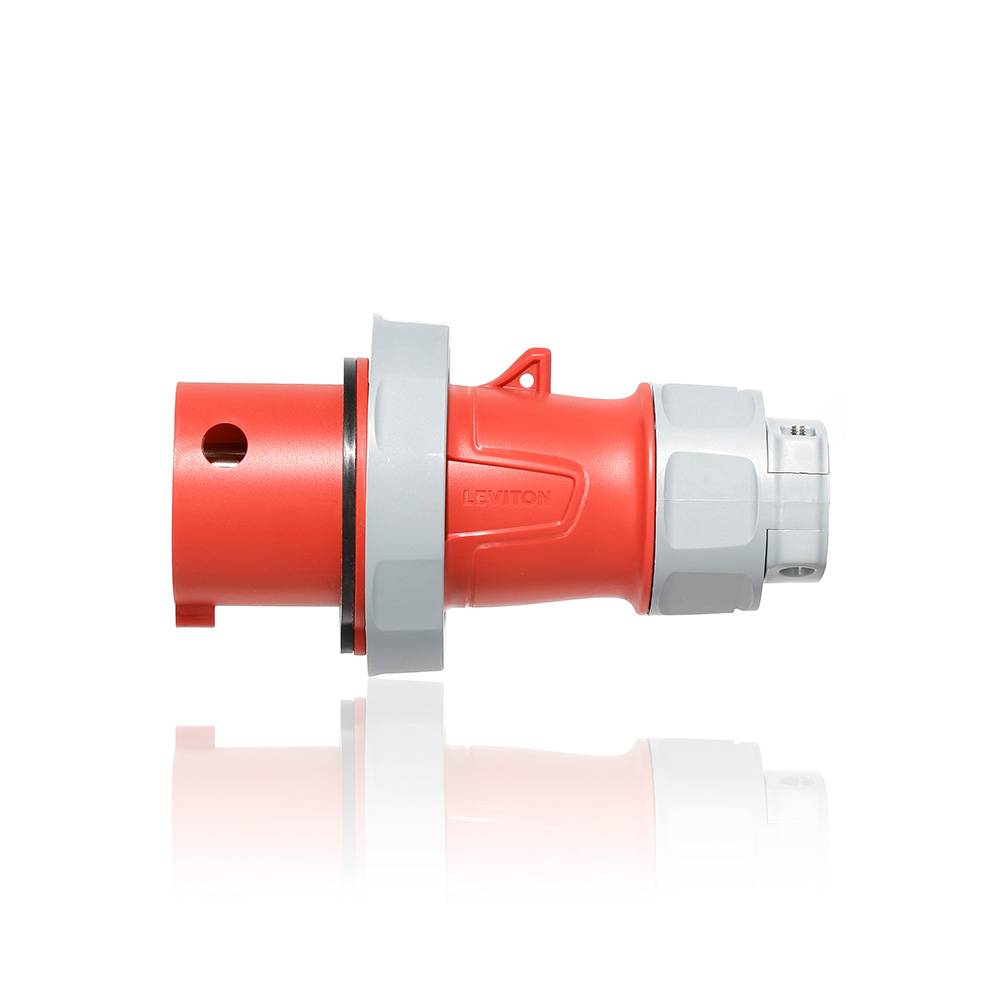

Leviton® 430P7WLEV 3-Phase Watertight Pin and Sleeve Plug With Standard Clamp, 480 VAC, 30 A, 3 Poles, 4 Wires, Red
Share Share Print Print
Leviton

Leviton® 430P7WLEV 3-Phase Watertight Pin and Sleeve Plug With Standard Clamp, 480 VAC, 30 A, 3 Poles, 4 Wires, Red

Short Description

Ensure reliable power connectivity with the Leviton® 430P7WLEV 3-Phase Watertight Pin and Sleeve Plug. Designed for industrial environments, this durable and weather-resistant plug delivers 480 VAC and 30 A performance, making it ideal for demanding applications.Enhanced by AI

Leviton® Pin and Sleeve Plug, 3-Phase Watertight, Series: LEV, 480 VAC, 30 A, 7-1/2 hp, 3 Pole, 4 Wires, NEMA 3R/4X/6P/12, Industrial Grade, IP66/IP67/IP68/IP69K Enclosure, -40 to 60 deg C, Screw Terminal, Nylon, Red, 3.62 in Dia x 6.57 in L Dimensions

MFG #: 430P7WLEV

EECO #: LV430P7WLEV

Brand: Leviton
UPC #: 078477921456
Attributes
Features
Documents
Product Information
Attributes
Color
Red
UNSPSC
39121404
Material
Nylon
Application
Food and Beverage Facilities, Washdown and Outdoor Applications
Terminal Type
Screw
Voltage Rating
480
Number of Wires
4
Enclosure
IP66/IP67/IP68/IP69K
Temperature Rating
-40 to 60
Type
3-Phase Watertight
Grade
Industrial
Series
LEV
Warranty
5 years Limited
Dimensions
3.62 in Dia x 6.57 in L
Horsepower
7-1/2
Amperage Rating
30
Features
  • Threaded housing design removes several screws making installation quicker and easier
  • Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long term submersion
  • NSF certified sanitary design trusted for use in food and beverage facilities
  • LEV series IEC 60309 pin and sleeve devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity
  • Plugs and connectors constructed of impact modified nylon and receptacles and inlets made of PBT
  • Nickel plated brass pins and sleeves for added corrosion-resistance
  • Watertight and dust tight rated to IP66, IP67, IP68 and IP69K
IDW_DOCUMENT_97b58a9ad322aae2b4d25b030708ccd88880ca6acc113042168afacc424cf8a2
IDW_DOCUMENT_32672cc2537165a1d07d7dd3b5afc8660ccb4f21b77ccaccbcd7a279a5807346
Leviton_330C4WLEV_Manual
Leviton_330C4WLEV_Technical_Bulletin
Leviton_330P4WLEV_Line_Drawing
