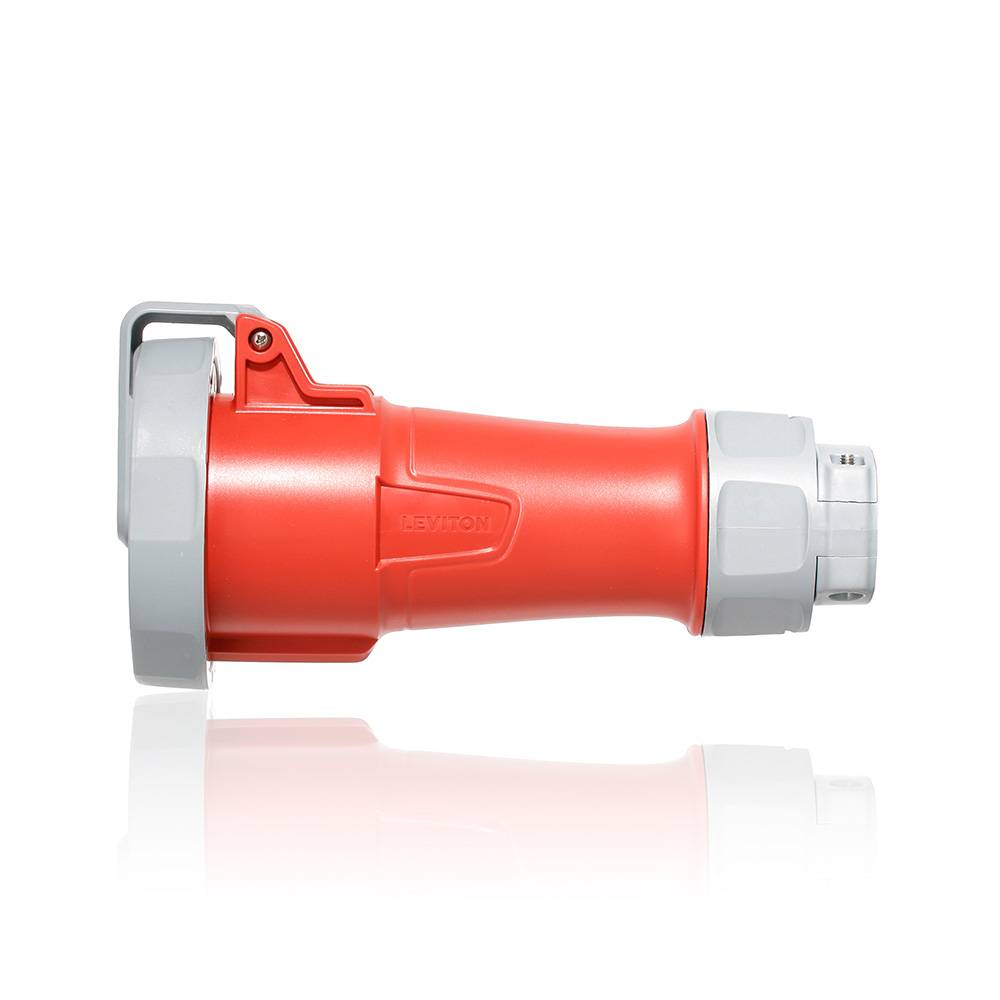

Leviton® 430C7WLEV 3-Phase 7-Clock Position Dust/Watertight Pin and Sleeve Connector With Standard Clamp, 480 VAC, 30 A, 3 Poles, 4 Wires, Red
Share Share Print Print
Leviton

Leviton® 430C7WLEV 3-Phase 7-Clock Position Dust/Watertight Pin and Sleeve Connector With Standard Clamp, 480 VAC, 30 A, 3 Poles, 4 Wires, Red

Short Description

Ensure reliable and safe connections with the Leviton® 430C7WLEV 3-Phase Dust/Watertight Connector. Designed for industrial use, this durable connector withstands harsh conditions while providing optimal performance at 480 VAC and 30 A.Enhanced by AI

Leviton® Pin and Sleeve Connector, 3-Phase 7-Clock Position Dust/Watertight, Series: LEV, 480 VAC, 30 A, 7-1/2 hp, 3 Pole, 4 Wires, NEMA 3R/4X/6P/12, Industrial Grade, IP66/IP67/IP68/IP69K Enclosure, -40 to 60 deg C, Screw Terminal, Nylon, Red, 7.84 in L x 4.06 in W Dimensions

MFG #: 430C7WLEV

EECO #: LV430C7WLEV

Brand: Leviton
UPC #: 078477921234
Attributes
Features
Documents
Product Information
Attributes
Color
Red
UNSPSC
39121404
Material
Nylon
Application
Food and Beverage Facilities, Washdown and Outdoor Applications
Terminal Type
Screw
Voltage Rating
480
Number of Wires
4
Enclosure
IP66/IP67/IP68/IP69K
Temperature Rating
-40 to 60
Type
3-Phase 7-Clock Position Dust/Watertight
Grade
Industrial
Series
LEV
Warranty
5 years Limited
Dimensions
7.84 in L x 4.06 in W
Horsepower
7-1/2
Amperage Rating
30
Features
  • Devices are designed to simplify your installation, endure the harshest environments and outlast the competition
  • Improved speed of assembly with threaded housings that have less screws for reduced installation time
  • Plugs and connectors constructed of impact modified nylon and receptacles and inlets made of PBT
  • Nickel plated brass pins and sleeves for added corrosion-resistance
  • Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive submersible IP68
