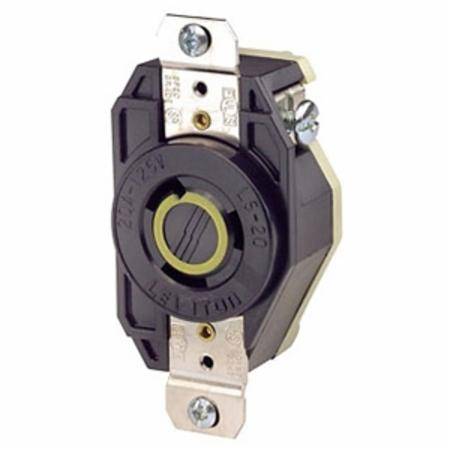

125 V 20 A, 2-Pole 3-Wire, Leviton Manufacturing Co. Inc. 2310 Black & White®, V-O-Max® Locking Device Receptacle, NEMA L5-20R, Black

Short Description

125 V, 20 A, 2-Pole, 3-Wire, NEMA L5-20R, Black, Nylon Body, Ultramid Face, Valox Base, Flush Mount, Grounding, Single, Locking Device Receptacle

Locking Device Receptacle; Type Single; Constructional Feature Impact/Chemical Resistant; Configuration L5-20R; Voltage Rating 125 Volt; Current Rating 20 Amp; Number of Poles 2; Number of Wires 3; Ground Type Grounding; Material Nylon (Body), Ultramid (Face), Valox (Base); Color Black; Wiring Back, Side; Mounting Flush; Approval UL 498, CSA C22.2; Wire Size 14 to 8 AWG (Solid/Stranded Copper); Contact Material Brass; Temperature Rating -40 to 60 Deg C; Application Industrial; Applicable Standard WD-1/6, ANSI C73, Federal Specification WC-596

MFG #: 2310

EECO #: LV2310

UPC #: 078477801109
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121406
Wiring
Back, Side
Approval
UL 498, CSA C22.2
Material
Nylon (Body), Ultramid (Face), Valox (Base)
Ground Type
Grounding
Current Rating
20 Amp
Voltage Rating
125 Volt
Number Of Poles
2
Number of Wires
3
Mounting
Flush
Type
Single
Configuration
L5-20R
Constructional Feature
Impact/Chemical Resistant
Features
  • Ul 94 V-O Flammability Rating, the Best Rating of any Material Used in Industrial Locking Flush Receptacles Available Today
  • Extra Thickness 0.05 Inch Nickel Plated Brass Mounting Strap for High Abuse Applications
  • Designed for Maximum Durability
  • Color Coded Voltage Rating on Face for Easy Identification
  • Lifetime Limited Warranty
LEVMFCE09221_1_4
LEVMFCE25495_E2_E5_E7
LEVMFCINST00379
Qty Unit price
Ea
1 $21.30

Slqt
1 $21.30

Stpk
1 $21.30

Unit
1 $21.30
