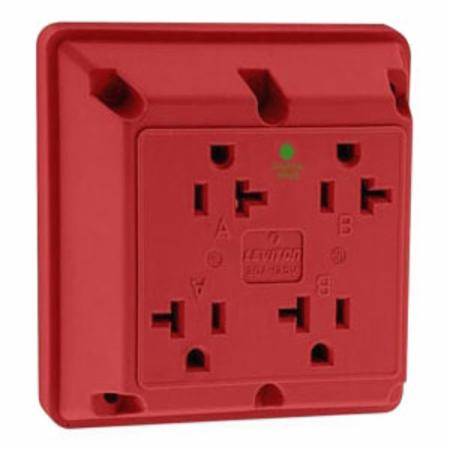

125 V 20 A, Leviton Manufacturing Co. Inc. 21254-HR Traditional® Straight Blade Quad Receptacle, Red

Short Description

125 V, 20 A, 2-Pole, 3-Wire, NEMA 5-20R, Red, Nylon Body/Face, Grounding, Industrial, Hospital Grade, Extra Heavy Duty, Straight Blade Quad Receptacle

Straight Blade Quad Receptacle; Configuration 5-20R; Voltage Rating 125 Volt; Current Rating 20 Amp; Number of Poles 2; Number of Wires 3; Ground Type Grounding; Material Nylon (Body/Face); Color Red; Grade Industrial, Hospital; Approval UL 498, CSA C22.2, ISO 9001; Strap Material Steel; Terminal Screw Material Brass; Temperature Rating -40 to 60 Deg C; Applicable Standard ANSI, NEMA WD-1/6

MFG #: 21254-HR

EECO #: LV21254HR

UPC #: 078477830840
Attributes
Features
Documents
Product Information
Attributes
Color
Red
UNSPSC
39121406
Approval
UL 498, CSA C22.2, ISO 9001
Material
Nylon (Body/Face)
Ground Type
Grounding
Current Rating
20 Amp
Voltage Rating
125 Volt
Number Of Poles
2
Number of Wires
3
Type
Heavy Duty, Straight Blad Quad
Grade
Industrial, Hospital
Configuration
5-20R
Features
  • Terminal Wiring Screws Fit Inside a Standard 1-Gang Wall Box
  • Adapter Plate Not Required
  • Impact Resistant Nylon Cover and Base for Strength and Resistance to Chemicals and Corrosives
  • Easy-to-Read Voltage and Amperage Rating Molded onto Smooth Face
  • Extra Heavy Duty, T-Type Triple-Wipe Bronze Contacts for Maximum Performance
  • Ground Holes Configured up or Down to be Outside Device, Accommodating up to 4 Fed Spec Size Straight or Angle Plugs
  • 8 Terminal Screws Accept up to 12 Solid or Stranded Copper Wire
  • Termination Anchor Holes for Easy Conductor Wiring
  • Exclusive Shield Wall Design Protects Ground Connection from Contact with Live Circuit Conductors
  • A and B Molded on Face and Back for Easy Identification of Receptacle Pairs for Split Circuit Conversion
  • Convenient Built-In Strip Gauge
LEVMFCE09182_1_3
LEVMFCE22407_B17
Qty Unit price
Ea
1 $26.74

Slqt
1 $26.74

Stpk
1 $26.74

Unit
1 $26.74
