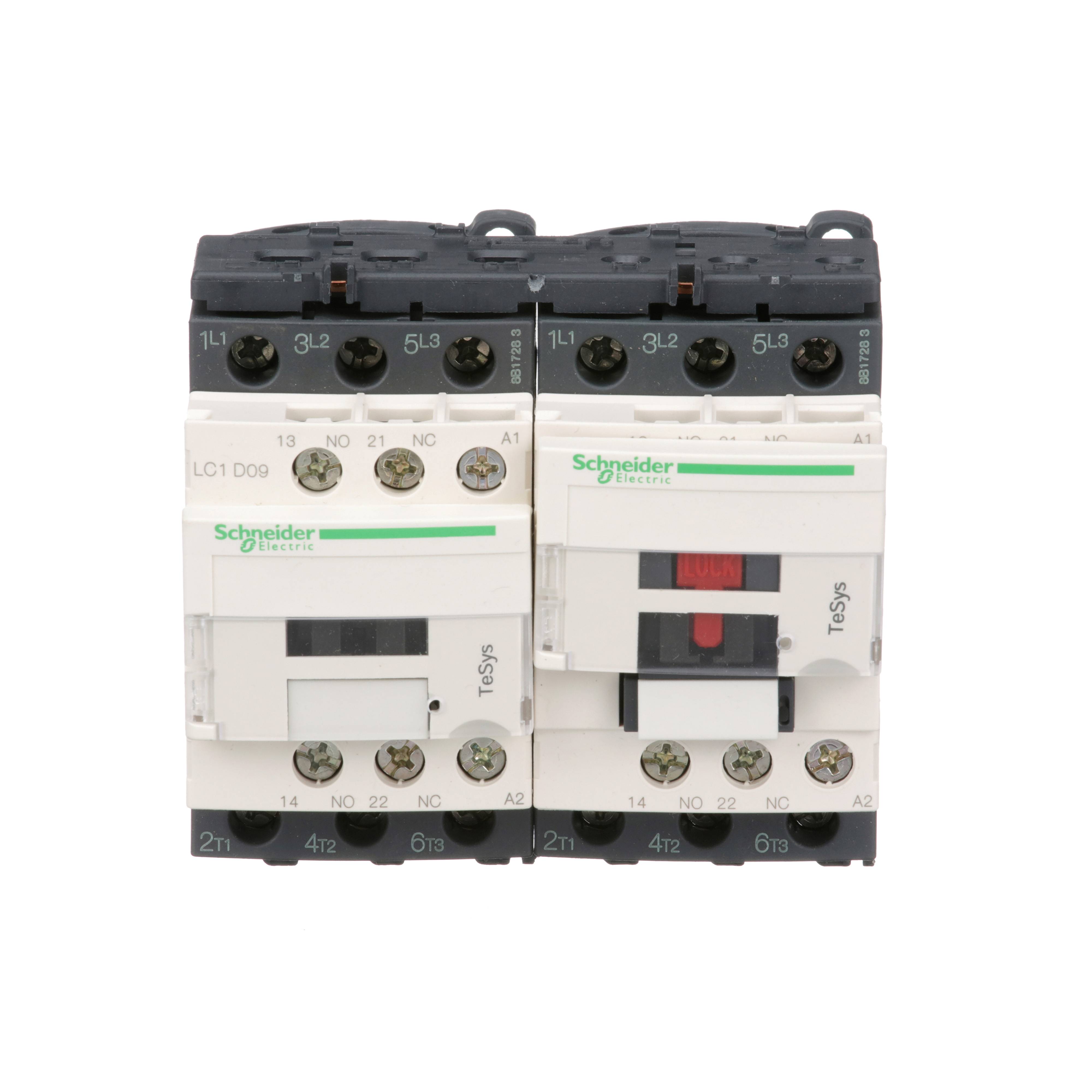

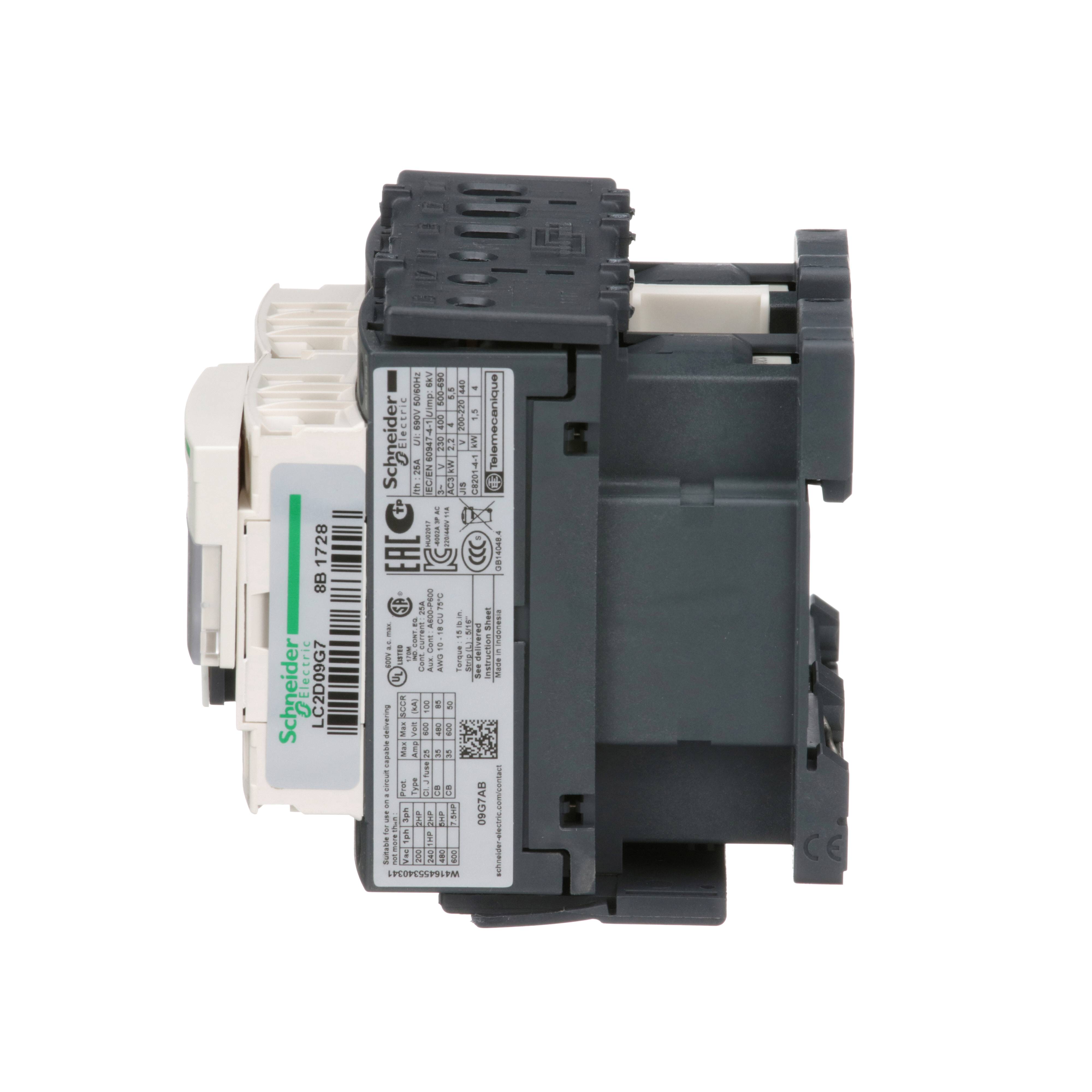

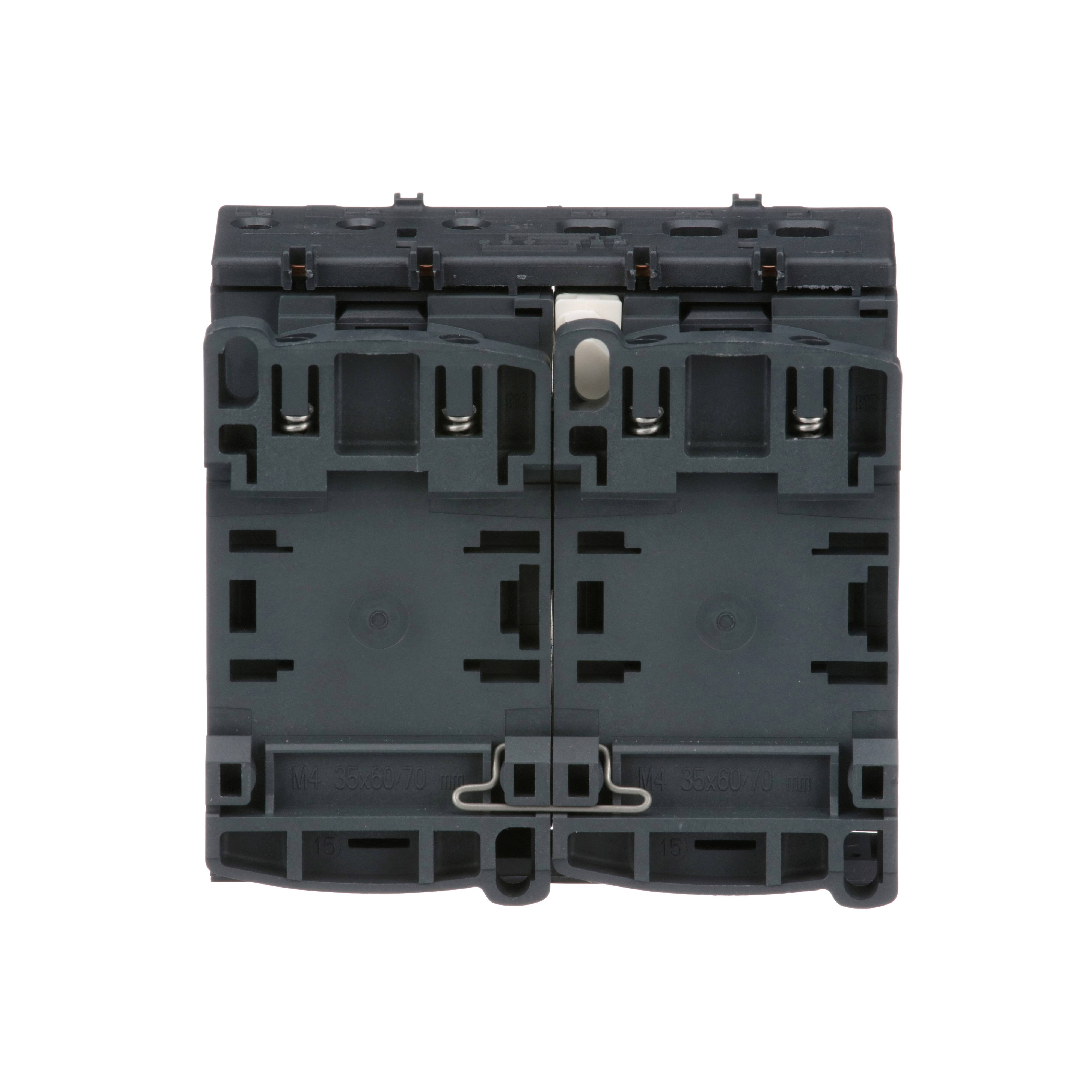

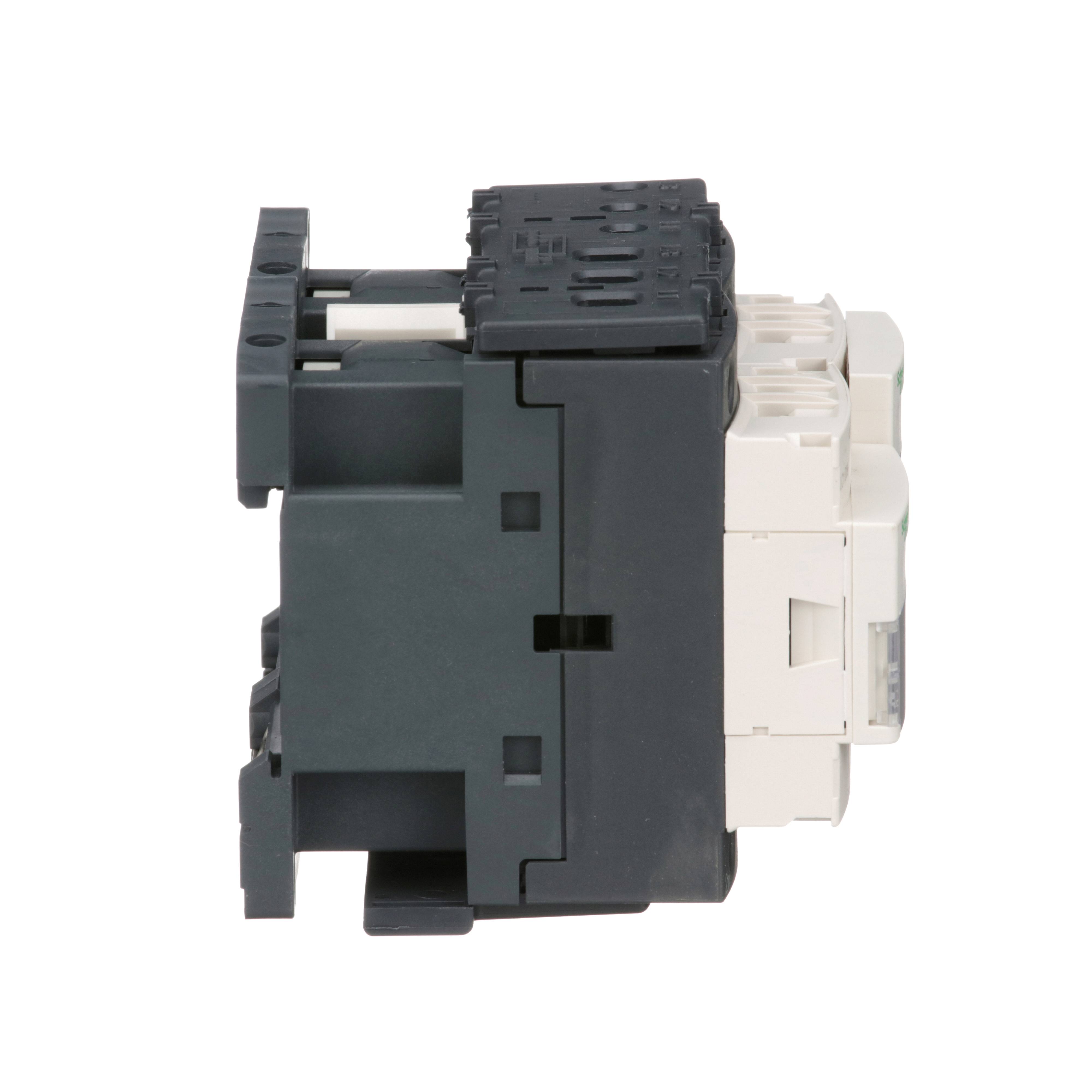

Square D™ TeSys™ D LC2D09G7 D-Line Mechanical Standard IEC Contactor, 120/690 VDC, 300 VDC V Coil, 9/25 A, 3NO Contact, 3 Poles

Short Description

Enhance your electrical control solutions with the Square D™ TeSys™ D LC2D09G7 D-Line Mechanical Standard IEC Contactor. Designed for versatility and reliability, this contactor operates efficiently at 120/690 VDC with a robust 9/25 A maximum load current. Its compact design and durable construction make it ideal for various applications, ensuring optimal performance in demanding environments.Enhanced by AI

Square D™ TeSys™ D IEC Contactor, D-Line Mechanical Standard, Series: LC2D, 120/690 VDC, 300 VDC Coil, 9/25 A Maximum Load Current, 7.5/7.7 VA Coil, 3 Pole, 60 Hz, 0.2/1.56 W, Reversing Contact, 3NO, 1NO-1NC Auxiliary Contacts, 10/60 A at 600 VAC, 25/60 A at 600 VAC Contact, Screw Clamp, 77/86/90 mm, Screw Clamp Terminal, IP2X, 3600 cycles/hr Operating Cycles, -20 to 60/-40 to 70 deg C Operating, Rail/Surface Mount, 90 mm W x 86 mm D x 77 mm H

MFG #: LC2D09G7

EECO #: LRLC2D09G7

Brand: Square D
UPC #: 785901207382
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121529
Application
Motor Control and Resistive Load Applications
Coil Voltage
120/690 VDC, 300 VDC
Contact Type
Reversing
Mounting Type
Rail/Surface
Terminal Type
Screw Clamp
Contact Rating
10/60 A at 600 VAC, 25/60 A at 600 VAC
Enclosure Type
IP2X
Connection Type
Screw Clamp
Frequency Rating
60
Contact Configuration
3NO
Operating Temperature
-20 to 60/-40 to 70
Size
77/86/90
Type
D-Line Mechanical Standard
Series
LC2D
Wattage
0.2/1.56
Includes
Protective Cover
Dimensions
90 mm W x 86 mm D x 77 mm H
Maximum Load Current
9/25
Features
  • 25 A at 60 deg C for power circuit and 10 A at 60 deg C for signaling circuit
IDW_DOCUMENT_4ba5bcb6a5e5fd52838854288edfe235d0a81ed57340e9dba8e91316207f324b
IDW_DOCUMENT_8b5aad9b5548b4be53b5e21854e43d9101a80bba7c618ee0e4aa523bf0187032
IDW_DOCUMENT_b1a8823c5fd41d2ea199d2a2c4a6c9da37dae3b7105410b9609d387c8dd1fe49
Qty Unit price
Ea
1 $133.65
