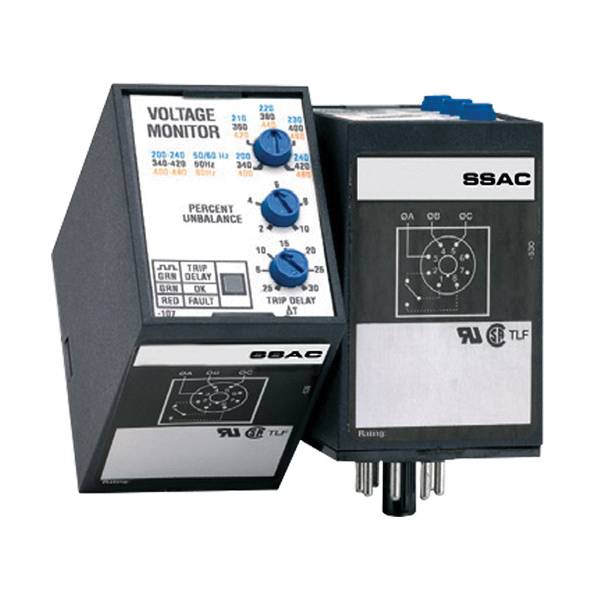

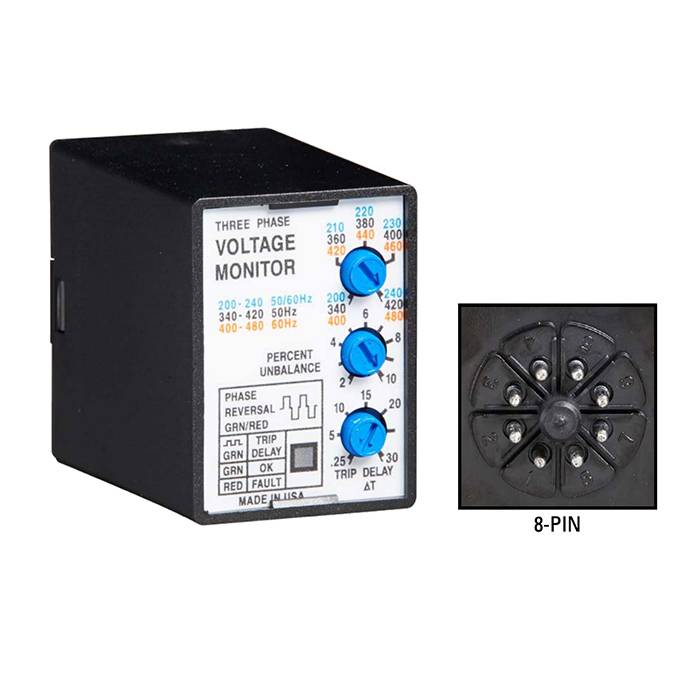

Littelfuse® PLMU11 Voltage Monitoring Relay, 200 to 480 VAC, 8 Pin, SPDT Contact

Short Description

The PLMU11 continuously measures the voltage of each of the three phases to provide protection for 3-phase motors and sensitive loads. Its microcontroller senses under and overvoltage, voltage unbalance, phase loss, and phase reversal. Protection is provided even when regenerated voltages are present. Universal voltage operation from 200 to 480 VAC and standard base connection allows the PLMU11 to replace hundreds of competitive part numbers.

Littelfuse® Voltage Monitoring Relay, Series: PLMU, 200 to 480 VAC, 10 A, 1/4 hp at 125 VAC, 1/3 hp at 250 VAC, 8 Pins, SPDT, -40 to 140 deg F, Plug-In/Socket Mount

MFG #: PLMU11

EECO #: LFPLMU11

Brand: Littelfuse
UPC #: 079458997989
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122332
Mounting Type
Plug-In/Socket
Number of Pins
8
Voltage Rating
200 to 480
Temperature Rating
-40 to 140
Series
PLMU
Horsepower
1/4 hp at 125 VAC, 1/3 hp at 250 VAC
Amperage Rating
10
Features
  • Model: Littelfuse® PLMU11 Voltage Monitoring Relay
  • Voltage Range: 200 to 480 VAC
  • Current Rating: 10 A
  • Horsepower Ratings: 1/4 hp at 125 VAC; 1/3 hp at 250 VAC
  • Contact Type: Single Pole Double Throw (SPDT)
  • Pin Configuration: 8 Pins
  • Operating Temperature Range: -40 to 140 degrees Fahrenheit
  • Mounting Type: Plug-In/Socket Mount

Enhanced by AI

IDW_DOCUMENT_74e52f0096c064beec8be6d2df2760b1360fc8673ee1bb5ebf21caaecfefa25e
Qty Unit price
Ea
1 $91.35
