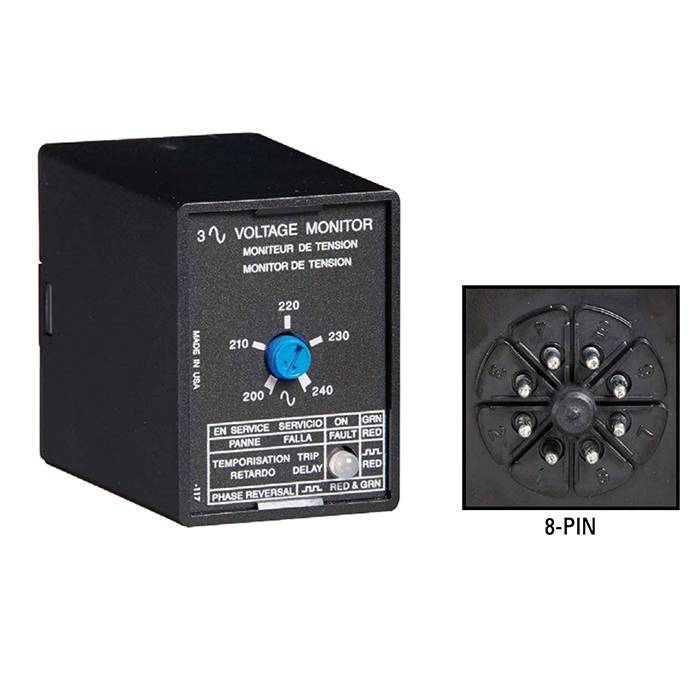

Littelfuse® SSAC® PLM6405 3-Phase Electro Mechanical Voltage Monitoring Relay, 240 VAC, 8 Pin, SPDT/(1 Form C) Contact

Short Description

The PLM series is a 3-phase voltage monitor that continuously monitors each of the three phases. Monitors both delta and wye systems and no connection to neutral is required. The microcontroller circuit design protects against undervoltage, voltage unbalance, phase loss and phase reversal. Protection is assured when regenerated voltages are present.

Littelfuse® SSAC® Voltage Monitoring Relay, 3-Phase Electro Mechanical, Series: PLM, 240 VAC, 50/100 Hz Frequency, SPDT/(1 Form C) Contact Configuration, 8 Pins, Plug-In/Socket Mounting, Quick Octal Plug-In Terminal, 5 s Trip Delay, 3.2 in H x 2.39 in W x 1.78 in D Dimensions

MFG #: PLM6405

EECO #: LFPLM6405

Brand: Littelfuse
UPC #: 079458997880
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122332
Mounting Type
Plug-In/Socket
Terminal Type
Quick Octal Plug-In
Number of Pins
8
Voltage Rating
240
Frequency Rating
50/100
Contact Configuration
SPDT/(1 Form C)
Type
3-Phase Electro Mechanical
Series
PLM
Warranty
10 Years
Dimensions
3.2 in H x 2.39 in W x 1.78 in D
Features
  • Quick octal 8-pin mounting small footprint with universal mounting ideal replacement for hundreds of competitive part numbers
  • Proprietary microcontroller based circuitry, constant monitoring of 1-phase, low voltage, high voltage, voltage unbalance, phase reversal
  • LED diagnostics, quick visual indicator for trip versus normal operation
  • Isolated, 10 A, SPDT output contacts, allows control of loads for AC voltages
  • Adjustable nominal voltage setpoint allows setting for specific application voltage to optimize protection
  • Simple 3-wire connection for delta or wye systems, allows flexibility across wide range of systems
  • ASME A17.1 rule 210.6 complies with safety codes for elevators, escalators, moving walkways
  • NEMA MG1 14-30, 14-35 complies with safety codes for motors and generators
  • IEEE C62.41-1991 level B complies with safety codes for surge and voltage protection
IDW_DOCUMENT_bfe5c412494d34a09506a48071854d75f850281557a2b914a520d6153adbc535
Qty Unit price
Ea
1 $73.97
