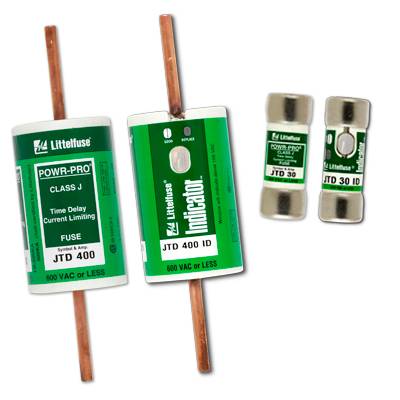

Littelfuse® POWR-GARD® JTD350 Current Limiting Time Delay Fuse, 350 A, 600 VAC/500 VDC, 200/20 kA Interrupt, J Class, Cartridge Body
Share Share Print Print
Littelfuse, Inc.

Littelfuse® POWR-GARD® JTD350 Current Limiting Time Delay Fuse, 350 A, 600 VAC/500 VDC, 200/20 kA Interrupt, J Class, Cartridge Body

Short Description

The Littelfuse® POWR-PRO® JTD_ID Indicator Class J fuse provides visual blown fuse indication and maximum protection in a compact package. The compact Class J package was designed specifically for circuits where space is at a premium. The current limiting time delay JTD_ID offers a patented true dual-element design that is ideal for use in circuits with high inrush currents. Superior performance characteristics of JTD_ID Indicator fuses reduce nuisance fuse opening and the blown fuse indication reduces downtime and increases safety.

Littelfuse® POWR-GARD® Time Delay Fuse, Current Limiting, Series: JTD, Non-Indicating, 350 A, 600 VAC/500 VDC, 200/20 kA Interrupt, Class: J, Knife Blade Terminal, Holder Mounting, Cartridge Body, Dual Element, Melamine, 2 in Dia x 7-1/8 in L Body

MFG #: JTD350

EECO #: LFJTD350

Brand: Littelfuse
UPC #: 079458202335
Attributes
Features
Documents
Product Information
Attributes
Class
J
UNSPSC
39121609
Material
Melamine
Application
Motor Control Centers Applications
Mounting Type
Holder
Terminal Type
Knife Blade
Voltage Rating
600 VAC/500 VDC
Type
Current Limiting
Series
JTD
Amperage Rating
350
Features
  • Reduced down time - A glance at the indicating window of a JTD_ID indicator fuse pinpoints open fuses immediately
  • Machine operators can immediately determine that there is an open fuse and request maintenance personnel to bring the proper replacement
  • Reduce nuisance opening - indicator fuses have superior time-delay and cycling characteristics they can be used on a variety of applications, thus decreasing fuse inventory
  • Reduce fuse inventory - Because JTD_ID indicator fuses have superior performance characteristics they can be used on a variety of applications, thus decreasing fuse inventory
  • Reduce equipment damage - indicator fuses provide superior overload and short circuit protection that can reduce equipment damage
  • Indicator fuses also provide IEC type II "No Damage" protection to IEC and NEMA type motor starters
  • Reduce accidents the JTD_ID indicator fuse improves safety by minimizing exposure to live circuits
  • IEC type 2 protection
  • 200 kA rms symmetrical at 600 VAC/20 kA at 500 VDC
