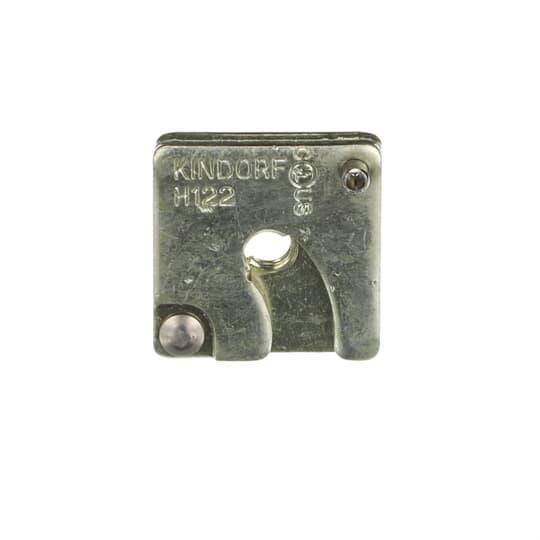

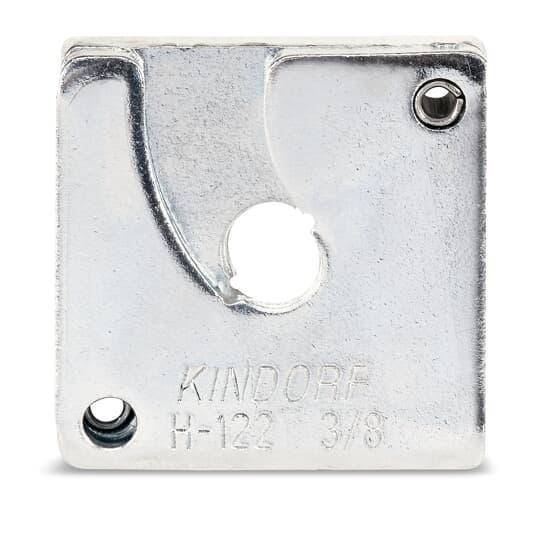

Kindorf® Trapnut® H-122-3/8 Strut Fastener, 3/8-16 UNC Thread, For Use With Kindorf® Channel, Steel

Short Description

The unique scissor action of the Trapnut™ Strut Fastener closes at any desired position on the threaded rod. Once closed, precision threads trap the threaded rod for a sturdy hold that can be adjusted up or down for fine-tune positioning. While the versatile Trapnut™ has a locking pin that holds it in the desired position, it can also be removed and reused. Unlike a Hex Nut, there is no need to thread the Trapnut™ from either end of the rod, saving valuable time on the job. While the Trapnut™ Strut Fastener is a time-saver for new construction, it is invaluable for retro-fit applications. Rather than disassembling an existing trapeze to run additional conduit above it, Trapnut™ can be clamped between the existing trapeze and the beam clamp for a speedy retro-fit solution. It's ideal for applications where the rod ends are not accessible. Trapnut™ has a sturdy steel construction that is load bearing, so you can be confident of a solid installation. And, Trapnut™ functions as a Hex Nut, square washer and flat washer combined, so there are fewer parts to keep up with on the job.

Kindorf® Trapnut® Strut Fastener, 3/8-16 UNC, For Use With: Kindorf® Channel, Steel, Galv-Krom
MFG #: H-122-3/8

EECO #: KNH1223/8

Brand: Kindorf®
UPC #: 785991044225
Attributes
Features
Documents
Product Information
Attributes
Finish
Galv-Krom
UNSPSC
39121701
Material
Steel
Thread Size
3/8-16 UNC
Suitable For Use With
Kindorf® Channel
Features
  • Fewer parts, less installation time results labor savings
  • Precision threads trap the threaded rod for a sturdy hold that can be adjusted up or down for fine-tune positioning
  • Functions as a hex nut, square washer, and flat washer combined
  • Locking pin holds it in the desired position
  • Sturdy steel construction that is load bearing
