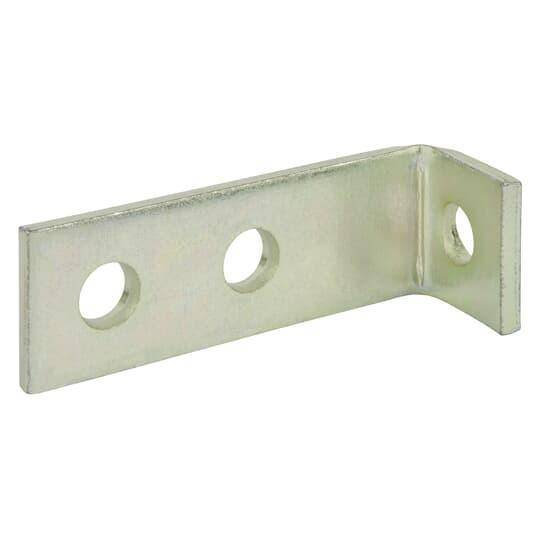

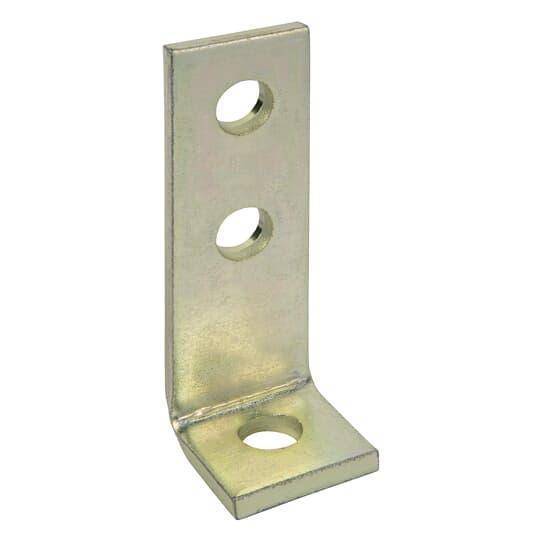

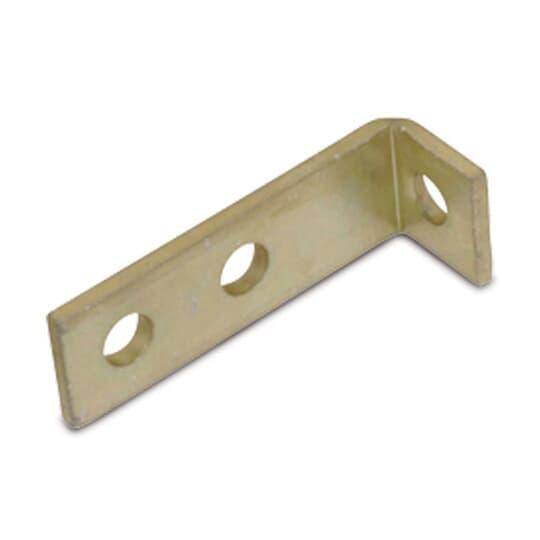

Kindorf® B-916-SS Angle Connector, 3 Holes, 4-1/2 in L x 1-1/2 in W, Stainless Steel

Short Description

The Kindorf® channel system is designed so that the maximum number of support and framing applications can be constructed with a minimum amount of labor and materials. The 1-1/2 in dimension in the channel, hole spacing and fittings means all parts fit together all the time. This modular system provides maximum flexibility in field applications and results is labor savings and reduced material waste.

Kindorf® Angle Connector, 3 Holes, 4-1/2 in Length, 1-1/2 in Width, 1/4 in Thickness, Stainless Steel, Silver
MFG #: B-916-SS

EECO #: KNB916SS

Brand: Kindorf®
UPC #: 785991007022
Attributes
Features
Documents
Product Information
Attributes
Color
Silver
Length
4-1/2
UNSPSC
31162307
Material
Stainless Steel
Application
For used as side beam connector to suspend 1/2 in hanger rod
Width
1-1/2
Thickness
1/4
Number of Holes
3
Features
  • 1-1/2 in length from beam
  • 9/16 in holes on 1-1/2 in centers
  • 1.7687 in mounting hole width
Kindorf_B_915_Specification_Sheet
