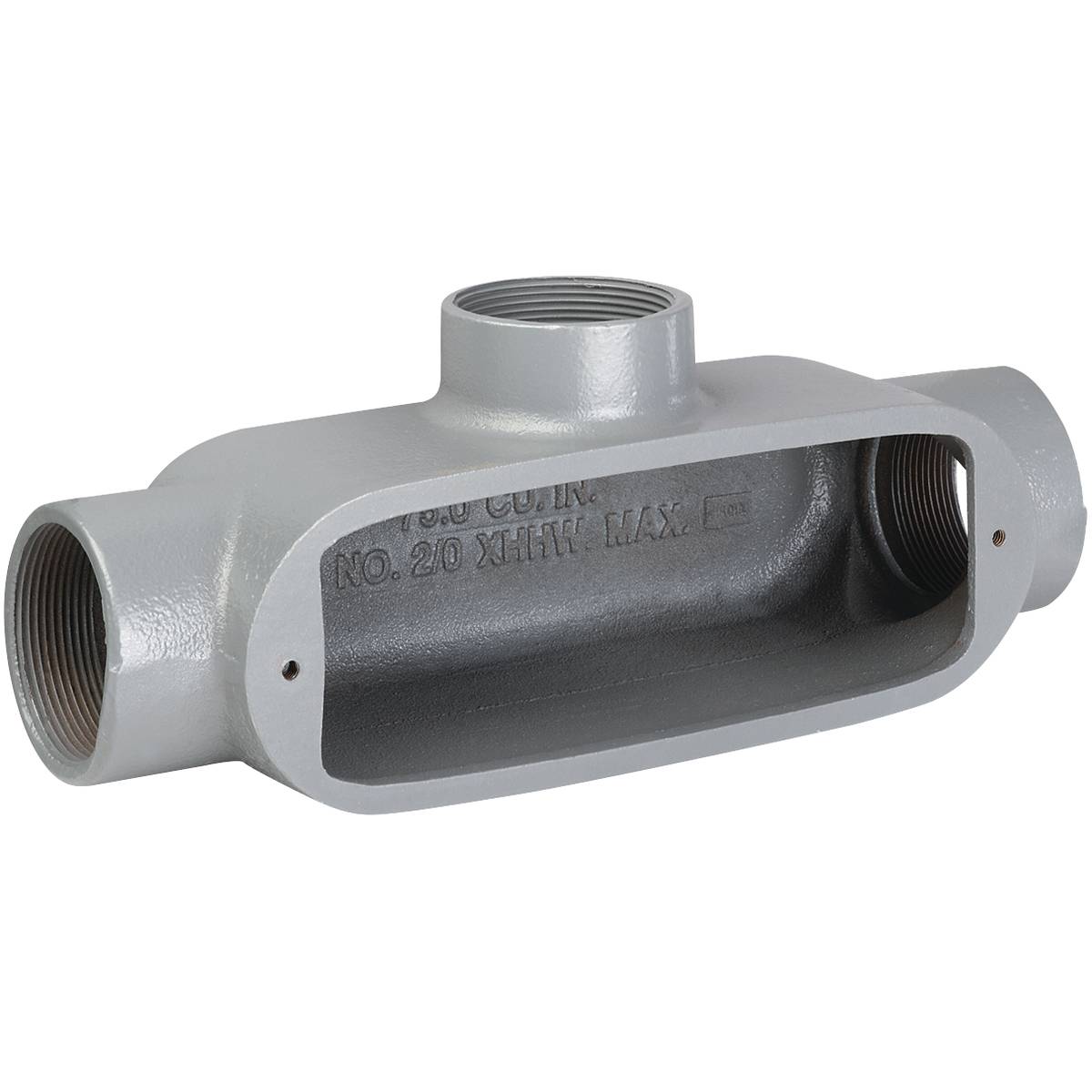

Killark® OT-2 O Series Type T Conduit Body, 3/4 in Hub, 7 cu-in Capacity, Copper Free Aluminum, Powder Coated
Share Share Print Print
Hubbell

Killark® OT-2 O Series Type T Conduit Body, 3/4 in Hub, 7 cu-in Capacity, Copper Free Aluminum, Powder Coated

Short Description

O series conduit bodies are our most compact conduits that apply highest durability with the securest installation. The O series is available in iron and aluminum, with superior corrosive protected electro-statically applied paint.

Killark® Conduit Body, Type T, Series: O Series, 3/4 in Hub, 3 Hubs, 7 cu-in Capacity, Thread Connection, Copper Free Aluminum, Powder Coated, Gray, 2-3/16 in H x 6-1/16 in W x 1-5/8 in D Dimensions

MFG #: OT-2

EECO #: KIOT2

Brand: Killark
UPC #: 783936530024
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Powder Coated
UNSPSC
39131708
Hub Size
3/4
Material
Copper Free Aluminum
Number of Hubs
3
Connection Type
Thread
Type
Type T
Series
O Series
Capacity
7
Dimensions
2-3/16 in H x 6-1/16 in W x 1-5/8 in D
Features
  • Raintight when used with gasketed covers
  • Malleable iron suitable for use in concrete
  • Stainless steel screws on stamped and cast covers
  • Interchangeable with competitive products
  • Tapered threaded hubs (NPT)
  • To provide access to conductors for pulling, splicing, and maintenance
  • Copper-free aluminum (less than 4/10 of 1%)
  • Suitable for wet locations when used with gasketed covers
  • Suitable for use in hazardous location applications when installed according to NEC articles 501.10(b), class I, div. 2, (suitable for use in class I zone 2 applications) 502.10 and 503.10
  • Electrostatically applied powder coat
