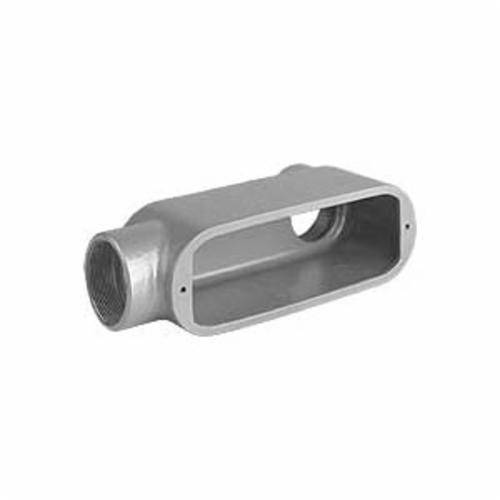

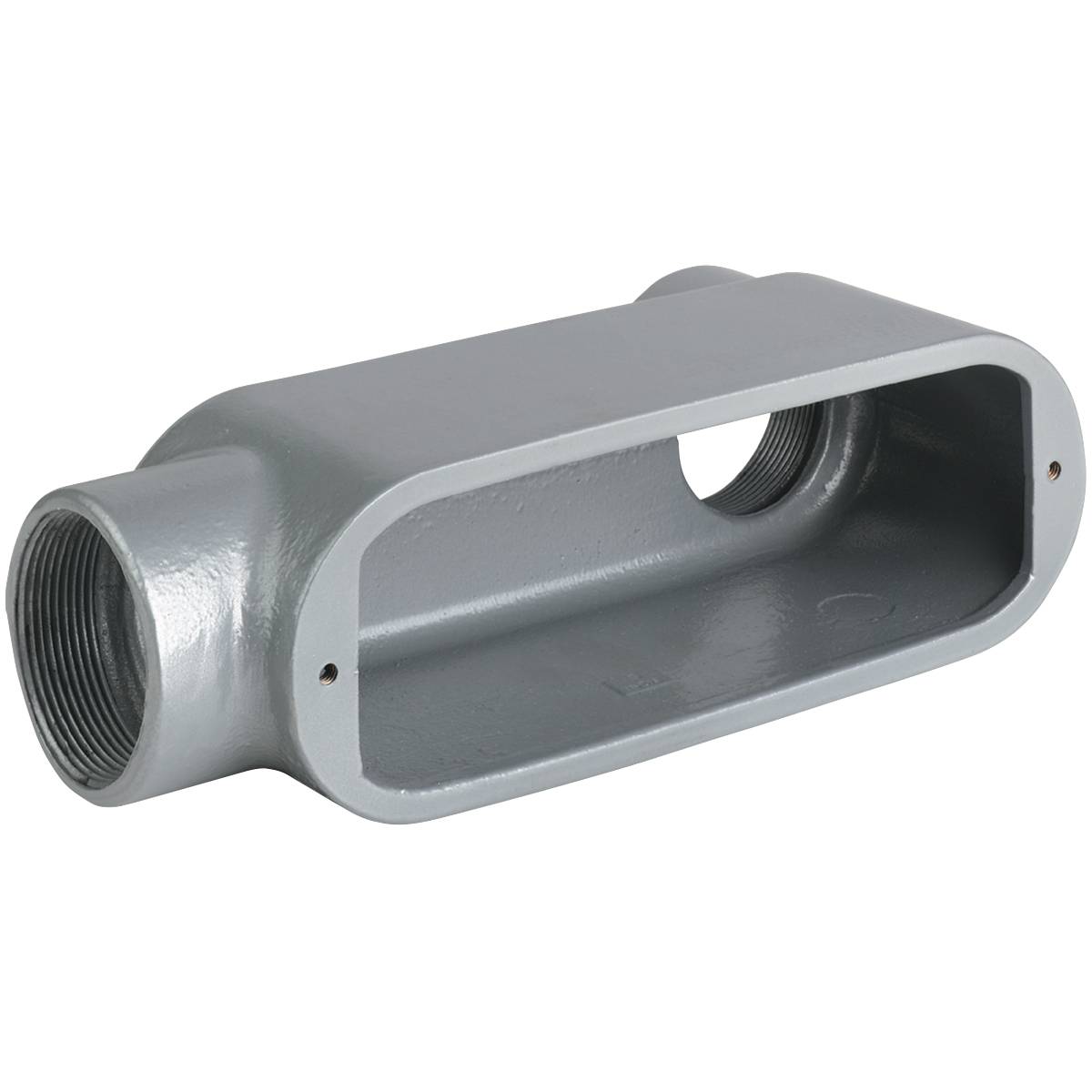

Killark® Duraloy® 5 OLB-3 O Series Type LB Conduit Body, 1 in Hub, 7 Form, 12 cu-in Capacity, Aluminum, Powder Coated

Short Description

Killark® has become a global provider of harsh and hazardous location products. The Killark® range encompasses industrial and explosion proof fittings engineered to withstand the toughest extremes in climate from the dry and arid Middle East, tropical Asia to frozen Northern Canada.

Killark® Duraloy® 5 Conduit Body, Type LB, Series: O Series, 1 in Hub, 2 Hubs, 12 cu-in Capacity, 7 Form, Thread Connection, Aluminum, Powder Coated, Gray, 6-5/8 in L x 1-7/8 in W x 2-29/32 in H Dimensions

MFG #: OLB-3

EECO #: KIOLB3

Brand: Killark
UPC #: 783936490274
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Powder Coated
UNSPSC
39131708
Hub Size
1
Material
Aluminum
Application
Rigid/IMC Conduit Applications
Number of Hubs
2
Connection Type
Thread
Type
Type LB
Series
O Series
Capacity
12
Dimensions
6-5/8 in L x 1-7/8 in W x 2-29/32 in H
Features
  • Tapered threaded hubs (NPT)
  • Raintight when used with gasketed covers
  • Malleable iron suitable for use in concrete
  • Interchangeable with competitive products
  • Stainless steel screws on stamped and cast cover
  • Suitable for use in hazardous location applications when installed according to NEC articles 501.10(b), class I, division 2, (suitable for use in class I zone 2 applications) 502.10 and 503.10
  • To provide access to conductors for pulling, splicing and maintenance
  • Electrostatically applied powder coated
  • Copper free aluminum (less than 4/10 of 1%)
