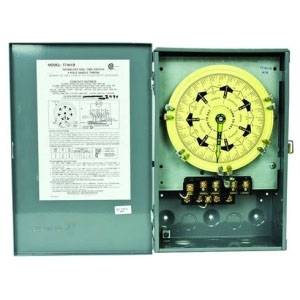

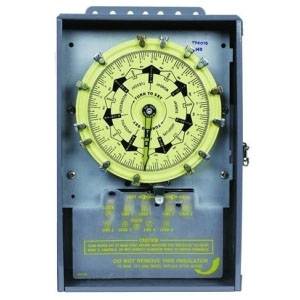

Intermatic Incorporated T7401B Electromechanical Time Switch

9" x 3.75" x 13.125", 120 VAC 60 Hz, 40 A, 5 HP 1-Phase/10 HP 3-Phase, 3.5 Hr ON/OFF Time, 1NO, 4SPST, Gray, Metal, 7 Day, Electromechanical Time Switch

Electromechanical Time Switch; Type 7 Day; Minimum ON Time 3.5 Hour; Minimum OFF Time 3.5 Hour; Switch Type 1NO, 4SPST; Current Rating 40 Amp at 120 to 480 Volt AC (Resistive), 40 Amp at 120/208/240/277 Volt AC (Inductive/Tungsten), 16 Amp at 277 Volt AC (Ballast), 1000 Volt Amp (Pilot Duty); Voltage Rating 120 Volt AC at 60 Hertz; Power Rating 2 HP (24 FLA) at 120 Volt AC, 5 HP (28 FLA) at 240 Volt AC 1-Phase, 7-1/2 HP (28 FLA) at 208 Volt AC, 10 HP (28 FLA) at 240 Volt AC 3-Phase; Reserve Power No; Operating Temperature -40 to 130 Deg F; Enclosure NEMA 1; Material Metal; Finish Gray; Size 9 Inch Width x 3.75 Inch Depth x 13.125 Inch Height; Application Heating, Air Conditioning, Pump, Indoor/Outdoor Lighting, Motor, Sign, Fan; Approval UL (Canada and US), CSA (Canada and US); Knockout Size (1) 1/2 Inch and 3/4 Inch Combination (Side/Back), (2) 1/2 Inch, 3/4 Inch and 1 Inch Combination (Bottom); Wire Size 14 to 8 AWG
