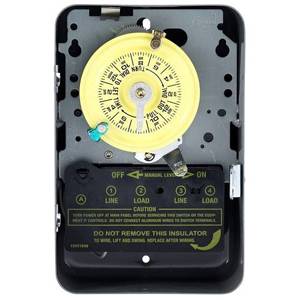

Intermatic Incorporated T103 Electromechanical Time Switch

5-1/8" x 3-7/16" x 7-7/8", 125 VAC at 60 Hz, 40 A, 2 HP, DPST, Gray, Steel, 24 Hr, Electromechanical Time Switch

Electromechanical Time Switch; Type 24 Hour; Maximum Number of Operations 1 to 12 per Day; Minimum ON Time 1 Hour; Minimum OFF Time 1 Hour; Switch Type DPST; Current Rating 40 Amp at 120 to 480 Volt AC (Resistive), 40 Amp at 120 to 277 Volt AC (Tungsten/Inductive), 1000 Volt Amp at 120 to 277 Volt AC (Pilot Duty); Voltage Rating 125 Volt AC at 60 Hertz; Power Rating 2 HP at 120 Volt AC (24 FLA), 5 HP at 240 Volt AC (28 FLA) 1-Phase; Reserve Power No; Operating Temperature -40 to 130 Deg F; Enclosure NEMA 1; Material Steel; Finish Gray; Size 5-1/8 Inch Width x 3-7/16 Inch Depth x 7-7/8 Inch Height; Application Indoor, Sign, Pool Heater, Blower, Electric Fence, Pump, Fan, Conveyer, Other Electrical Load; Approval UL (Canada and US), CSA (Canada and US); Maximum Power Consumption 3 Watt; Wire Size 14 to 8 AWG; Knockout Dimension (1) 1/2 Inch and (1) 3/4 Inch (Side/Back), (2) 1/2 Inch and (2) 3/4 Inch (Bottom); Includes On/Off Tripper
