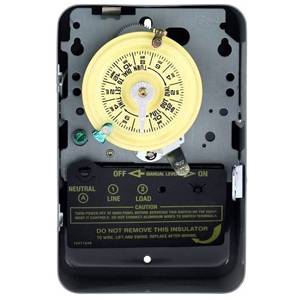

PrintIntermatic Incorporated T101 Electromechanical Time Switch
5" x 3" x 7-3/4", 125 VAC at 60 Hz, 40 A, 2 HP, SPST, Gray, Steel, 24 Hr, Electromechanical Time Switch
Electromechanical Time Switch; Type 24 Hour; Maximum Number of Operations 1 to 12 per Day; Minimum ON Time 1 Hour; Minimum OFF Time 1 Hour; Switch Type SPST; Current Rating 40 Amp at 120 to 480 Volt AC (Resistive), 40 Amp at 120 to 277 Volt AC (Tungsten/Inductive); Voltage Rating 125 Volt AC at 60 Hertz; Power Rating 2 HP at 120 Volt AC (24 FLA); Reserve Power No; Operating Temperature -40 to 130 Deg F; Enclosure NEMA 1; Material Steel; Finish Gray; Mounting Enclosure; Size 5 Inch Width x 3 Inch Depth x 7-3/4 Inch Height; Application Indoor, Post Lantern, Sign, Pool Heater, Filter, Hydro chlorinator, Air Conditioning, Blower, Electric Fence, Pump, Heating/Ventilating System, Music and Signal System, Fan, Poultry Fogger, Conveyer; Approval UL (Canada and US), CSA (Canada and US); Includes On/Off Tripper; Power Consumption 3 Watt; Wire Size 14 to 8 AWG; Knockout Size (1) 1/2 Inch and (1) 3/4 Inch (Side/Back), (2) 1/2 Inch and (2) 3/4 Inch (Back)
EECO #: INT101
| Qty | Unit price |
|---|---|
| Ea | |
| 1 | $54.91 |
|
Slqt |
|
| 1 | $54.91 |
|
Stpk |
|
| 1 | $54.91 |
|
Unit |
|
| 1 | $54.91 |
