Intermatic Incorporated FM1STUZ-120U Electromechanical Timer Module

Short Description

2.36" x 1.25" x 2.36", 120 VAC at 60 Hz, 21 A, 2 HP, SPDT, 24 Hr, Electromechanical Timer Module

Electromechanical Timer Module; Type 24 Hour; Minimum ON Time 15 Minute; Minimum OFF Time 15 Minute; Number of Circuits 1; Switch Type SPDT; Current Rating 21 Amp at 120 to 250 Volt AC (Resistive); Voltage Rating 120 Volt AC at 60 Hertz; Power Rating 1 HP at 120 Volt AC, 2 HP at 250 Volt AC (Motor), 1350 Watt at 120 Volt AC (Tungsten); Reserve Power No; Operating Temperature -40 to 185 Deg F, -4 to 131 Deg F with Battery Backup; Mounting Panel; Size 2.36 Inch Width x 1.25 Inch Depth x 2.36 Inch Height; Application Commercial Refrigeration, Hot Water Pump Circulation, Lighting Panel Control, Bug and Pest Control Systems; Approval UL (Canada and US), CSA (Canada and US), CE; RoHS Compliant; Power Consumption 1 Volt Amp; Wiring Connection 1/4 Inch Quick Connect Terminal

MFG #: FM1STUZ-120U

EECO #: INFM1STUZ120U

UPC #: 614573121019
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122208
Approval
UL (Canada and US), CSA (Canada and US), CE
Application
Commercial Refrigeration, Hot Water Pump Circulation, Lighting Panel Control, Bug and Pest Control Systems
Power Rating
1 HP at 120 Volt AC, 2 HP at 250 Volt AC (Motor), 1350 Watt at 120 Volt AC (Tungsten)
Current Rating
21 Amp at 120 to 250 Volt AC (Resistive)
Voltage Rating
120 Volt AC at 60 Hertz
Mounting
Panel
Operating Temperature
-40 to 185 Deg F, -4 to 131 Deg F with Battery Backup
Size

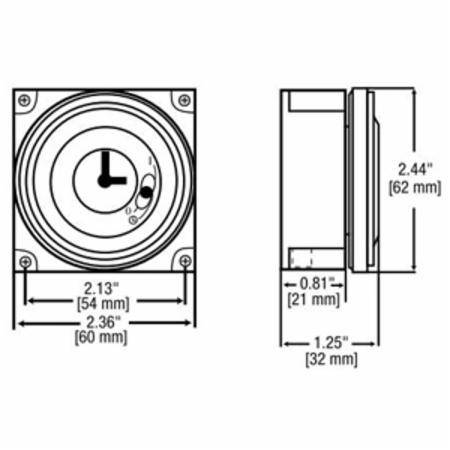

2.36 Inch Width x 1.25 Inch Depth x 2.36 Inch Height
Type
24 Hour
Switch Type
SPDT
Reserve Power
No
Minimum ON Time
15 Minute
Minimum OFF Time
15 Minute
Number of Circuits
1
Features
  • The FM1 Series Timer Modules are Designed to be Integrated Inside of a Machine Control Panel, Circuit Board or Other Equipment
  • They are a Simple and Low Cost Alternative for Applications that Do Not Require More than 21 Amp or 2 HP, 240 Volt AC
  • The FM1 is Designed for 24-Hour or 7-Day Control or Overriding a Functional Typical State of a Heating
  • 21 Amp SPDT Switch
  • Captive Trippers with 15-Minute Intervals on 24-Hour Models and 2-Hour Intervals on 7-Day Models
  • 7-Day Carry-Over Battery Backup on Q Models
  • Noise Immune Ideal for Robust Applications
  • Synchronous Drive or Quartz Drive Q Models with Self-Recharging Battery Backup
  • True Clock Face, Easy to Set
  • Available with or without Override
  • Compact Size
  • RoHS Compliant
INTMATE00768_1_2
INTMATE00795_5
INTMATE00826_47
Qty Unit price
Ea
1 $36.06

Slqt
1 $36.06

Stpk
1 $36.06

Unit
1 $36.06
