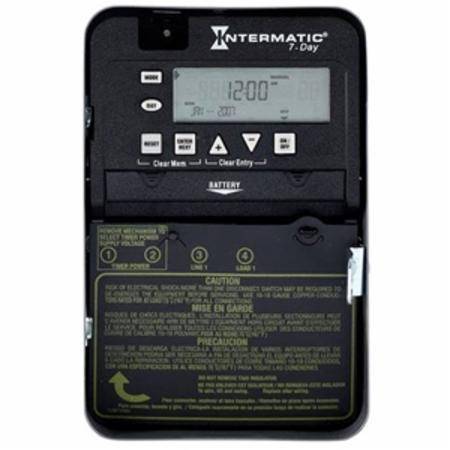

Intermatic Incorporated ET1705C Electronic Time Switch

5" x 3" x 7-3/4", 120/208/240/277 VAC at 50/60 Hz, 1-Circuit, SPST, Gray, Steel Enclosure, 7 Day, Electronic Time Switch

Electronic Time Switch; Type 7 Day; Maximum Number of Operations 28; Number of Circuits 1; Switch Type SPST; Current Rating 30 Amp at 120/240 Volt AC (Resistive, NO), 20 Amp at 28 Volt DC (Resistive, NO), 30 Amp at 120/240 Volt AC (Inductive, NO), 5 Amp at 120/240 Volt AC (Tungsten, NO), 20 Amp at 120 to 277 Volt AC (Ballast, NO); Voltage Rating 120/208/240/277 Volt AC at 50/60 Hertz; Power Rating 1 HP at 120 Volt AC (NO), 2 HP at 240 Volt AC (NO); Reserve Power AAA Alkaline Battery; Operating Temperature -40 to 155 Deg F; Enclosure NEMA 1; Material Steel Enclosure; Finish Gray; Mounting Enclosure; Size 5 Inch Width x 3 Inch Depth x 7-3/4 Inch Height; Application Interior/Exterior Lighting, Electric Pump, Electric Motor Control, School, Office, Airport, Store, Hotel, Restaurant, Park, Apartment; Approval CSA (Canada and US); Maximum On/Off Time 6 Day 23 Hour 59 Minute; Minimum On/Off Time 1 Minute; Wire Size 18 to 10 AWG
