22 to 6 AWG, Ideal Electrical 89-506 Terminal Strip, 6-Circuit
22 to 6 AWG, Ideal Electrical 89-506 Terminal Strip, 6-Circuit
22 to 6 AWG, Ideal Electrical 89-506 Terminal Strip, 6-Circuit
22 to 6 AWG, Ideal Electrical 89-506 Terminal Strip, 6-Circuit
Share Share Print Print
Ideal

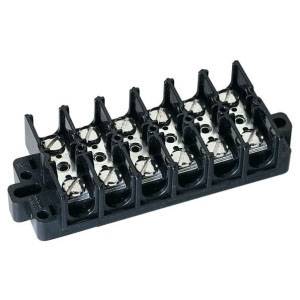

22 to 6 AWG, Ideal Electrical 89-506 Terminal Strip, 6-Circuit

Short Description

600 V, 60 A, 22 to 6 AWG Copper, 6-Circuit, Rugged Polyester Thermoplastic, Surface Mount, Center Spacing, Terminal Strip

Terminal Strip; Type Center Spacing; Number of Circuits 6; Voltage Rating 600 Volt (UL/CSA); Current Rating 60 Amp (UL/CSA); Wire Size 22 to 6 AWG (Copper); Terminal Type #10-32 TPI Philips Slotted Screw; Size 5 Inch Length x 2 Inch Width x 1.25 Inch Height; Temperature Rating -40 to 130 Deg C; Housing Material Rugged Polyester Thermoplastic; Mounting Surface; Approval UL, CSA; Torque Rating 20 Inch-Pound; Center Spacing 0.625 Inch; Screw Material Nickel Plated Brass

MFG #: 89-506

EECO #: ID89506

Brand: Ideal
UPC #: 783250895069
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121407
Approval
UL, CSA
Wire Size
22 to 6 AWG (Copper)
Current Rating
60 Amp (UL/CSA)
Voltage Rating
600 Volt (UL/CSA)
Housing Material
Rugged Polyester Thermoplastic
Mounting
Surface
Size
5 Inch Length x 2 Inch Width x 1.25 Inch Height
Type
Center Spacing
Number of Circuits
6
Features
  • Heavy duty, corrosion-resistant screws, surface plates and optional hardware
  • Accessory hardware provides a variety of termination options
Qty Unit price
Ea
1 $21.81

Slqt
1 $21.81

Stpk
1 $21.81

Unit
1 $21.81
