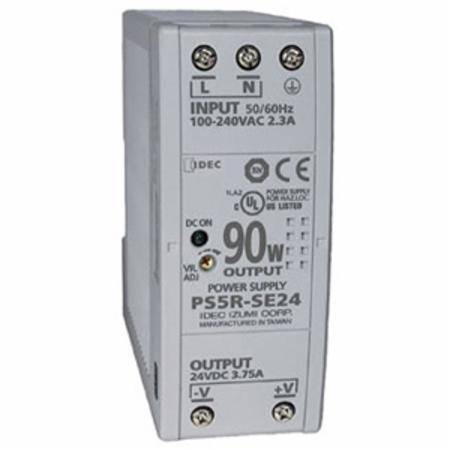

PrintIDEC Corporation PS5R-SE24 Switching Power Supply
85 to 264 VAC/100 to 370 VDC 2.3 A Input, 24 VDC 3.75 A Output, 1-Phase, 90 W, 82 Percent, DIN Rail Mount, Spring-Up M3.5 Screw Terminal, Single DC Output, Switching Power Supply
Switching Power Supply; Type Single DC Output; Input Voltage Range 85 to 264 Volt AC, 100 to 370 Volt DC; Input Current 2.3 Amp at 100 Volt AC, 1.4 Amp at 200 Volt AC; Number of Phases 1; Output Voltage 24 Volt DC; Output Current 3.75 Amp; Output Power 90 Watt; Efficiency 82 Percent; Connection Type Spring-Up M3.5 Screw Terminal; Operating Temperature -10 to 60 Deg C; Enclosure IP20; Mounting DIN Rail; Size 1.81 Inch Width x 4.76 Inch Depth x 4.53 Inch Height; Application Industrial; Weight 440 Gram; Approval UL (Canada and US), CUL, CE, TUV; Applicable Standard ANSI/ISA-12.12.01, EN 50178/61204-3, LVD EN60950, EMC
EECO #: ICPS5RSE24
| Qty | Unit price |
|---|---|
| Ea | |
| 1 | $115.29 |
|
Slqt |
|
| 1 | $115.29 |
|
Stpk |
|
| 1 | $115.29 |
|
Unit |
|
| 1 | $115.29 |
