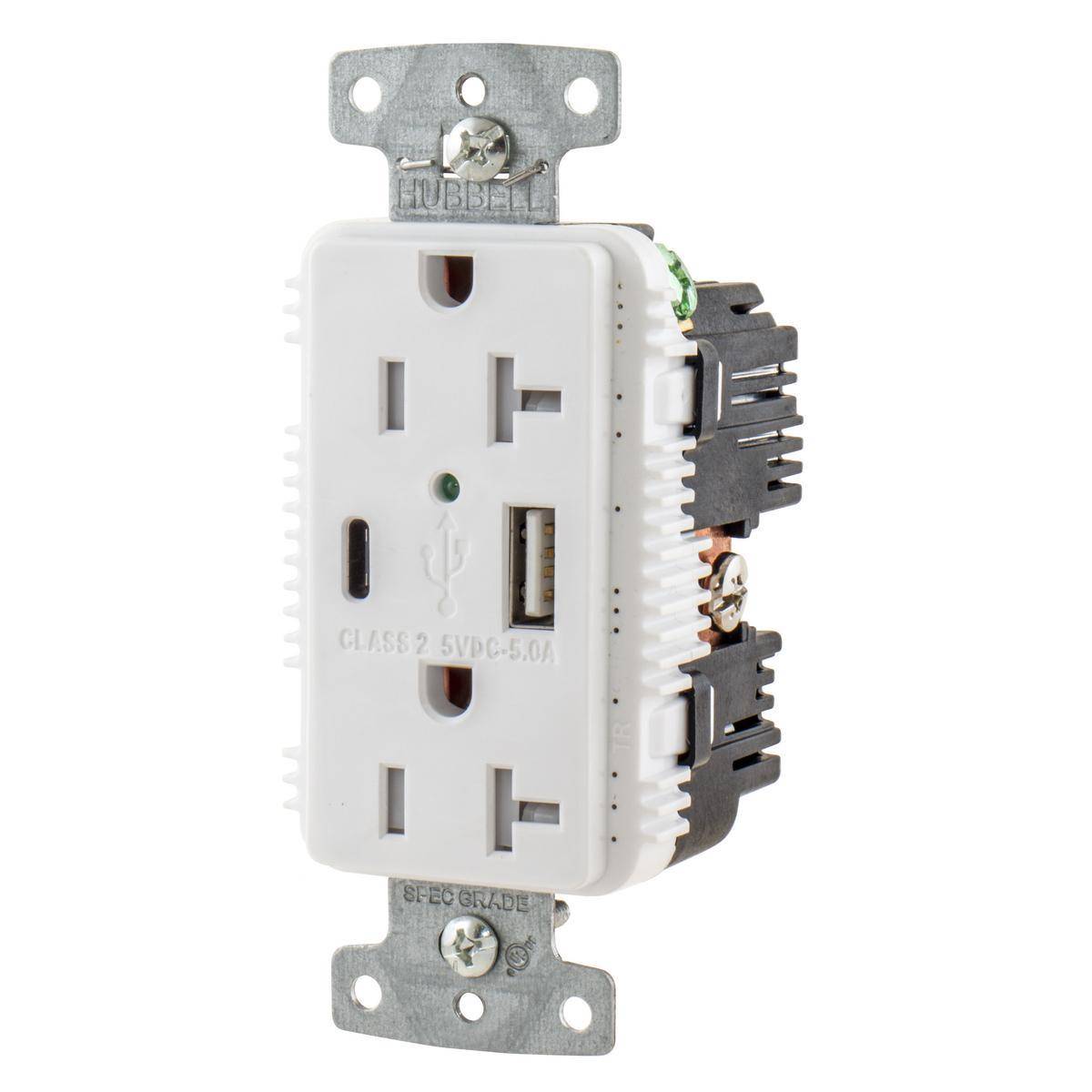

Wiring Device-Kellems tradeSELECT® USB20AC5W Duplex Grounding Standard Tamper-Resistant USB Charger Receptacle With Green LED, 125 VAC, 20 A, 2500 W, 1 Phase, 2 Poles, 3 Wires, White

Short Description

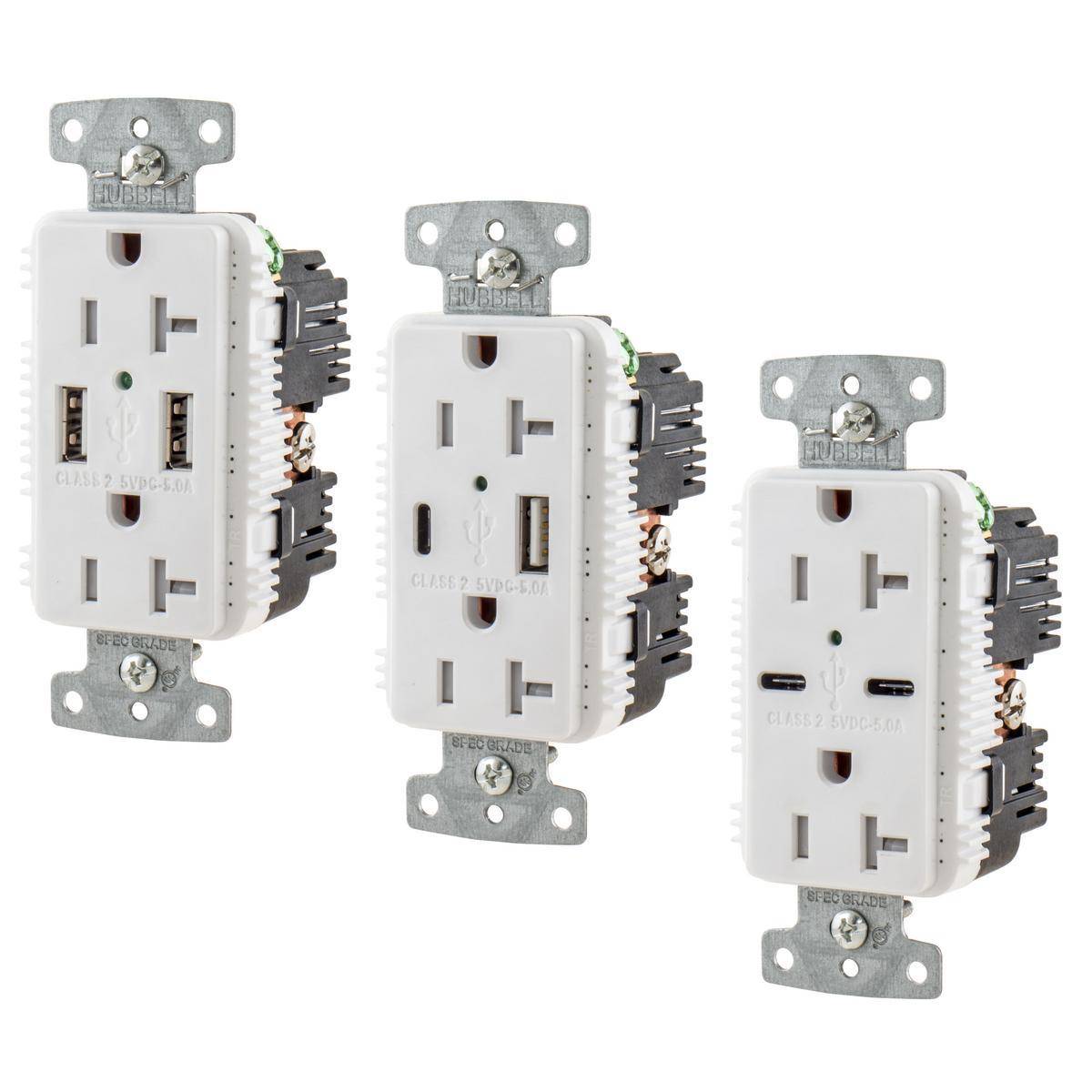

Hubbell® USB chargers are available in the new type C port, a combination unit with type A and C and the legacy type A, all with more power. The increase in power to a 5 A, 5 VAC USB port adds capacity so that there is always ample current to support multiple device charging. Portable mobile manufacturers are using the faster type C ports. More phones, tablets and other electronic devices are expected to use this new standard.

Wiring Device-Kellems tradeSELECT® USB Charger Receptacle, Duplex Grounding Standard Tamper-Resistant, 125 VAC, 20 A, 2500 W Electrical Rating, 1 ph, 2 Pole, 3 Wires, 14 to 12 AWG Wire, Type-A USB 2.0/C USB, 1 USB Quantity, 5 A, 5 VDC USB, 1.75 in W x 1.82 in D x 3.28 in H Size, Screw Terminal Connection, Commercial Grade, Composite, White, Environmental Conditions: -40 to 75 deg C Operating, NEMA 5-20R Enclosure
MFG #: USB20AC5W

EECO #: HUUSB20AC5W

Brand: Wiring Device-Kellems
UPC #: 883778307249
Attributes
Features
Documents
Product Information
Attributes
Color
White
Phase
1
UNSPSC
39121406
Material
Composite
Wire Size
14 to 12
Connection
Screw Terminal
Application
USB Charging, Power, Commercial, Industrial, Home, Phones, Tablets, Indoor Dry Environment and Other Electronic Device Applications
Number of Wires
3
Environmental Conditions
-40 to 75 deg C Operating, NEMA 5-20R Enclosure
Size
1.75 in W x 1.82 in D x 3.28 in H
Type
Duplex Grounding Standard Tamper-Resistant
Grade
Commercial
Features
  • USB type C port is legacy USB type A compatible
  • Heavy duty stainless steel USB ports, rated for minimum 10000 cord insertions and removals
  • Patented Hubbell® tamper-resistant technology uses cam action shutters
IDW_DOCUMENT_970db05f2dc9ca57e744e6131f26ea2c1cd7460222c3eb97600763400fd4f229
IDW_DOCUMENT_ab8e1ab50f4c4f755de3afaee10b9ee097999a17ddbfaf91847c2b903aa8f4c0
IDW_DOCUMENT_d109ab48d01fe7d97693895ba810f8d2b85520a0d13bd056cae4fd1461a06668
Wiring_Device_Kellems_USB4I_Catalog
