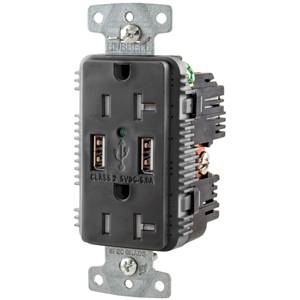

125 VAC 20 A, Hubbell Wiring Device-Kellems USB20A5BK tradeSELECT® Combination USB Charger and Receptacle, Black
125 VAC 20 A, Hubbell Wiring Device-Kellems USB20A5BK tradeSELECT® Combination USB Charger and Receptacle, Black
125 VAC 20 A, Hubbell Wiring Device-Kellems USB20A5BK tradeSELECT® Combination USB Charger and Receptacle, Black
125 VAC 20 A, Hubbell Wiring Device-Kellems USB20A5BK tradeSELECT® Combination USB Charger and Receptacle, Black
Share Share Print Print
Hubbell

125 VAC 20 A, Hubbell Wiring Device-Kellems USB20A5BK tradeSELECT® Combination USB Charger and Receptacle, Black

Short Description

125 V, 20 A, 2-Pole, 3-Wire, NEMA 5-15R, Black, Back/Side Wiring, Decorator Duplex, Combination USB Charger and Receptacle

Combination USB Charger and Receptacle; Type Decorator Duplex; Switch Type 125 Volt AC 20 Amp; Receptacle Type NEMA 5-15R 125 Volt 20 Amp 2-Pole 3-Wire with Grounding Straight Blade; Wiring Back, Side; Wall Plate Included No; Material Reinforced Thermoplastic Polyester (Face/Base); Color Black; Application Commercial; Approval UL 498, UL (Canada and US), CSA; Charger Rating 5 Volt DC 5 Amp; Wire Size 14 to 10 AWG (Copper Stranded/Solid); Contact/Strap Material Steel; Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94V-2

MFG #: USB20A5BK

EECO #: HUUSB20A5BK

Brand: Wiring Device-Kellems
UPC #: 883778306990
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121406
Wiring
Back, Side
Approval
UL 498, UL (Canada and US), CSA
Material
Reinforced Thermoplastic Polyester (Face/Base)
Application
Commercial
Voltage Rating
125 Volt AC
Type
Decorator Duplex, USB Charger
Switch Type
125 Volt AC 20 Amp
Receptacle Type
NEMA 5-15R 125Volt20 Amp 2-Pole 3-Wire with Grounding Straight Blade
Features
  • Flush Fit Design, USB Charger Receptacle Provides Both USB and Electrical Power in a Standard 1-Gang Electrical Opening
  • Designed to Provide More Charging Options for Personal Electronics, the USB Ports are Capable of Charging Two Tablets Simultaneously, the Tamper-Resistant Style Line Decorator Outlets Provide Additional Power for Appliance Use
  • Green LED Indicator to Show USB Power Available
  • Capability to Charge Wide Range of Devices including Tablets, Smartphones, MP3 players, Apple iPad, Apple iPod, Apple iPhone
