Hubbell

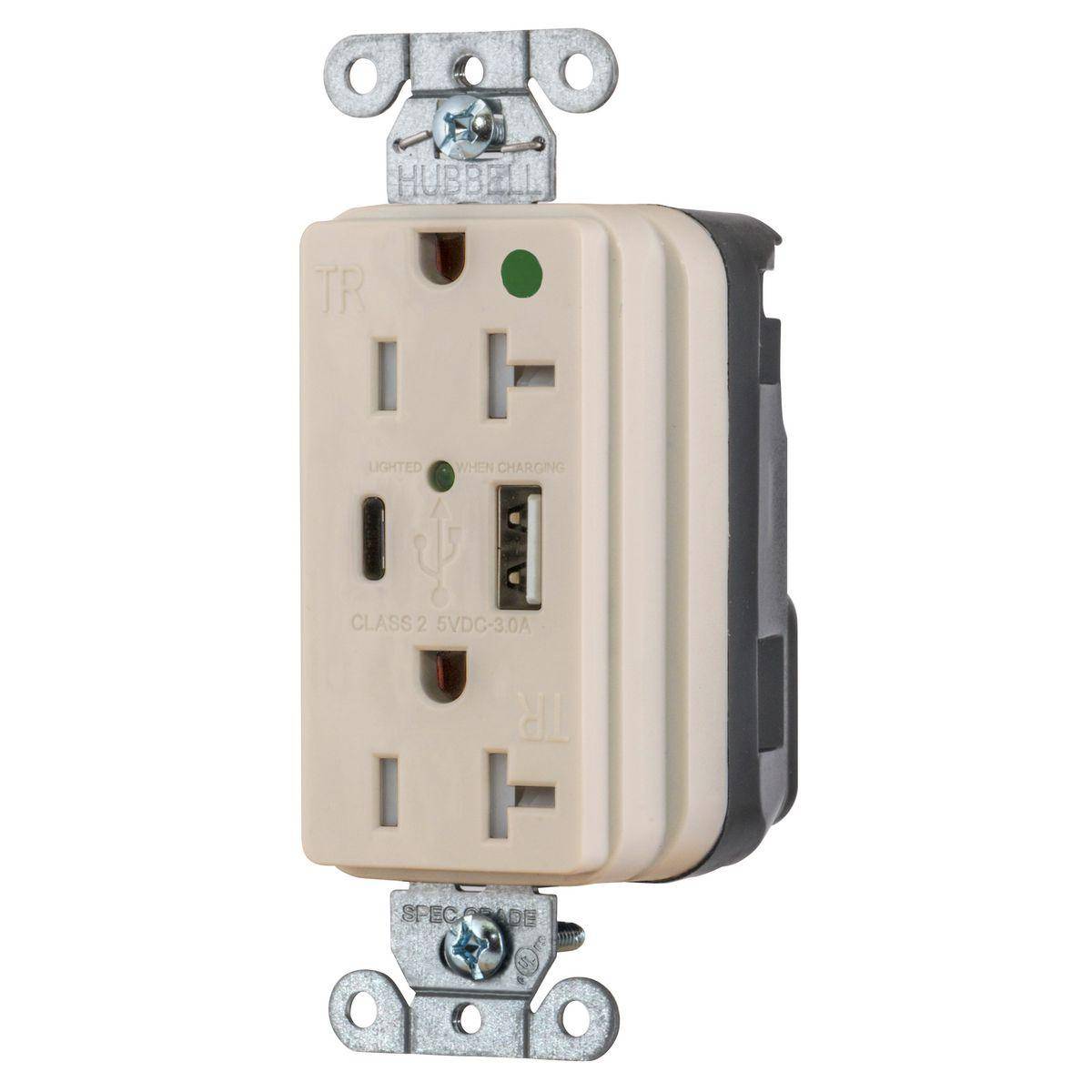

Wiring Device-Kellems SNAPConnect® SNAP8300UACLA Decorator Duplex Straight Blade USB Charger Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red

Short Description

Upgrade your space with the Wiring Device-Kellems SNAPConnect® SNAP8300UACLA! This versatile Decorator Duplex USB Charger Receptacle combines functionality and style, featuring a sleek red design and robust electrical ratings. Perfect for modern homes and commercial settings, it provides convenient charging options while ensuring safety and reliability. Enhanced by AI

Wiring Device-Kellems SNAPConnect® USB Charger Receptacle, Decorator Duplex Straight Blade, 125 VAC, 20 A Electrical Rating, 2 Pole, 3 Wires, 14 to 10 AWG Wire, Type-A USB 2.0/C USB, 3 A at 9 VDC USB, 4.13 in H x 1.84 in D Size, Snap/Screw Connection, Threaded Mounting, Hospital Grade, Wiring Method: Grounding, Thermoplastic, Red, Environmental Conditions: -40 to 75 deg C Operating, UL 94V-2 Flammability Rating

MFG #: SNAP8300UACLA

EECO #: HUSNAP8300UACLA

Brand: Wiring Device-Kellems
UPC #: 883778308642
Attributes
Features
Documents
Product Information
Attributes
Color
Red
UNSPSC
39121406
Material
Thermoplastic
Wire Size
14 to 10
Connection
Snap/Screw
Number of Wires
3
Mounting
Threaded
Environmental Conditions
-40 to 75 deg C Operating, UL 94V-2 Flammability Rating
Size
4.13 in H x 1.84 in D
Type
Decorator Duplex Straight Blade
Grade
Hospital
Features
  • Type: Combination Device - Decorator Duplex Straight Blade USB Charger Receptacle
  • Electrical Rating: 125 VAC, 20 A
  • Configuration: 2 Poles, 3 Wires
  • Wire Compatibility: 14 to 10 AWG Wire
  • USB Ports: Type-A USB 2.0/C USB, 3 A at 9 VDC
  • Dimensions: 4.13 in H x 1.84 in D
  • Connection Type: Snap/Screw Connection with Threaded Mounting
  • Grade: Hospital Grade
  • Wiring Method: Grounding
  • Material: Thermoplastic
  • Color: Red
  • Operating Temperature: -40 to 75 deg C
  • Flammability Rating: UL 94V-2

Enhanced by AI
