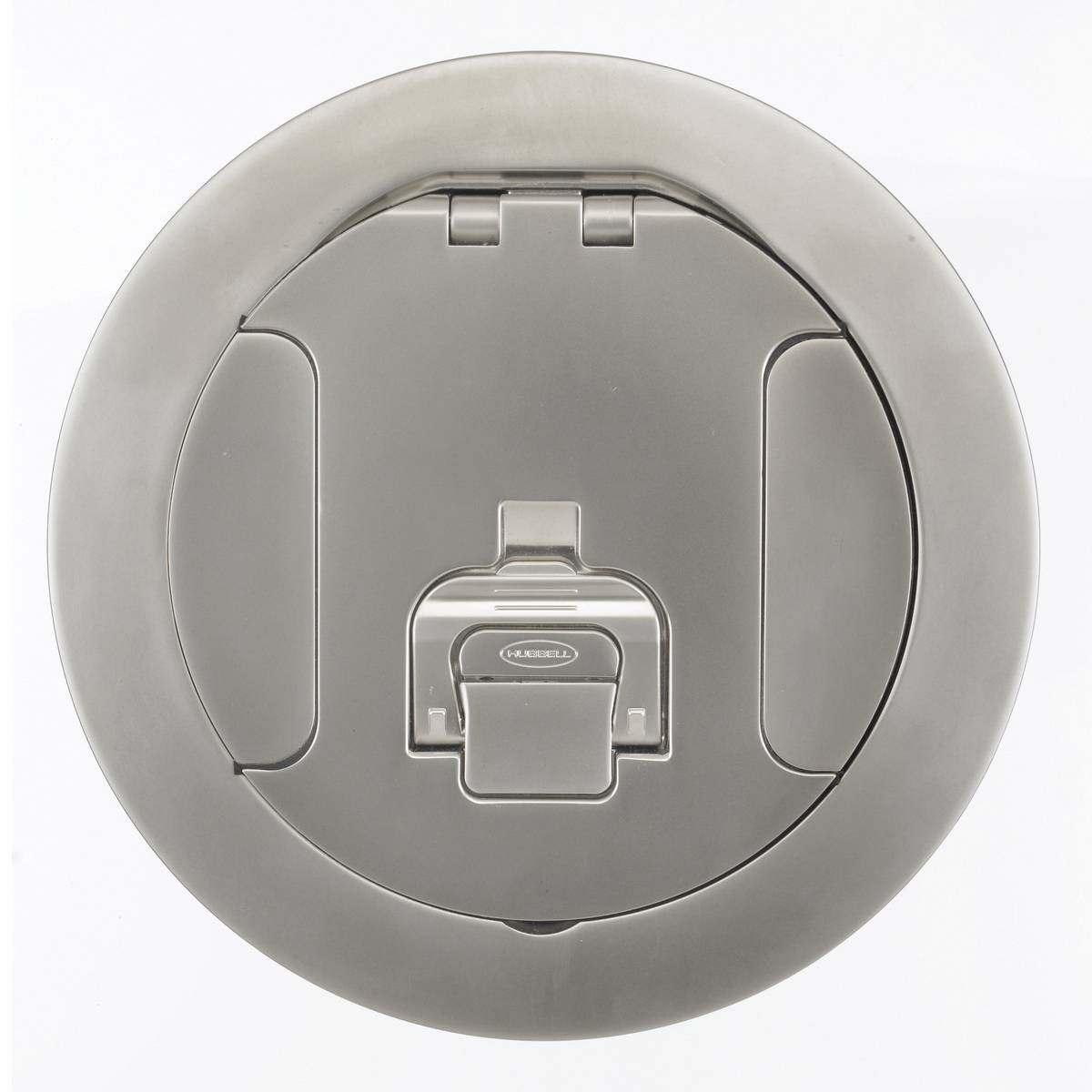

Wiring Device-Kellems S1R6CVRNKL Fire-Rated Standard Poke-Through Cover, 7-1/2 in Dia, Cast Aluminum
Share Share Print Print
Hubbell

Wiring Device-Kellems S1R6CVRNKL Fire-Rated Standard Poke-Through Cover, 7-1/2 in Dia, Cast Aluminum

Short Description

Enhance your space with the Wiring Device-Kellems S1R6CVRNKL Fire-Rated Poke-Through Cover. Designed for durability and safety, this 7-1/2 inch diameter cast aluminum cover features a sleek satin nickel finish and can withstand up to 1000 lbs, making it perfect for high-traffic areas.Enhanced by AI

Wiring Device-Kellems, S1R6CVRNKL, Poke-Through Cover, Fire-Rated Standard, 7-1/2 in Diameter, 1.3 in Thickness, Round Shape, Floor Mounting, 1000 lb Capacity, Cast Aluminum, Satin Nickel Plated

MFG #: S1R6CVRNKL

EECO #: HUS1R6CVRNKL

Brand: Wiring Device-Kellems
UPC #: 783585443461
Attributes
Features
Documents
Product Information
Attributes
Shape
Round
Finish
Satin Nickel Plated
UNSPSC
39121328
Material
Cast Aluminum
Application
For 6 in fire-rated poke-through fittings
Mounting Type
Floor
Type
Fire-Rated Standard
Capacity
1000
Diameter
7-1/2
Includes
Carpet Gasket and Mounting Hardware
Thickness
1.3
Features
  • 180 deg cover opening to lay flat and reduce tripping hazards
  • Two large cable egress doors
  • Die-cast aluminum cover construction for enhanced durability
  • 1000 lb load rating, static load through 3 in Dia mandrel
  • 0.13 in H flange
