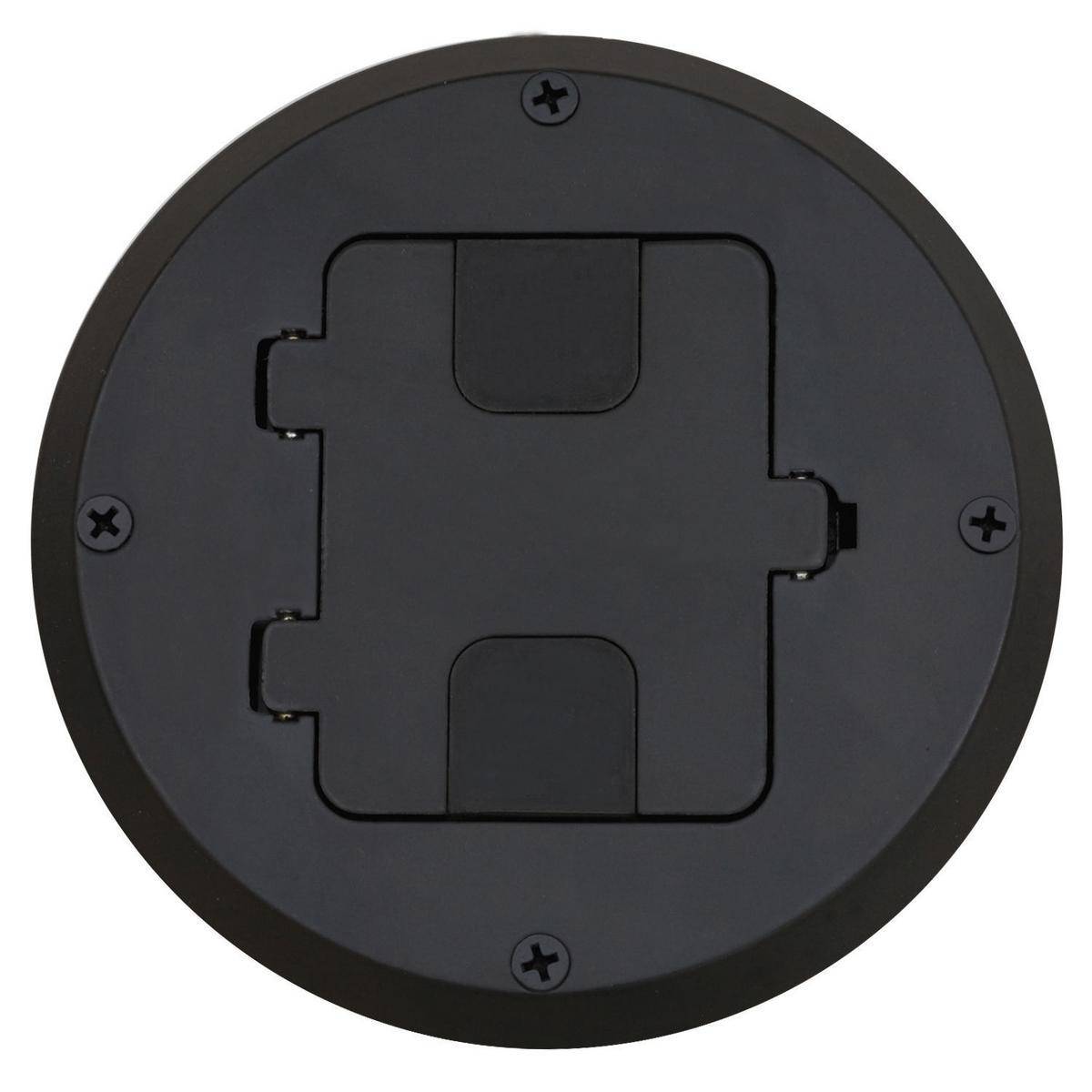

PREMISE WIRING tradeSELECT® RF515BK Decorator Duplex Semi-Adjustable Standard Wood Floor Box Kit, Stamped Steel, 28 cu-in Capacity, 1 Gangs, 6 Knockouts
Share Share Print Print
Hubbell

PREMISE WIRING tradeSELECT® RF515BK Decorator Duplex Semi-Adjustable Standard Wood Floor Box Kit, Stamped Steel, 28 cu-in Capacity, 1 Gangs, 6 Knockouts

Short Description

Hubbell® wood floor boxes allow for the placement of electrical power or a combination of power and voice/data devices. Boxes easily mount into the floor and are height adjustable for optimal alignment and fit.

PREMISE WIRING tradeSELECT® Floor Box Kit, Decorator Duplex Semi-Adjustable Standard Wood, Series: RF515, 1 Gangs, 6 Knockouts, 1/2 in, 3/4 in Knockout, 5.6 in Diameter, Round Shape, NEMA 5-15R Enclosure, Flush/Surface Mounting, 28 cu-in Capacity, Stamped Steel, Black
MFG #: RF515BK

EECO #: HURF515BK

Brand: Premise Wiring
UPC #: 883778300196
Attributes
Features
Documents
Product Information
Attributes
Color
Black
Shape
Round
UNSPSC
39121307
Material
Stamped Steel
Application
Multi Service In-Floor Delivery Systems
Knockout Size
1/2 in, 3/4 in
Mounting Type
Flush/Surface
Enclosure Type
NEMA 5-15R
Number of Gangs
1
Number of Knockouts
6.0000
Type
Decorator Duplex Semi-Adjustable Standard Wood
Series
RF515
Capacity
28
Diameter
5.6
Includes
Steel Box, Flange, Hinged Door Cover Assembly with Tamper Resistant Duplex Receptacle
Dimensions
5.2 in H x 3.9 in W x 4.9 in D
Features
  • Pre-assembled flange and cover for fast installation
  • Top screw fastening and side joist mounting provided
  • Height accessible adjustments after the box is mounted
  • Residential flush floor boxes for wood floors
  • Complete assembly
  • Removable neoprene gaskets allow for independent use of either side of the receptacle with the cover closed
  • Low voltage divider optional provides for power and voice/data in a compact space
  • Back and side knockouts for proper wiring access
  • Recessed receptacle minimizes plug protrusion, allowing furniture to be located over the plug
Bryant_Electric_RF500_Catalog
Bryant_Electric_RF500_Full_Engineering_Drawing
Bryant_Electric_RF500_Manual
IDW_DOCUMENT_962dff21a0b06faf2d5b1b76cebfd0267d41fc4df57fec23b60d1ea5bf275154
IDW_DOCUMENT_e724449aaf83ff3fa79c11e4b04c7159dd93f60437579c9cb85a72efab168e16
IDW_DOCUMENT_f160adca9dda4be95a54c6bb5e4baa07f73df02418fe512ad44e6e15a7831df6
Wiring_Device_Kellems_RF500_Catalog
Wiring_Device_Kellems_RF500_Full_Engineering_Drawing
Wiring_Device_Kellems_RF500_Technical_Drawing
