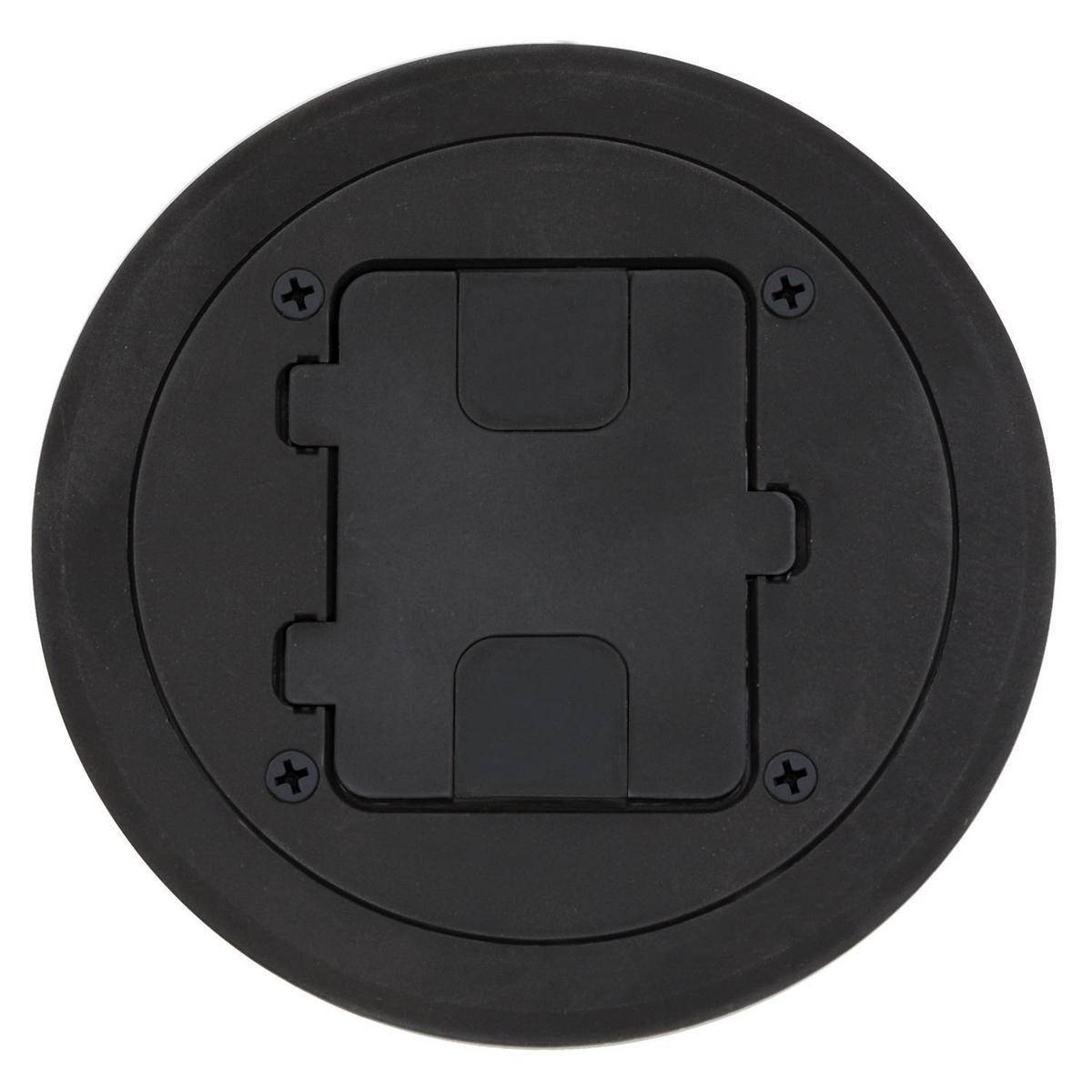

Bryant Electric Wiring Device-Kellems RF406BK Interior Flange/Hinged Door Cover Non-Metallic Molded Standard Floor Box
Bryant Electric Wiring Device-Kellems RF406BK Interior Flange/Hinged Door Cover Non-Metallic Molded Standard Floor Box
Bryant Electric Wiring Device-Kellems RF406BK Interior Flange/Hinged Door Cover Non-Metallic Molded Standard Floor Box
Bryant Electric Wiring Device-Kellems RF406BK Interior Flange/Hinged Door Cover Non-Metallic Molded Standard Floor Box
Share Share Print Print
Hubbell

Bryant Electric Wiring Device-Kellems RF406BK Interior Flange/Hinged Door Cover Non-Metallic Molded Standard Floor Box

Short Description

Round non-metallic floor box offers an economical solution for electrical power or a combination of power and voice/data applications. Designed for slab on grade installation. Quick and easy installation is assured using a push-in place leveling system.

Bryant Electric Wiring Device-Kellems Floor Box, Interior Flange/Hinged Door Cover Non-Metallic Molded Standard, Series: RF406, 2 Outlets, 2 Knockouts, 3/4 in, 1 in Knockout, 4.7 in Dia, Round, NEMA 5-15R, Flush/Surface Mount, Thermoplastic, Black, 6 in H x 6.8 in W
MFG #: RF406BK

EECO #: HURF406BK

Brand: Bryant Electric
UPC #: 883778112911
Attributes
Features
Documents
Product Information
Attributes
Color
Black
Shape
Round
UNSPSC
39121307
Material
Thermoplastic
Application
For RF400 concrete floors
Knockout Size
3/4 in, 1 in
Mounting Type
Flush/Surface
Enclosure Type
NEMA 5-15R
Number of Outlets
2.0000
Number of Knockouts
2.0000
Type
Interior Flange/Hinged Door Cover Non-Metallic Molded Standard
Series
RF406
Diameter
4.7
Includes
Tamper Resistant Duplex Receptacle, Gasket, Floor Leveling, PVC Ring, High Impact/Chemically Resistant Nylon
Dimensions
6 in H x 6.8 in W
Features
  • Cut box after pour for height adjustment

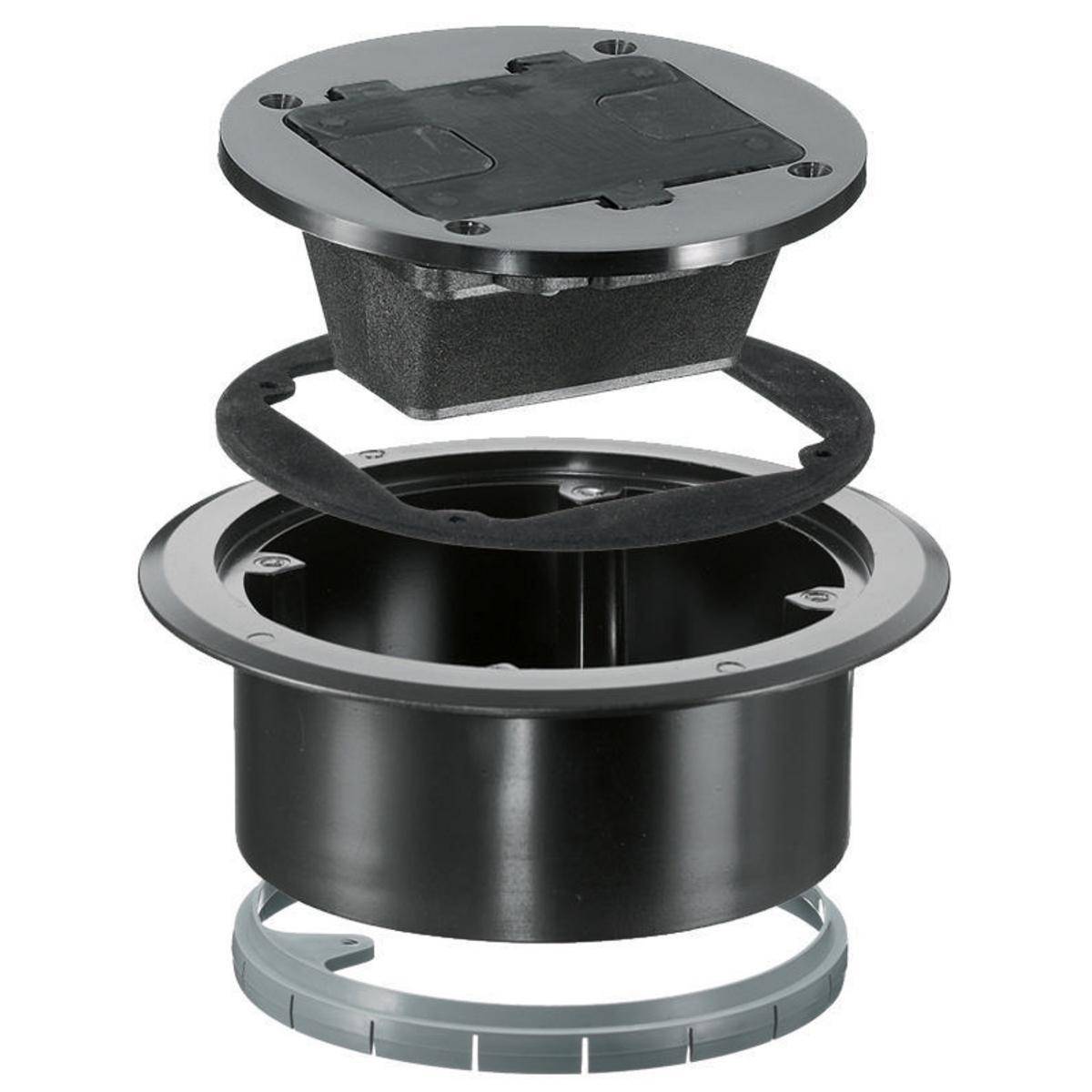

  • Pre-assembled flange, cover and leveling ring
  • Recessed receptacle minimizes plug protrusion
  • Round non-metallic floor box offers an economical solution for electrical power or a combination of power and voice/data applications
  • Designed for slab on grade installation
  • Quick and easy installation is assured using a push-in place leveling system
  • Recessed receptacle minimizes plug protrusion, allowing furniture to be located over the plug
  • Pre-assembled flange, cover and leveling ring for quick installation
  • Removable neoprene gaskets allow for independent use of either side of the receptacle with the cover closed
  • Parallel PVC hubs for 1 in and 3/4 in conduit
