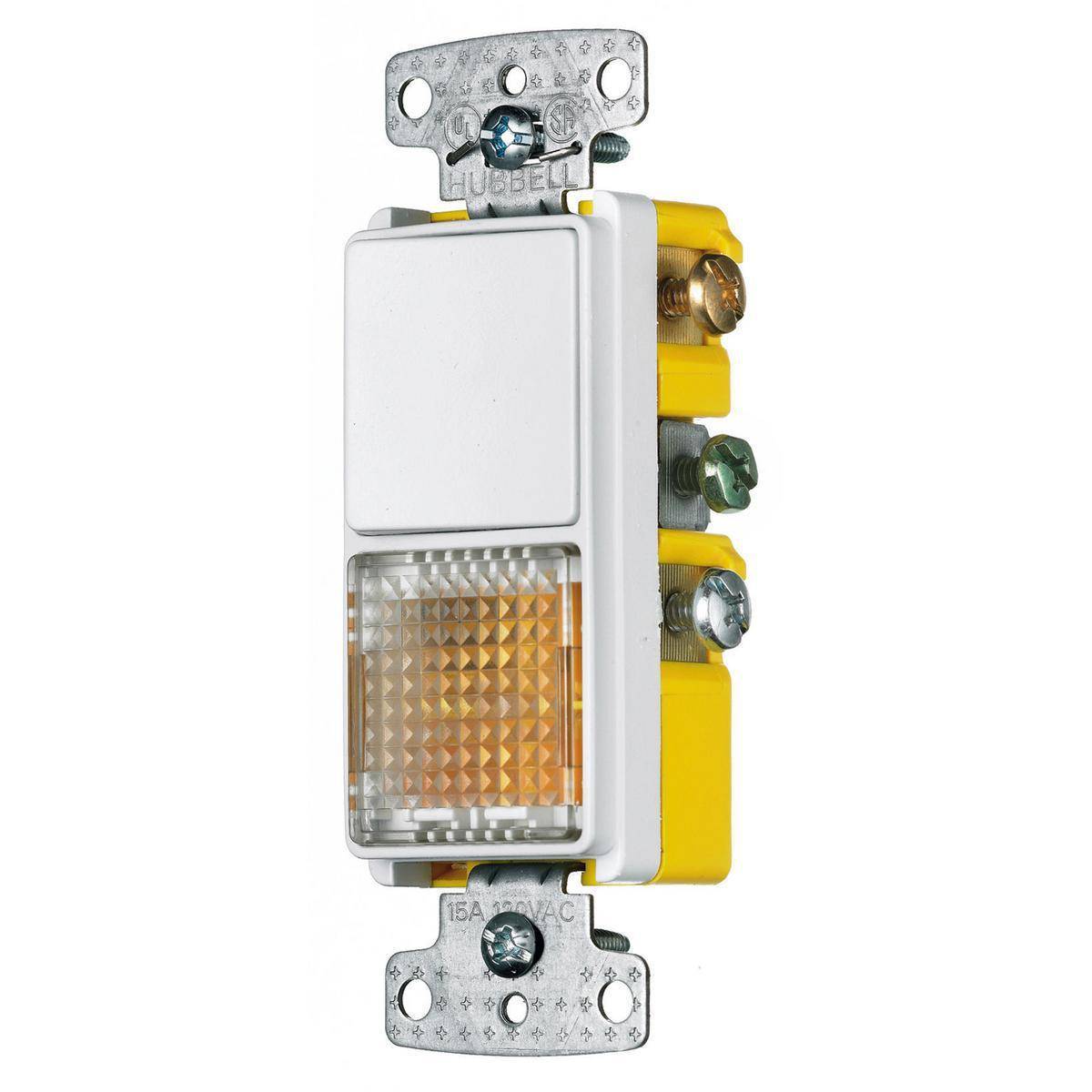

Wiring Device-Kellems RCD309W Decorator Standard Combination Rocker Switch and Pilot, 125 VAC, 15 A, 1875 W
Share Share Print Print
Hubbell

Wiring Device-Kellems RCD309W Decorator Standard Combination Rocker Switch and Pilot, 125 VAC, 15 A, 1875 W

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Elevate your control with the Wiring Device-Kellems RCD309W Decorator Standard Combination Rocker Switch and Pilot. Designed for efficiency and style, this versatile switch features a sleek design, an amber neon pilot lamp, and robust performance at 125 VAC and 15 A. Perfect for any project!Enhanced by AI

Wiring Device-Kellems, RCD309W, Combination Rocker Switch and Pilot, Standard, Series: Decorator, 125 VAC, 15 A, 1875 W Wattage, 1 Pole, Amber Neon Pilot Lamp, 2-Position Contact Configuration, 15 A at 120 VAC Contact, Snap Action, Threaded Mounting, Side Wire/Screw Terminal, -20 to 60 deg C, Composite, White, 4.2 in H x 1.32 in W x 1 in D Dimensions

MFG #: RCD309W

EECO #: HURCD309W

Brand: Wiring Device-Kellems
UPC #: 883778110504
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Color
White
UNSPSC
39122231
Material
Composite
Lamp Type
Amber Neon Pilot
Application
Circuit Control, Indication Residential and Indoor Dry Environment
Terminal Type
Side Wire/Screw
Contact Rating
15 A at 120 VAC
Voltage Rating
125
Mounting
Threaded
Temperature Rating
-20 to 60
Contact Configuration
2-Position
Type
Standard
Series
Decorator
Wattage
1875
Dimensions
4.2 in H x 1.32 in W x 1 in D
Amperage Rating
15
Features
  • Smooth, quiet rocker
  • Low profile, <1 in D
  • Self-grounding feature is standard
  • Low profile, less than 1 in depth
  • Rocker actuator
  • 30000 minimum operating cycles
  • Side wired connectivity
  • Requires neutral wire
  • Zinc plated steel bridge, drive screw and mounting screws
  • Brass rocker contacts and terminal
  • Plastic base, cover, rocker button, spring housing and washers, steel spring
  • Decorator switch and amber pilot light
  • Indoor dry unless protected by additional means
  • Clear lens
  • Combination of (1) 3-way switch, (1) pilot light
