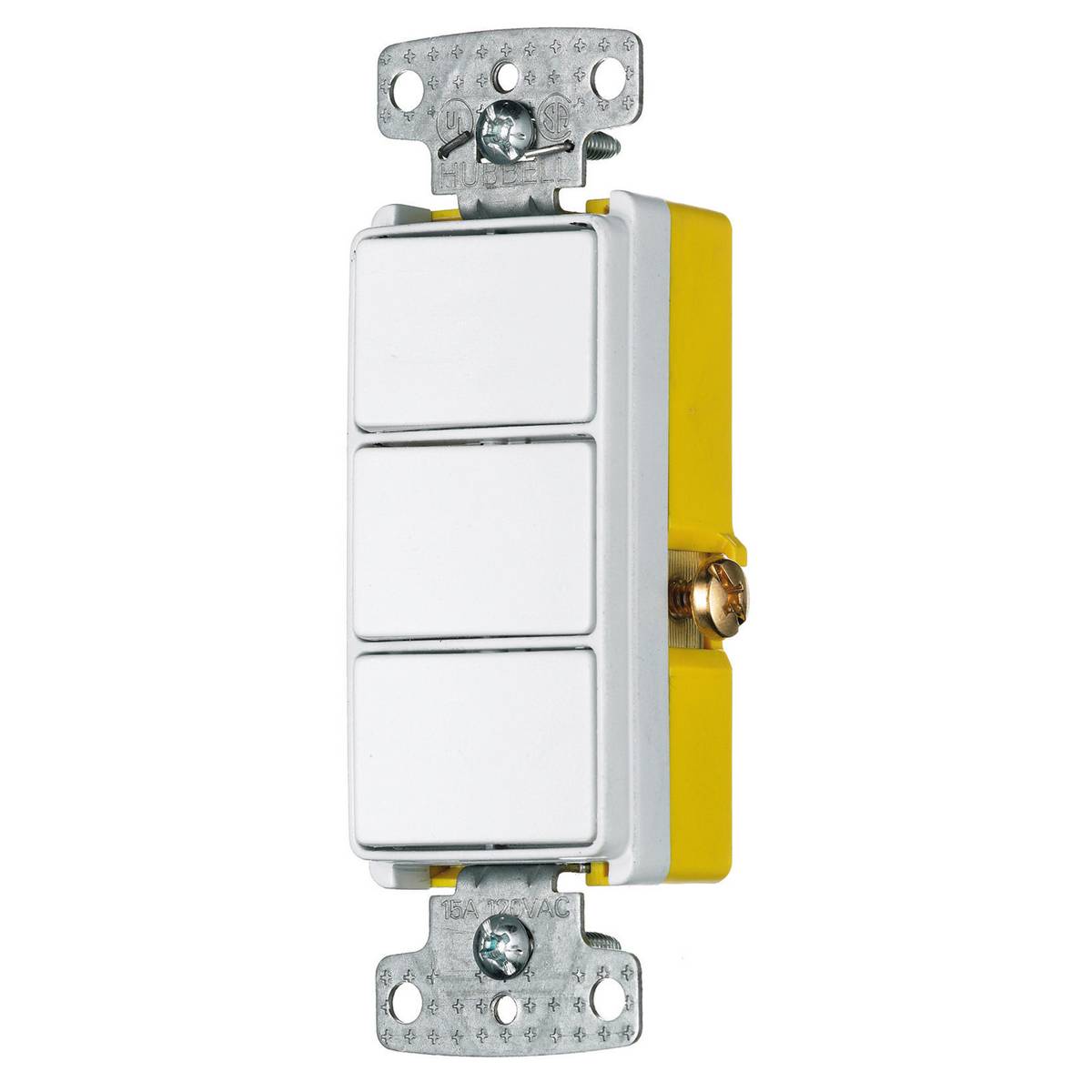

Wiring Device-Kellems RCD111W Decorator 2-Position Standard Combination Switch, 120/277 VAC, 15 A, 4155 W Power Rating, 2-Position Contact

Short Description

120 to 277 VAC, 15 A, White, Side Wiring, Self-Grounding, Standard Rocker, Decorator Combination Switch

Wiring Device-Kellems, RCD111W, 2-Position Standard Combination Switch, Series: Decorator, 120/277 VAC, 15 A, 4155 W Power, 2-Position Contact Configuration, 1 Pole, Snap Switch Action, Rocker Actuator, Threaded Mounting, Side Wire Terminal, 30000 Cycles Operating Cycles, White, Environmental Conditions: -20 to 60 deg C Operating Temperature, 1.32 in W x 1 in D x 4.2 in H Dimensions
MFG #: RCD111W

EECO #: HURCD111W

Brand: Wiring Device-Kellems
UPC #: 883778110443
Attributes
Features
Documents
Product Information
Attributes
Color
White
UNSPSC
39122231
Approval
UL, CSA
Application
Indoor Dry Environment and Residential Applications
Power Rating
4155
Terminal Type
Side Wire
Current Rating
15 amp
Voltage Rating
120/277
Actuator
Rocker
Mounting
Threaded
Contact Configuration
2-Position
Environmental Conditions
-20 to 60 deg C Operating Temperature
Size
1.32 Inch Width x 1 Inch Depth x 4.2 Inch Height
Type
3-Way 2-Position Standard
Series
Decorator
Dimensions
1.32 in W x 1 in D x 4.2 in H
Operation Type
(3) 1-Pole
Amperage Rating
15
Features
  • Low profile, <1 in D
  • Self-grounding feature is standard
  • Combination of (3) 1-pole, 3-way rocker switches
  • Mini-rockers provide multiple switches in a compact single gang
  • Maximize control while maintaining function and appearance
  • Low profile, less than 1 in depth
  • Elegant appearance, smooth quiet rocker action
  • Three 1-pole switches
  • Side wired connectivity
  • Snap switch action
  • Rocker actuator
  • Standard display size
  • Brass rocker contacts and terminal, zinc plated steel bridge, drive screw and mounting screw, plastic base, cover, rocker button, spring housing and washers
  • Stainless steel grounding spring, silver switch contact, steel spring
  • 4155 W power
  • -20 to 60 deg C operating temperature without impact
  • 1500 VAC minimum for 1 min withstands dielectric voltage
  • 14 to 12 AWG solid and stranded copper wire only back and side wire, 14 AWG solid copper wire only push wire mechanical terminal accommodation
