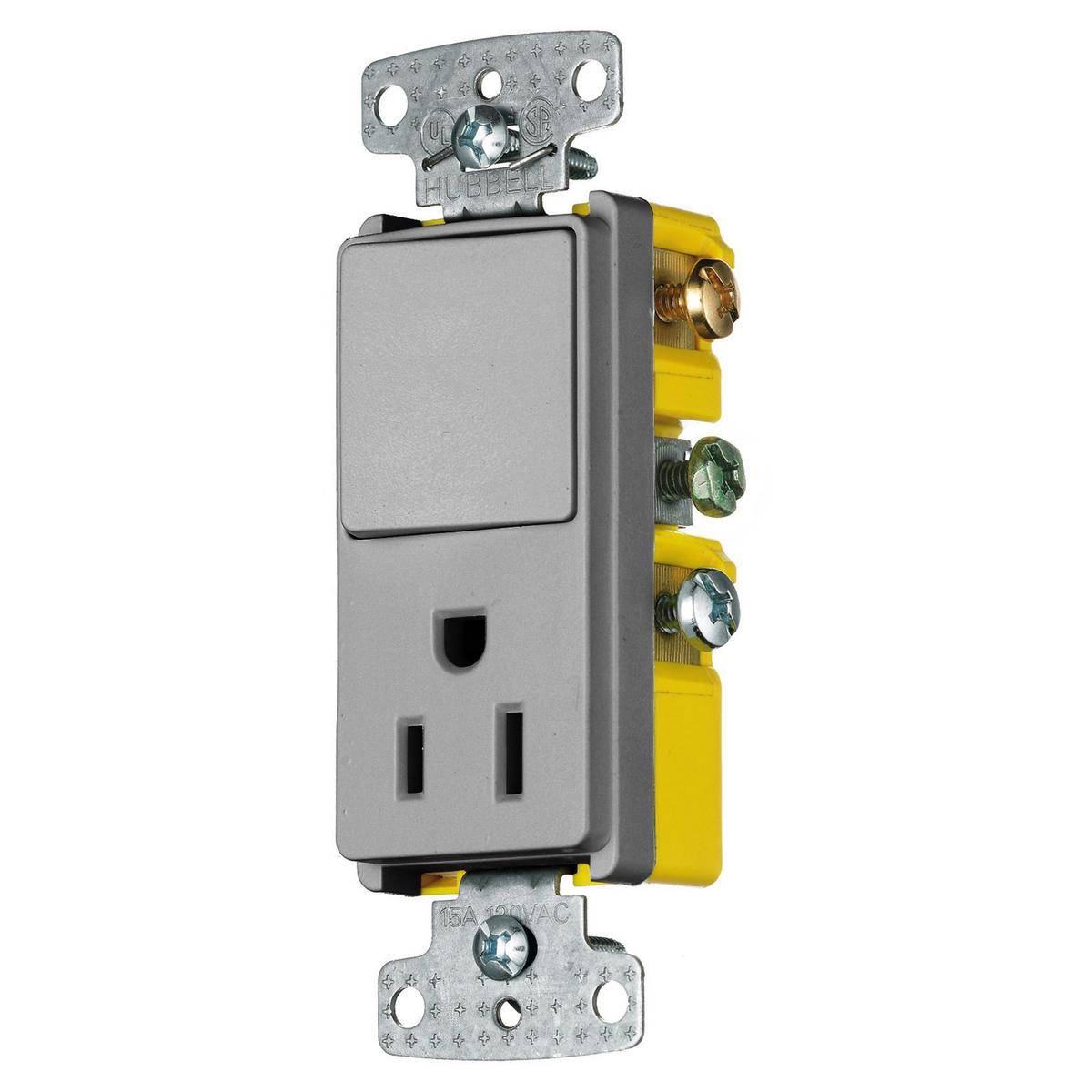

Wiring Device-Kellems RCD108GY Decorator 2-Position Standard Switch and Receptacle Combination Device, Electrical Ratings: 120/125 VAC, 15 A, 1875 W, 1 Poles, 3 Wires, 14 to 12 AWG Wire, Snap Switch Reset
Share Share Print Print
Hubbell

Wiring Device-Kellems RCD108GY Decorator 2-Position Standard Switch and Receptacle Combination Device, Electrical Ratings: 120/125 VAC, 15 A, 1875 W, 1 Poles, 3 Wires, 14 to 12 AWG Wire, Snap Switch Reset

Short Description

Upgrade your electrical setup with the Wiring Device-Kellems RCD108GY Decorator Combination Device. This versatile 2-position standard switch and receptacle offers reliable performance with a 15 A rating and sleek design, perfect for any residential application.Enhanced by AI

Wiring Device-Kellems, RCD108GY, Switch and Receptacle Combination Device, 2-Position Standard, Series: Decorator, 120/125 VAC, 15 A, 1875 W Electrical Rating, 1 Pole, 3 Wires, 14 to 12 AWG Wire, NEMA 5-15R Enclosure, Threaded Mounting, Self-Grounding Grounding Style, Snap Switch Reset, Residential Grade, Side Wire Terminal, 1500 VAC Dielectric Strength, Gray, 4.2 in H x 1.32 in W x 1 in D Dimensions

MFG #: RCD108GY

EECO #: HURCD108GY

Brand: Wiring Device-Kellems
UPC #: 883778110177
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
UNSPSC
39122231
Wire Size
14 to 12
Reset Type
Snap Switch
Application
Indoor Dry Environment
Terminal Type
Side Wire
Number of Wires
3
Mounting
Threaded
Enclosure
NEMA 5-15R
Type
2-Position Standard
Grade
Residential
Series
Decorator
Dimensions
4.2 in H x 1.32 in W x 1 in D
Grounding Style
Self-Grounding
Dielectric Strength
1500
Features
  • Low profile, <1 in D
  • 15 A at 120 VAC switch, 15 A at 125 VAC receptacle
  • 1-pole switch, 2-pole receptacle
  • (1) 1-pole rocker, (1) single receptacle
  • Smooth, quiet rocker
  • Low profile, less than 1 in depth
  • Self-grounding feature is standard
  • -20 to 60 deg C operating temperature without impact
  • Snap switch action
  • Two position contact configuration
  • 30,000 minimum operating cycles
  • 1875 W wattage
  • 14 to 12 AWG solid and stranded copper wire only back and side wire, 14 AWG solid copper wire only push wire mechanical terminal accommodation
  • 2-pole receptacle
  • Brass terminals and rocker contact, zinc plated steel bridge, drive screw and mounting screw, plastic base, cover, rocker button, spring housing and washers
  • Stainless steel grounding spring, silver switch contact, steel spring
