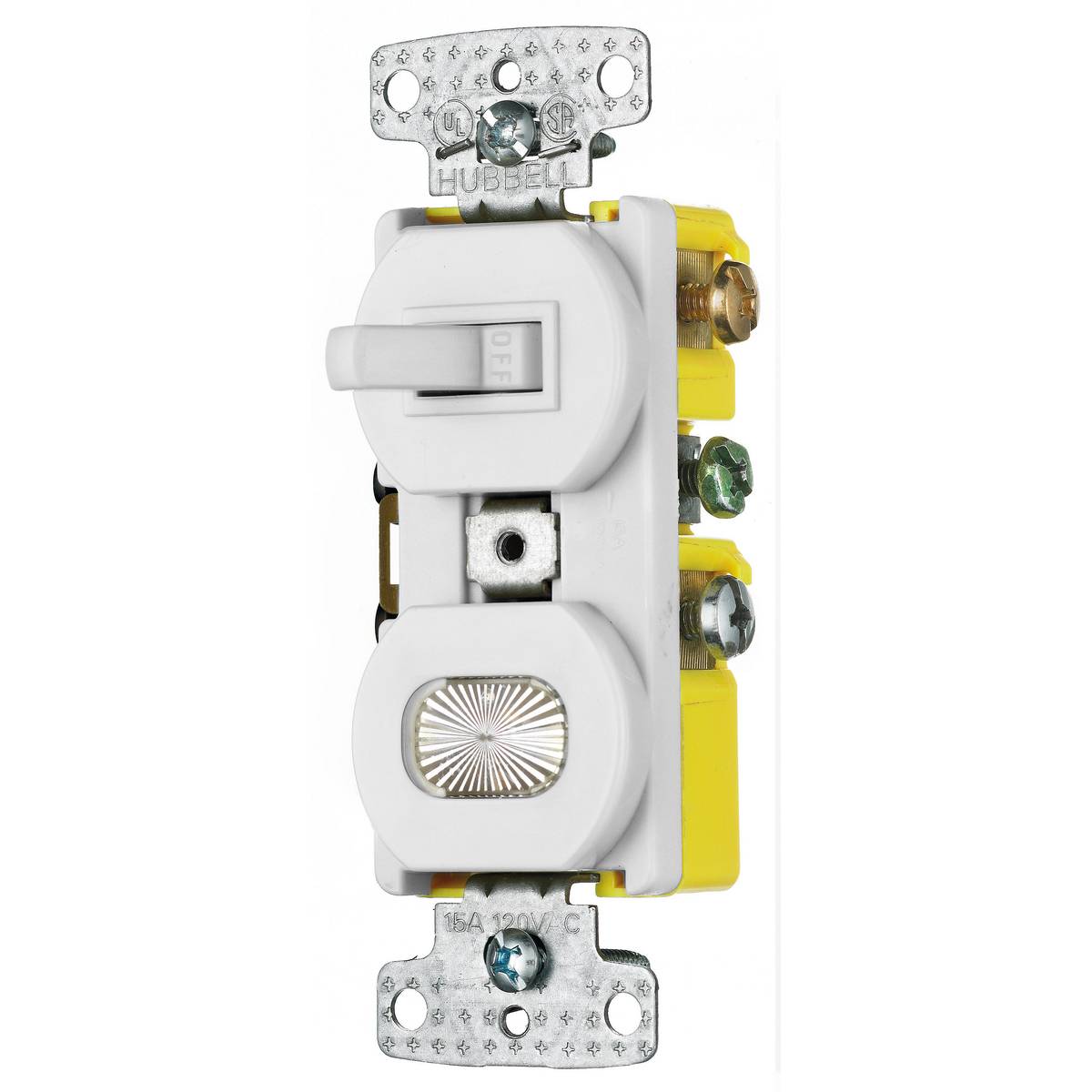

Wiring Device-Kellems RC309W 3-Way Combination Toggle Switch, 120 VAC, 15 A, 1800 W
Wiring Device-Kellems RC309W 3-Way Combination Toggle Switch, 120 VAC, 15 A, 1800 W
Wiring Device-Kellems RC309W 3-Way Combination Toggle Switch, 120 VAC, 15 A, 1800 W
Wiring Device-Kellems RC309W 3-Way Combination Toggle Switch, 120 VAC, 15 A, 1800 W
Wiring Device-Kellems RC309W 3-Way Combination Toggle Switch, 120 VAC, 15 A, 1800 W
Wiring Device-Kellems RC309W 3-Way Combination Toggle Switch, 120 VAC, 15 A, 1800 W
Share Share Print Print
Hubbell

Wiring Device-Kellems RC309W 3-Way Combination Toggle Switch, 120 VAC, 15 A, 1800 W

Short Description

120 VAC, 15 A, 3-Way Toggle, White, Self-Grounding, Duplex, Combination Switch and Pilot Light

Wiring Device-Kellems, RC309W, Combination Toggle Switch, 3-Way, 120 VAC, 15 A, 1800 W Wattage, 3 Pole, Neon Lamp, 2-Position Contact Configuration, 15 A Contact, Snap/Toggle Action, Threaded Mounting, Side Wire Terminal, -20 to 60 deg C, Composite, White, 4.2 in H x 1.32 in W x 0.97 in D Dimensions
MFG #: RC309W

EECO #: HURC309W

Brand: Wiring Device-Kellems
UPC #: 883778110092
Attributes
Features
Documents
Product Information
Attributes
Color
White
UNSPSC
39122231
Wiring
Side
Approval
UL, CSA
Material
Composite
Lamp Type
Neon
Application
Circuit Control and Indication Residential Applications
Terminal Type
Side Wire
Contact Rating
15
Voltage Rating
120
Mounting
Threaded
Temperature Rating
-20 to 60
Contact Configuration
2-Position
Type
3-Way
Wattage
1800
Dimensions
4.2 in H x 1.32 in W x 0.97 in D
Switch Type
120 Volt AC 15 Amp 3-Way Toggle with Self-Grounding
Amperage Rating
15
Pilot Light Type
120 Volt AC 15 Amp with Clear Lens Amber Neon Bulb Self Grounding
Features
  • Quiet snap action mechanism
  • Self-grounding staple is standard
  • Elongated strap with continuous plaster ears
  • Low profile, <1 in D
  • Self-grounding feature is standard
  • Mini-toggles provide for multiple switches in a compact single gang
  • Maximize control while maintaining function and appearance
  • Combination devices provide compact switches in a 1-gang opening
  • Multiple drive slot/Phillips/Robertson head screw
  • Hi-visibility yellow base for easy installation
  • Combination of (1) 3-way toggle, (1) pilot light
  • Clear lens
Hubbell_WiringDeviceKellems_00159_INST
Hubbell_WiringDeviceKellems_00442_Z19_CAT
Hubbell_WiringDeviceKellems_01050_1_CAD
IDW_DOCUMENT_88ec3f702b79a847614095b35ad371a677fc52a58f8d168b32c079cea59cc4a5
Wiring_Device_Kellems_RC109_Catalog
IDW_DOCUMENT_ac68e321049a30226614159e972d1aa19c11f7f92d7d461ba5863709697956b5
Qty Unit price
Ea
1 $24.75

Slqt
1 $24.75

Stpk
1 $24.75

Unit
1 $24.75
