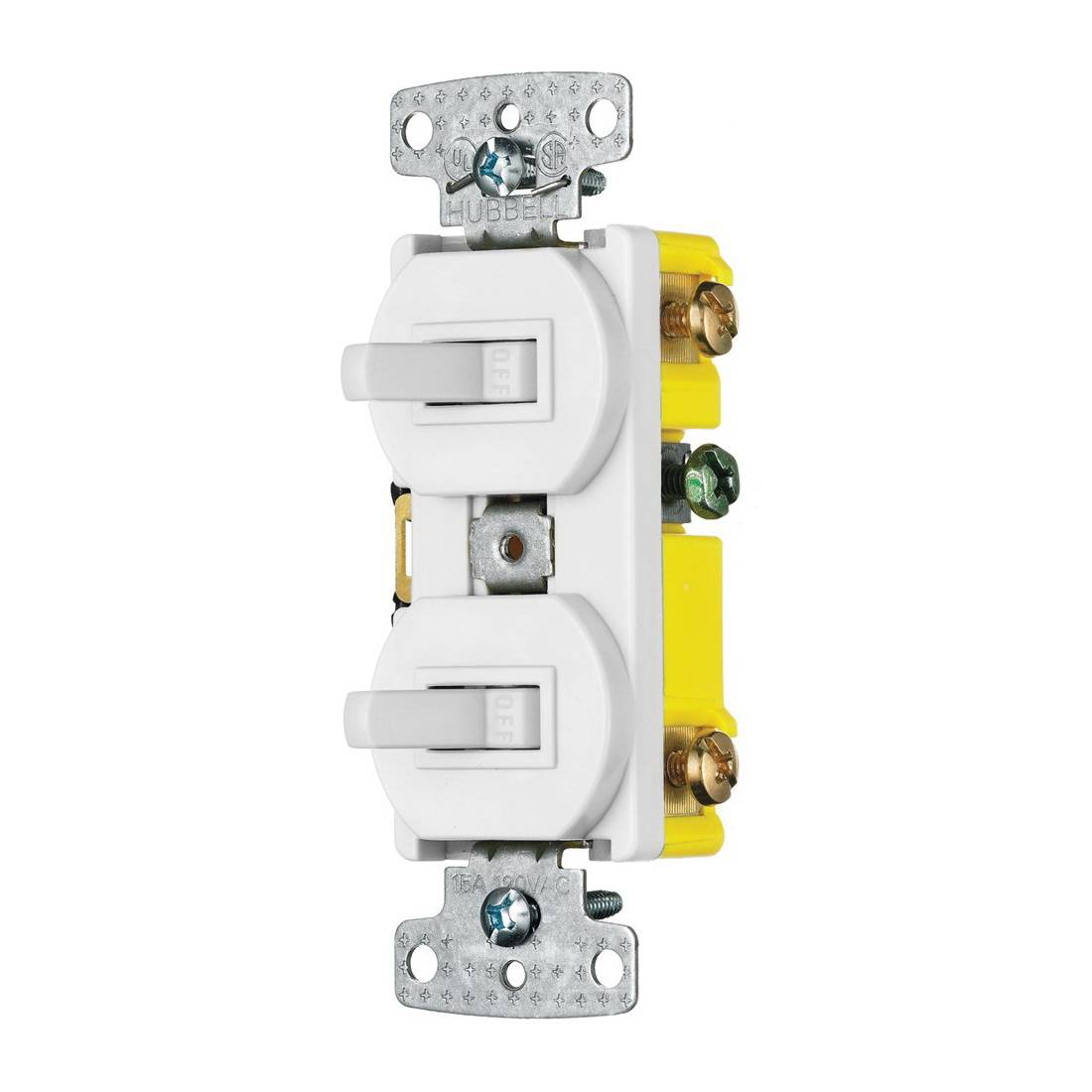

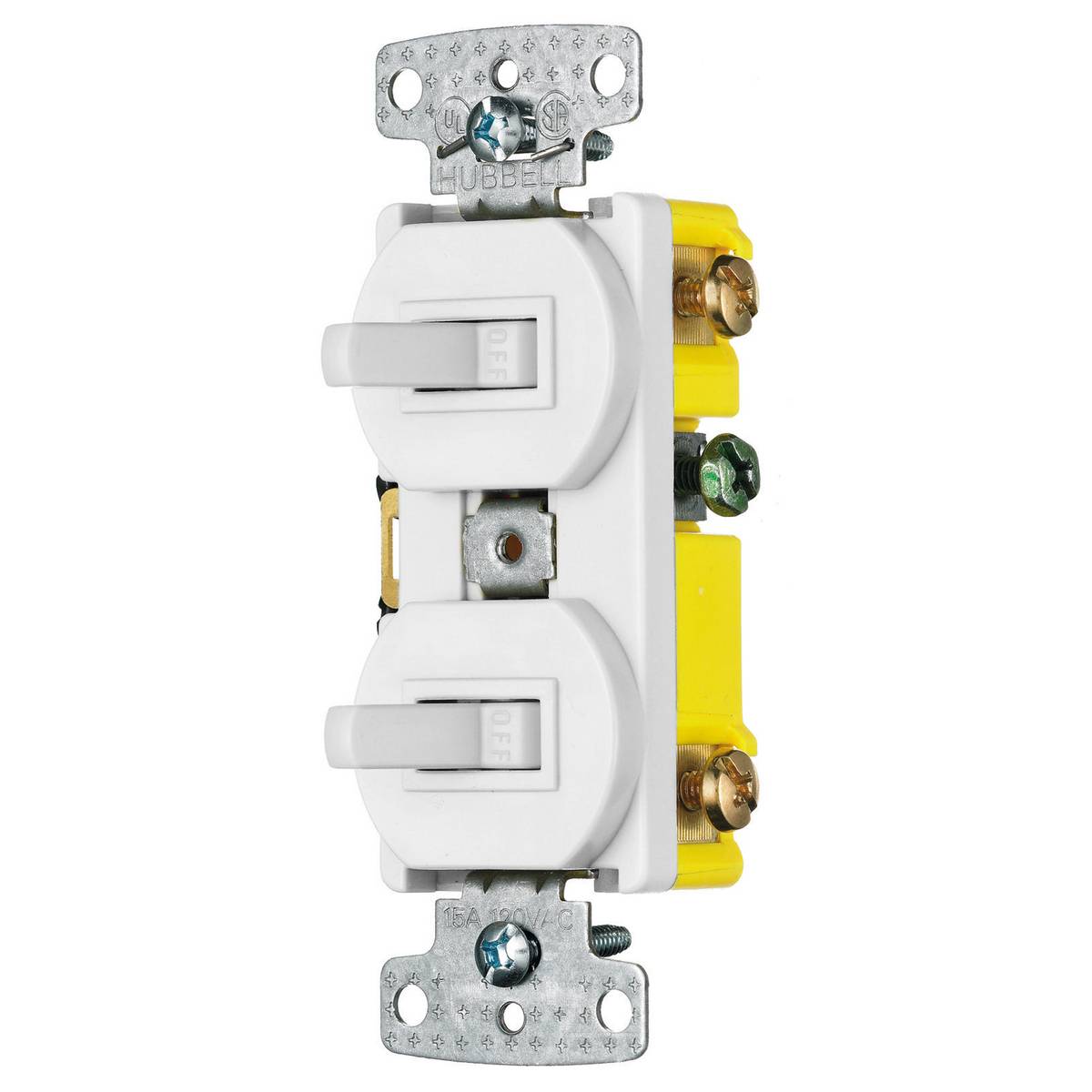

Wiring Device-Kellems RC303W Self-Grounding Standard Traditional Toggle Switch Combination Device, 120 VAC, 15 A, 1800 W Power Rating, 2-Position Contact

Short Description

Mini-toggles provide for multiple switches in a compact single gang. Maximize control while maintaining function and appearance.

Wiring Device-Kellems, RC303W, Self-Grounding Standard Traditional Toggle Switch Combination Device, 120 VAC, 15 A, 1800 W Power, 2-Position Contact Configuration, 15 A Contact, 6 Pole, Toggle Actuator, Threaded Mounting, Screw Terminal, 30000 cycles Operating Cycles, Composite, White, Environmental Conditions: -20 to 60 deg C, 1.32 in W x 1.53 in D x 4.2 in H Dimensions
MFG #: RC303W

EECO #: HURC303W

Brand: Wiring Device-Kellems
UPC #: 883778109973
Attributes
Features
Documents
Product Information
Attributes
Color
White
UNSPSC
39122231
Wiring
Side
Approval
UL, CSA
Material
Composite
Application
Residential, Circuit Control Applications and Indoor Dry Environment
Power Rating
1800
Terminal Type
Screw
Contact Rating
15
Voltage Rating
120
Actuator
Toggle
Mounting
Threaded
Contact Configuration
2-Position
Environmental Conditions
-20 to 60
Type
3-Way Self-Grounding Standard Traditional
Dimensions
1.32 in W x 1.53 in D x 4.2 in H
Switch 1 Type
120 Volt AC 15 Amp 3-Way with Self-Grounding Toggle
Switch 2 Type
120 Volt AC 15 Amp 3-Way with Self-Grounding Toggle
Amperage Rating
15
Features
  • Low profile, less than 1 in
  • Self-grounding feature is standard
  • Combination devices provide compact switches in a 1-gang opening
  • Smooth toggle action
  • Multiple drive Slot/Phillips®/Robertson head screws
  • Hi-visibility yellow base for easy installation
  • (2) 3-way switch
  • Snap switch action
HUBKEL_RC101_CAD
HUBKELE03309_X11_X13
HUBKELINST00296
Wiring_Device_Kellems_RC101_Full_Engineering_Drawing
IDW_DOCUMENT_f79102d44337b42f1ec49aba2338806b513777d5f055fed251977490ed4f3c70
IDW_DOCUMENT_cafdf4564fc83db9be6a36fbd251f749b1e3fd5d754a946c2aff7aca2022579a
IDW_DOCUMENT_dc11ca8384960fc87b1750f58391daa3f7c8a3793a511cbde8e3995be3d9b941
