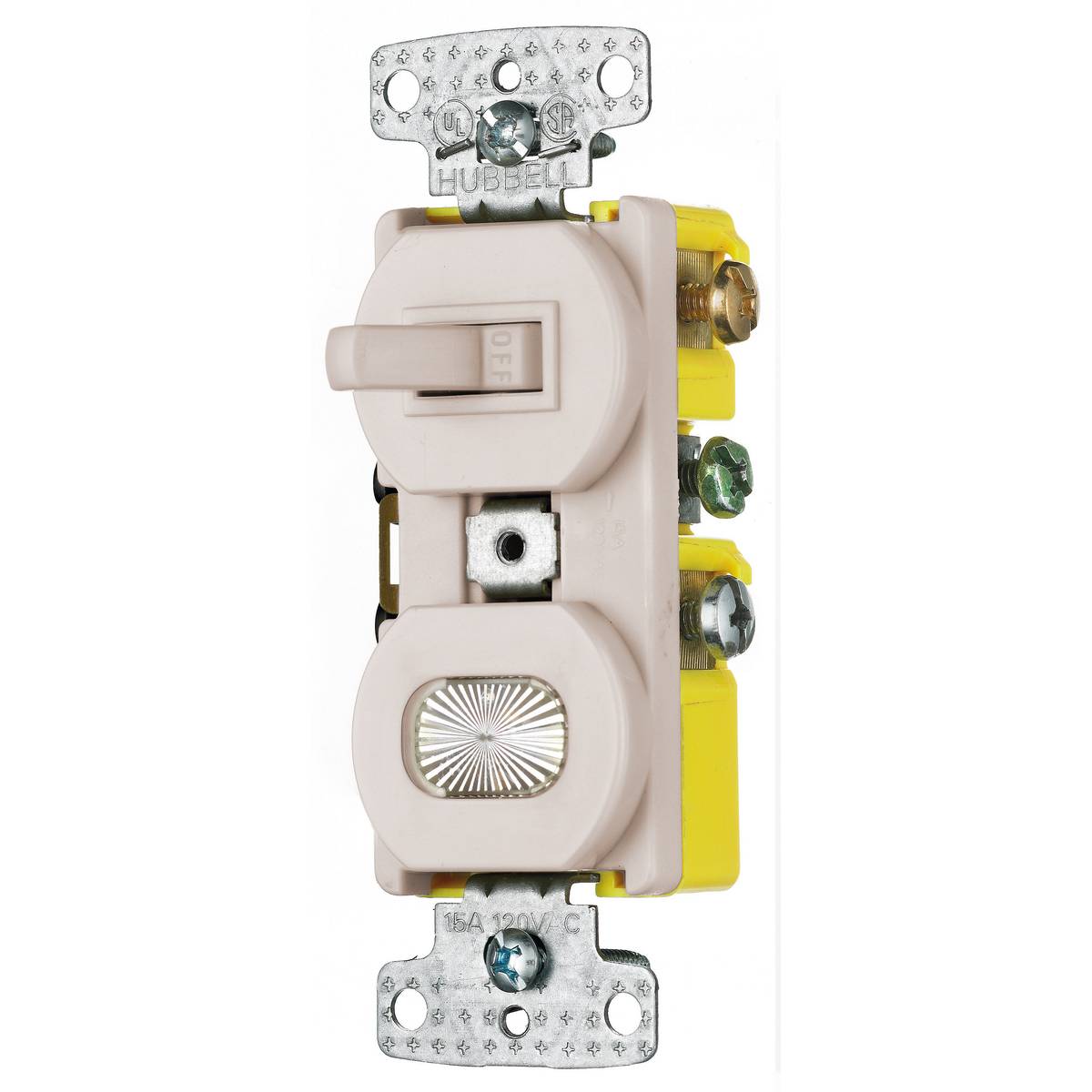

Wiring Device-Kellems RC109LA Self-Grounding Standard Combination Toggle Switch, 120 VAC, 15 A, 1875 W

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

120 VAC, 15 A, 1-Pole Toggle, Light Almond, Self-Grounding, Duplex, Combination Switch and Pilot Light

Wiring Device-Kellems, RC109LA, Combination Toggle Switch, Self-Grounding Standard, 120 VAC, 15 A, 1875 W Wattage, 1 Pole, Amber Neon Pilot Lamp, 2-Position Contact Configuration, 15 A at 120 VAC Contact, Snap Action, Threaded Mounting, Side Wire Terminal, -20 to 60 deg C, Composite, Light Almond, 1.32 in W x 1.53 in D x 4.2 in H Dimensions
MFG #: RC109LA

EECO #: HURC109LA

Brand: Wiring Device-Kellems
UPC #: 883778119095
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Color
Light Almond
UNSPSC
39122231
Wiring
Side
Approval
UL, CSA
Material
Composite
Lamp Type
Amber Neon Pilot
Application
Circuit Control and Indication Residential Applications
Terminal Type
Side Wire
Contact Rating
15 A at 120 VAC
Voltage Rating
120
Mounting
Threaded
Temperature Rating
-20 to 60
Contact Configuration
2-Position
Type
Self-Grounding Standard
Wattage
1875
Dimensions
1.32 in W x 1.53 in D x 4.2 in H
Switch Type
120 Volt AC 15 Amp 1-Pole Toggle with Self-Grounding
Amperage Rating
15
Pilot Light Type
120 Volt AC 15 Amp with Clear Lens Amber Neon Bulb Self Grounding
Features
  • Quiet snap action mechanism
  • Self-grounding staple is standard
  • Elongated strap with continuous plaster ears
  • Low profile, <1 in D
  • Self-grounding feature is standard
  • Mini-toggles provide for multiple switches in a compact single gang
  • Maximize control while maintaining function and appearance
  • Combination devices provide compact switches in a 1-gang opening
  • Multiple drive slot/Phillips/Robertson head screw
  • Hi-visibility yellow base for easy installation
  • Zinc plated steel bridge, center fastener and mounting screws
  • Brass rocker contacts and terminal
  • Plastic base, cover, toggle, spring housing and washers and steel spring
  • Traditional switch and amber pilot light
  • Combination of (1) 1-pole toggle, (1) pilot light
