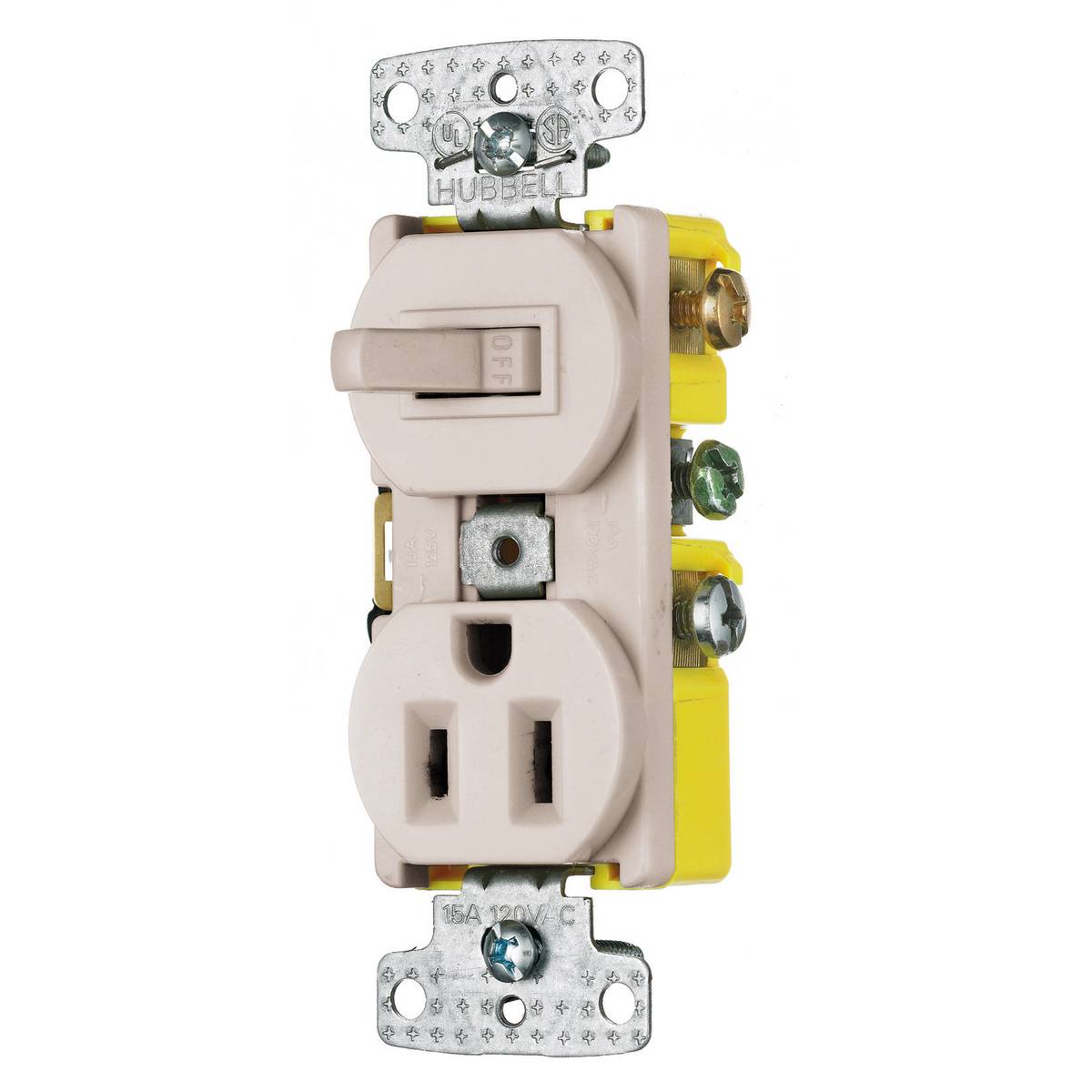

Wiring Device-Kellems RC108LA Traditional Standard Traditional Switch and Receptacle Combination Device, Electrical Ratings: 120/125 VAC, 15 A, 1800 W, 1 Poles, 3 Wires, Snap Switch Reset

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

120 VAC, 15 A, 1-Pole Toggle Switch, NEMA 5-15R 2-Pole 3-Wire Receptacle, Light Almond, Self-Grounding, Duplex, Combination Switch and Receptacle

Wiring Device-Kellems, RC108LA, Standard Traditional Switch and Receptacle Combination Device, Series: Traditional, 120/125 VAC, 15 A, 1800 W Electrical Rating, 1 Pole, 3 Wires, NEMA 5-15R Enclosure, Threaded Mounting, Self-Grounding Grounding Style, Snap Switch Reset, Residential Grade, Side Wire Terminal, Composite, Light Almond, 4.2 in H x 1.32 in W x 1.46 in D Dimensions
MFG #: RC108LA

EECO #: HURC108LA

Brand: Wiring Device-Kellems
UPC #: 883778119088
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Color
Light Almond
UNSPSC
39122231
Wiring
Side
Approval
UL, CSA
Material
Composite
Reset Type
Snap Switch
Application
Indoor Dry Environment
Terminal Type
Side Wire
Voltage Rating
120 Volt AC
Number of Wires
3
Mounting
Threaded
Enclosure
NEMA 5-15R
Type
2-Position Standard Traditional
Grade
Residential
Series
Traditional
Dimensions
4.2 in H x 1.32 in W x 1.46 in D
Switch Type
120 Volt AC 15 Amp 1-Pole Toggle with Self-Grounding
Grounding Style
Self-Grounding
Features
  • Low profile, <1 in D
  • Combination devices provide compact switches in a 1-gang opening
  • High visibility yellow base for easy installation
  • Maximize control while maintaining function and appearance
  • Hi-visibility yellow base for easy installation
  • Elongated strap with continuous plaster ears
  • (1) 1-pole toggle, (1) single receptacle
  • 15 A at 120 VAC switch, 15 A at 125 VAC receptacle
  • 1-pole switch, 2-pole, 3-wire receptacle
  • Self-grounding feature is standard
  • Smooth toggle action
  • Multiple drive Slot/Phillips®/Robertson head screws
  • -20 to 60 deg C operating temperature without impact
  • 2-pole receptacle
  • Snap switch action
  • Two position contact configuration
  • 30000 minimum operating cycles
  • Silver switch contacts, zinc plated steel bridge, center fasteners and mounting screw, plastic base, cover, toggle, spring housing and washers
  • Stainless steel grounding spring, brass rocker contact and terminal, steel spring
